Choosing the right dozer size for your construction project can be overwhelming. With so many different models and sizes available, selecting the one that meets your needs effectively can be difficult. The wrong choice may lead to inefficiency, increased costs, and delays.
Without the proper bulldozer, you risk compromising project timelines, driving up operational costs, and facing productivity setbacks. Selecting the wrong size or type can lead to unnecessary repairs, higher fuel consumption, or even safety risks on the job site.
In this guide, we’ll help you navigate through the key factors to consider, including essential specifications and bulldozer sizes, ensuring you choose the best fit for your specific construction needs. With the right bulldozer, you can improve productivity, reduce costs, and enhance project efficiency.
1. Why Is It Important to Choose the Right Bulldozer?
You need to consider the horsepower, size, blade, and the overall size of the machine to ensure it meets the demands of the job at hand. Working with the right piece of equipment for the project will make everything go a lot smoother.
A bulldozer that’s too large for the project may lead to underutilization, higher fuel consumption, and unnecessary wear and tear, whereas one that is too small might struggle with heavy-duty tasks and slow down the overall work pace.
Knowing those few key factors when it comes time to select a bulldozer for your project helps you choose the right one to do the job you need to do. This way, you can have a more effective operation, keep your operating costs down, and get your project done more efficiently.
2. Understanding the Key Factors for Choosing a Bulldozer
When choosing the right bulldozer, several factors need to be considered:
2.1 Project Type
The type of construction project you’re working on will heavily influence your bulldozer choice. For instance:
- Land Clearing: If you are clearing larger areas and you don’t have very many obstacles, then you’ll want a bigger, more powerful bulldozer with more robust tracks and blades.
- Fine Grading: If you’re doing a lot of precision grading, then you need a smaller bulldozer with precise control and a blade that you can adjust.
- Road Construction: For road building, you’d go with medium-sized dozers because they have good maneuverability and can pick up heavy objects with the blade.
- Mining and Heavy Excavation: In a mining application, you’re going to want big bulldozers because you need a lot of horsepower to move all that dirt out.
2.2 Terrain and Site Conditions
Bulldozers are used in various terrain types, and you must choose a machine suited for the environment:
- Soft Ground: Wide tracks are preferable for soft, wet, or muddy conditions because they provide better flotation and prevent the bulldozer from sinking.
- Rocky Terrain: If you’re in a tough bright or very rocky area, you want a bulldozer with better undercarriage protection and a bigger engine.
- Urban Areas: In urban construction environments, you’d want a small bulldozer that could fit down a city street without tearing things up, and it isn’t so bulky that you can’t fit it anywhere.
2.3 Horsepower and Engine Power
- Small Dozers: Typically under 100 horsepower, these are suited for light tasks such as landscaping and small-scale grading. Examples include the CAT D3K2 and Komatsu D39EX-24.
- Medium Dozers: Ranging from 100 to 200 horsepower, these bulldozers are versatile and suitable for most construction tasks. Examples include the CAT D6T and Komatsu D61EX-24.
- Large Dozers: These are powerful machines with over 200 horsepower, designed for heavy-duty tasks like mining and large-scale earthmoving. Popular models include the CAT D11T and Komatsu D375A-8.
3. Dozer Size Categories
Bulldozers come in different sizes, each suited to specific tasks. Here’s an overview of the various size categories:
3.1 Small Dozers (Under 100 HP)
- Applications: Maybe you need a bulldozer to dig around a tree, build a water tank location, landscaping on a small-scale, some light grading, or trenching, and clearing some debris.
- Advantages: Then you want something that’s very mobile and easy to transport. Something very maneuverable. You want something that’s going to be very fuel-efficient and handy to have around. Maybe something you can float from job to job. You may have something that doesn’t have a real heavy workload.

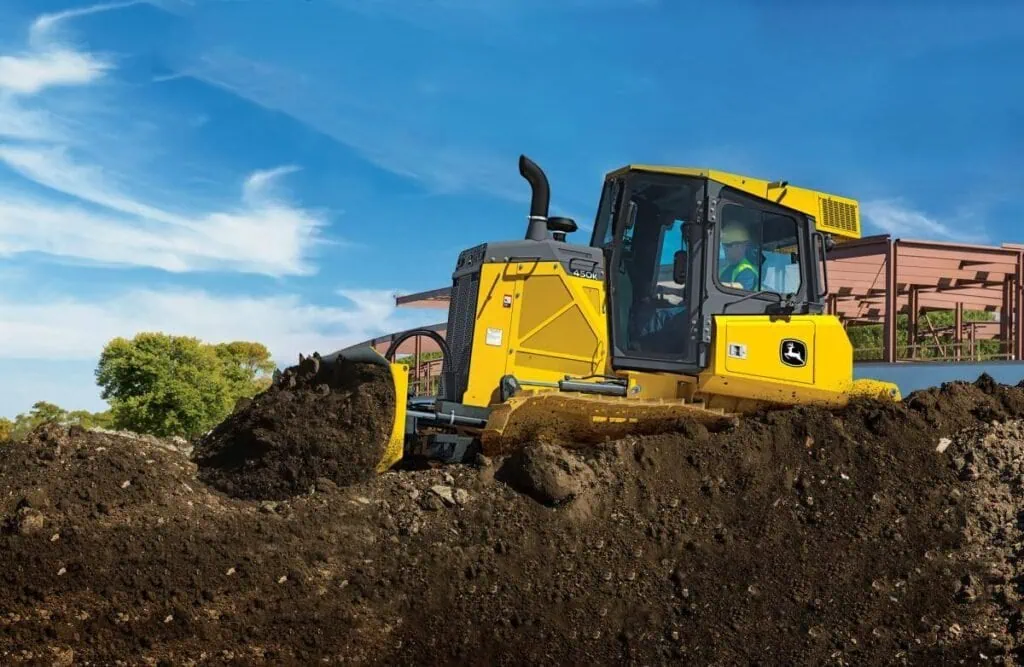

- Examples: CAT D3K2, John Deere 450K, Kubota KX080-4.
3.2 Medium-Sized Dozers (100–200 HP)
- Applications: Road construction, medium excavation, and grading projects.
- Advantages: The medium-sized bulldozer is right in the middle of the road. They offer a great balance of power and agility. These are the dozers that most people end up buying because they want a general-purpose bulldozer for construction sites.
- Examples: CAT D6T, Komatsu D61EX-24, Volvo EC950F Crawler.
3.3 Large Dozers (Over 200 HP)
- Applications: Heavy excavation, mining, and large-scale earthmoving.
- Advantages: On the opposite scale are large bulldozers with large engines, transmissions, and general physical size. These dozers can handle tough, heavy-duty projects like moving materials for building large pads or taking on smaller miners or ditching contractors to improve their efficiency and productivity.
- Examples: CAT D11T, Komatsu D375A-8, CASE 2050M.
4. Key Specifications to Consider When Choosing a Bulldozer
To ensure you choose the right bulldozer for your project, pay attention to the following specifications:
4.1 Blade Type and Size
The second most important component on a bulldozer is the blade. Blades have different types and sizes for different tasks. (Which is the subject of this post.):
- Straight Blade (S-Blade): You’ve seen ads for the light dozers that are small. They call them finish dozers because you can fine grade and level with them. You see them most often with small and medium-sized bulldozers.
- Universal Blade (U-Blade): The next style of blade is an SU blade. These blades have more capacity and are good when you need to move a lot of material. They’re on the larger bulldozer sizes.
- Semi-U Blade: The third style of blade is an S/U blade. This blade is a hybrid model between the S and U blade. It gives you some flexibility to use the blade for several different tasks.
4.2 Track vs. Wheeled Dozers
- Tracked Dozers: Ideal for rough terrain and heavy-duty applications. Tracked dozers distribute the weight evenly and can work in soft or muddy conditions.
- Wheeled Dozers: More suited to urban areas or smooth, flat surfaces where maneuverability and speed are important.
4.3 Operating Weight and Lift Capacity
Larger dozers can lift and move more material. For instance, a large dozer like the CAT D11T can move 90,000+ lbs of material per pass, while a smaller dozer like the CAT D3K2 might only handle 10,000 lbs.
4.4 Hydraulic Systems
Nowadays, most blade controls are hydraulic, along with any attachments you add to the dozer. The more advanced the hydraulic system, the more control you have. The more control you have, the better off you are fine grading and finishing work.
5. Budget Considerations: New vs. Used Bulldozers
When it comes to making a decision on a bulldozer, your budget is going to be a major consideration. Let’s break down the pros and cons of it.:
5.1 New Bulldozers
- Advantages: The Advantage is if you buy the latest technology, you get the full five-year, 5,000-hour warranty. Modern equipment has an estimated lifespan of ten thousand hours.
- Disadvantages: The disadvantage is, they cost thousands of dollars more upfront.
- Ideal For: For example, large projects that have a long timeline.
5.2 Used Bulldozers
- Advantages: Lower purchase cost, quicker return on investment.
- Disadvantages: Higher maintenance costs, possible wear and tear.
- Ideal For: Shorter-term projects or businesses with a smaller budget.
6. How to Maintain and Get the Most Out of Your Bulldozer
To maximize the lifespan of your bulldozer and ensure its smooth operation, regular maintenance is essential:
- Track Maintenance: Inspect tracks regularly for wear and tear, and ensure they are properly aligned.
- Hydraulic System Checks: Ensure the hydraulic oil is clean and free of contaminants to prevent system failures.
- Engine Care: Regular oil changes and engine checks will help extend the bulldozer’s life.
7. Top Dozer Brands to Consider
A brand can have a huge impact on the performance and reliability of the machine and the maintenance cost when it comes to choosing a bulldozer. Here are some of the top dozer brands known for you to for their quality constructions:
7.1 Caterpillar (CAT) Bulldozer
Caterpillar is one of the most recognized names in the heavy machinery industry, and their bulldozers are no exception. Known for their durability, advanced technology, and powerful engines, CAT dozers are designed to handle a variety of tough construction jobs. Some of the most popular models include:

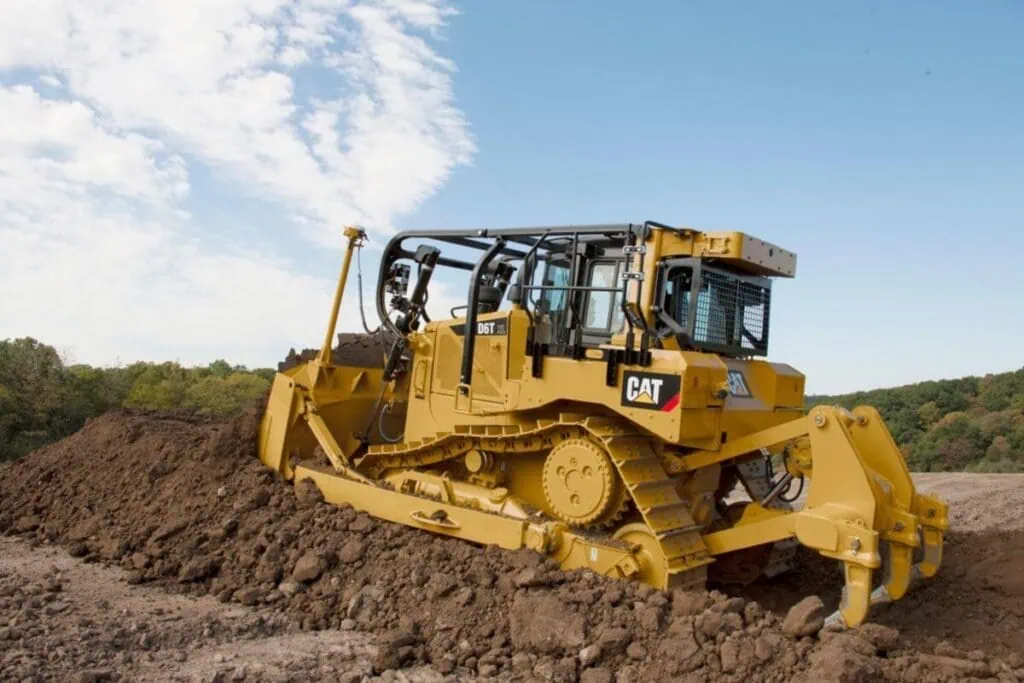

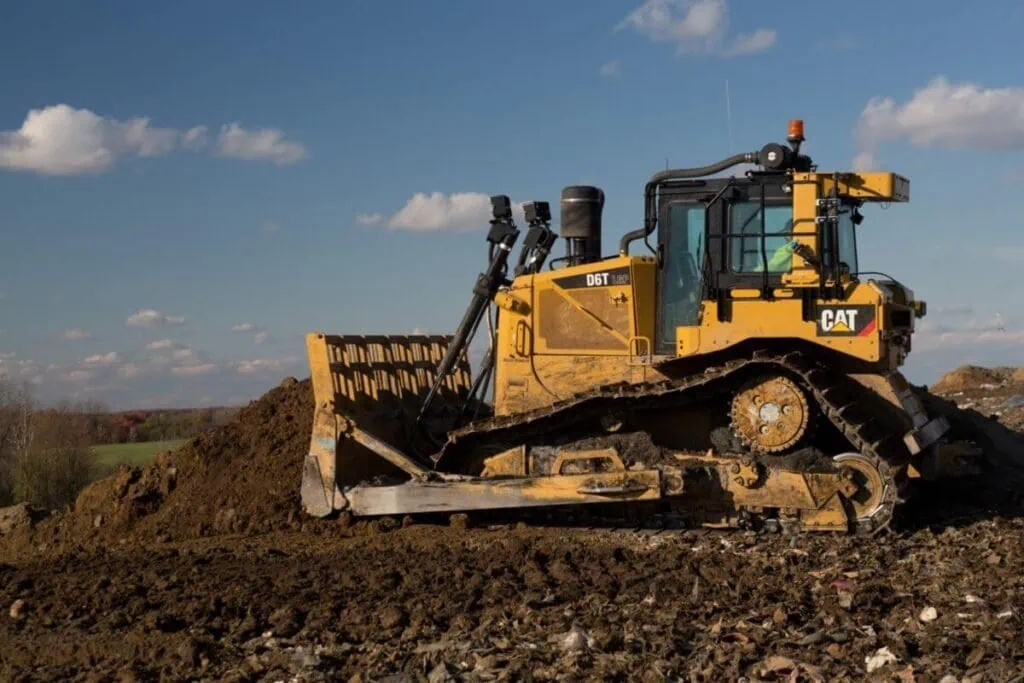

- CAT D6T: Perfect as a medium-sized dozer that has a combination of power and agility; it is excellent for construction, mining, and general earthmoving.

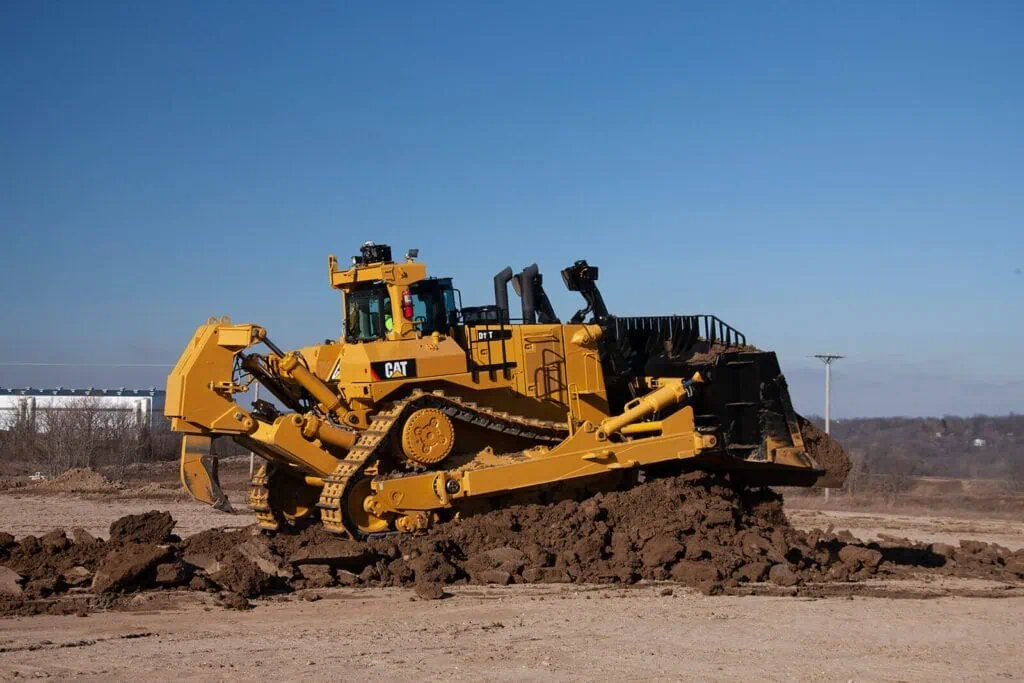

- CAT D11T: A large dozer built for the toughest jobs, with exceptional pushing power and excellent reliability.
Here’s a general CAT Dozer Size Chart based on the various series and models offered by Caterpillar. The chart includes the typical operating weight, engine power, and other key specs for different CAT dozer models:
| Model | Engine Power | Operating Weight | Blade Capacity | Track Type | Applications |
| CAT D3K2 | 80 kW (107 hp) | 7,040 kg (15,500 lbs) | 1.94 m³ (2.54 yd³) | Standard | Small to medium construction work |
| CAT D5K2 | 104 kW (139 hp) | 11,250 kg (24,800 lbs) | 2.47 m³ (3.23 yd³) | Standard | Grading, trenching, and finishing |
| CAT D6K2 | 142 kW (190 hp) | 16,700 kg (36,800 lbs) | 3.02 m³ (3.95 yd³) | Standard | Mid-sized construction, road work |
| CAT D6T | 205 kW (275 hp) | 20,000 kg (44,000 lbs) | 4.56 m³ (5.95 yd³) | Crawler | Heavy earthmoving, mining |
| CAT D7R | 242 kW (325 hp) | 22,000 kg (48,500 lbs) | 5.6 m³ (7.3 yd³) | Crawler | Large-scale excavation and grading |
| CAT D8T | 272 kW (365 hp) | 28,000 kg (61,700 lbs) | 6.8 m³ (8.9 yd³) | Crawler | Major earthmoving, mining |
| CAT D9T | 335 kW (450 hp) | 42,000 kg (92,500 lbs) | 9.3 m³ (12.1 yd³) | Crawler | Large mining and construction tasks |
| CAT D10T2 | 402 kW (538 hp) | 48,000 kg (105,800 lbs) | 11.7 m³ (15.3 yd³) | Crawler | Heavy mining, large-scale grading |
| CAT D11T | 503 kW (673 hp) | 54,000 kg (119,000 lbs) | 13.3 m³ (17.4 yd³) | Crawler | Large mining and heavy operations |
| CAT D11 XE | 503 kW (673 hp) | 54,500 kg (120,000 lbs) | 13.3 m³ (17.4 yd³) | Crawler | Ultra-heavy earthmoving, mining |
Key Notes:
- Operating Weight: Includes the weight of the dozer with standard equipment (tracks, blade, etc.) but does not account for optional attachments or extra configurations.
- Blade Capacity: Refers to the amount of material the blade can move in a single pass. Larger blades are generally used for heavy-duty tasks and larger operations.
- Track Type: Some models come with different track options depending on whether you need more flotation or greater traction for specific terrains.
When selecting a CAT dozer, it’s important to consider the specific requirements of your project, such as terrain type, material to be moved, and the dozer’s overall power and size.
7.2 Komatsu Bulldozer
Komatsu bulldozers are known for their fuel efficiency and advanced features for a good balance of power, performance, and fuel economy. They get high marks for user-friendly design and robust engine options. Here are some popular Komatsu bulldozer models:
- Komatsu D61EX-24: A versatile, medium-sized dozer, ideal for grading and construction projects.
- Komatsu D375A-8: A large dozer with significant power, designed for mining and heavy-duty excavation.
7.3 John Deere Bulldozer
John Deere is another well-established brand known for its reliable and durable bulldozers. They offer machines with intuitive controls and long-lasting performance, making them a good choice for a wide range of applications.
- John Deere 650K: A compact bulldozer with great versatility for smaller to mid-sized projects.
- John Deere 950K: A larger dozer that excels in high-production environments, such as road construction and large-scale grading.
7.4 CASE Construction
CASE bulldozers are known for their innovation, performance, and low operating costs. Their equipment is built with a focus on productivity and ease of maintenance, which makes them ideal for both large and small construction jobs.
- CASE 570N EP: A compact dozer that provides a great balance of power and efficiency for light to medium tasks.

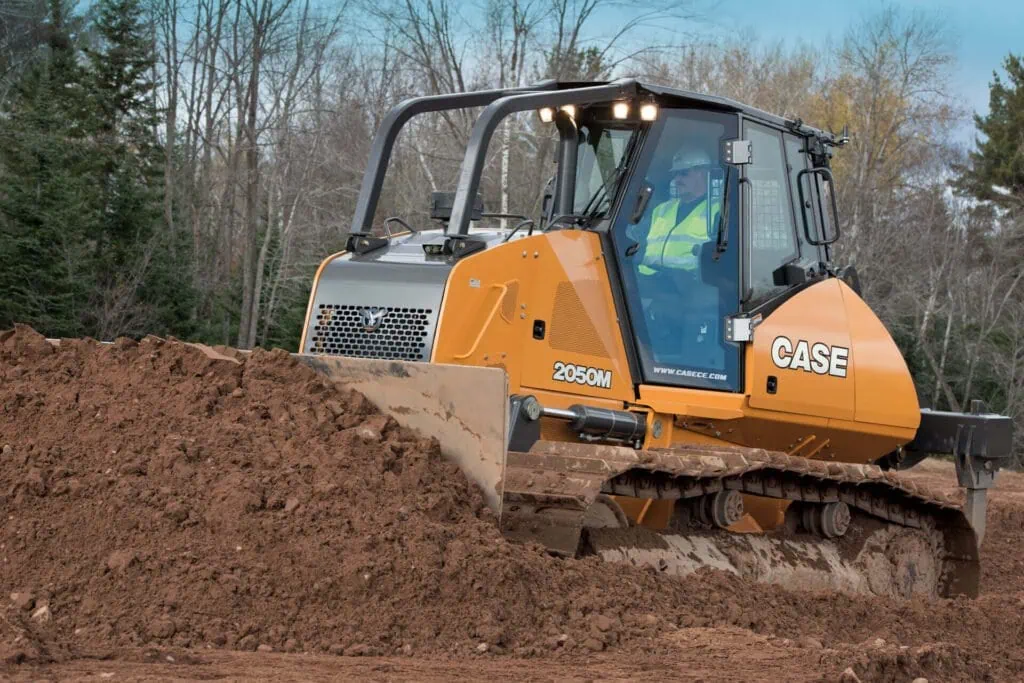

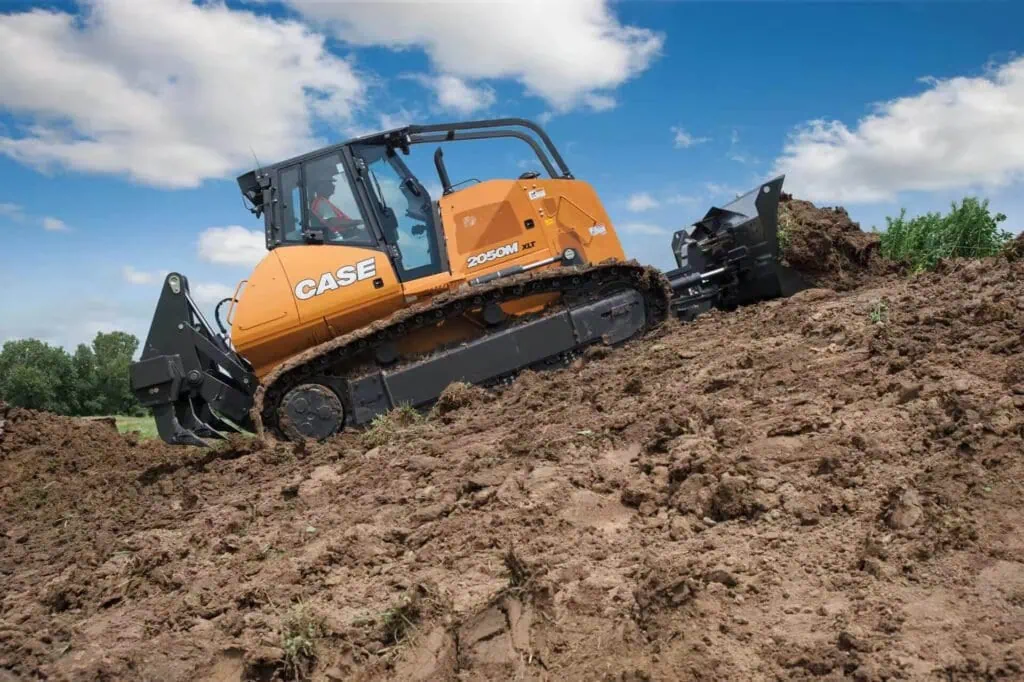

- CASE 2050M: A powerful, heavy-duty dozer designed to handle the toughest excavation and mining jobs.
7.5 Volvo Bulldozer
Volvo bulldozers offer exceptional comfort and reliability, making them a favorite in road construction, grading, and other heavy-duty applications. Known for their fuel-efficient engines and operator-friendly cabins, Volvo dozers can help improve productivity.
- Volvo EC950F Crawler Dozer: A versatile model that offers a blend of efficiency and power for mid-sized projects.
- Volvo EC950F Crawler: A large dozer designed for high-performance grading and heavy construction tasks.
7.6 Liebherr Bulldozer
Liebherr is a top manufacturer of high-performance bulldozers that are built for heavy-duty tasks. Known for their robust construction and innovative design, Liebherr dozers are frequently used in mining, earthmoving, and large construction projects.
- Liebherr PR 736: A mid-size dozer designed for precision grading and moving large amounts of material.
- Liebherr PR 776: A heavy-duty dozer that offers exceptional performance for the most demanding excavation projects.
8. Understanding Bulldozer Attachments
Bulldozers can be fitted with a variety of attachments to enhance their capabilities and versatility. Some of the most common bulldozer attachments include:
8.1 Rippers
Rippers are used to break hard ground, hard rock, or in any place you need to break up hard materials. Mounted on the back of a bulldozer, they are great for land clearing, mining, and excavation applications. They allow you to break up hard ground and rip through tough strata to get the ground ready for further processing.
8.2 Blades
The blade is the main tool for moving dirt. You can use different types of blades to move different kinds of earth, depending on the type of work you’re doing:
- Straight Blade (S-Blade): Primarily used for fine grading.
- Universal Blade (U-Blade): Used for carrying large amounts of material and is more efficient for rough grading tasks.
- Semi-U Blade: A compromise between the S and U blades, it’s great for general purpose tasks.
8.3 Winches
Winches are used for pulling or lifting heavy stuff. They can be an excellent addition for jobs where you have to lift or pull or position large objects on the job site.
8.4 Forestry Attachments
Specialized attachments can include equipment like brush cutters, mulchers, or logging forks that allow a bulldozer to more effectively handle land clearing or forestry work.
9. Safety Tips When Operating a Bulldozer
Safety is a significant consideration when operating a bulldozer. These machines can be dangerous if not used properly. Let me share some operator safety tips to ensure you and your team make it safely through your workday:
9.1 Proper Training and Certification
Before operating a bulldozer, operators should undergo proper training to understand the mechanics of the machine, controls, and best practices. Ensure that all operators are certified and knowledgeable about the bulldozer’s safety features.
9.2 Pre-Operation Checks
Perform a thorough pre-operation inspection before using the bulldozer. Check key components like the tracks, hydraulic systems, fuel levels, and blade conditions. Ensure that there are no leaks, malfunctions, or other issues that could cause a breakdown during operation.
9.3 Wear Proper Safety Gear
Ensure the operator wears appropriate safety gear, including a hard hat, protective gloves, high-visibility vest, and steel-toed boots.
9.4 Adhere to Safety Protocols
Follow all safety protocols established for the construction site, including speed limits, equipment positioning, and communication with ground personnel. Ensure clear lines of sight and avoid working in blind spots.
9.5 Avoid Overloading the Bulldozer
Bulldozers have a maximum weight capacity that should not be exceeded. Overloading the machine can result in decreased performance, damage to the bulldozer, and increased risks of accidents.
10. Conclusion: Selecting the Right Dozer for Your Needs
Choosing the right bulldozer for your project requires a deep understanding of your job’s requirements and the machine’s specifications. By considering the bulldozer’s size, power, attachments, and brand, you can ensure optimal performance and cost-efficiency for your construction project. Whether you opt for a small, medium, or large dozer, make sure it is tailored to the task at hand.
By also factoring in important considerations like terrain, fuel consumption, and safety, you’ll be able to maximize productivity while minimizing risks. If you’re uncertain about which bulldozer is best for your project, consult with an equipment supplier or expert who can provide guidance on selecting the ideal machine.
At HIOSEN, we offer a wide range of used and new bulldozers to fit your construction needs. Our machines come with competitive pricing and are maintained to ensure optimal performance. Contact us for more information or assistance in choosing the right bulldozer for your upcoming project.
