Excavation work is a critical aspect of many construction projects, but it carries significant safety risks. One of the most dangerous hazards is the potential collapse of excavation sides, which can lead to severe injuries, fatalities, and costly project delays.
Without proper excavation shoring, workers are exposed to the risk of trench collapses, which can cause serious injuries or even fatalities. Moreover, the integrity of nearby structures and the overall project could be compromised, leading to delays and increased costs.
Excavation shoring is a vital safety measure to prevent soil collapse and protect both workers and the surrounding environment. In this article, we’ll delve into the importance of shoring, the different types available, and why it’s essential to make it a non-negotiable part of your construction safety plan.
1. What Is Excavation Shoring?
Without shoring, workers are placed at serious risk should the walls of the trench collapse. In addition to the potential loss of life that could occur, a trench collapse can also result in financial liabilities for construction business owners. This includes fines assessed for non-compliance with safety regulations, worker’s compensation claims if someone is injured, or direct legal action if someone is killed. Therefore, shoring is a no-brainer expense for any excavation.
Shoring can be applied to various forms of excavation work, including:
- Trenches: Narrow and deep excavations.
- Sloped Excavations: Excavations that require sloped sides for support.
- Foundation Excavations: Digging for the base of a building or structure.
2. Why Is Excavation Shoring Important?
Excavation shoring is not just a precaution; it is a requirement by law in many countries. The importance of shoring can be broken down into several key benefits:
2.1 Preventing Cave-Ins and Collapses
Shoring also protects nearby structures from damage by preventing the excavated area from expanding and encroaching on buildings or other infrastructure. Finally, shoring can help prevent soil erosion and protect against water damage during excavation work.
2.2 Protecting Workers’ Lives
Safety is always a priority on construction sites. Trench and excavation collapses are among the top causes of fatalities in the construction industry. By implementing the right shoring systems, the risk of cave-ins is significantly reduced, thus preventing harm to the workers involved.
2.3 Protecting Nearby Structures and Property
In some cases, excavations are done near existing buildings, utilities, or roads. If the excavation collapses, it can also damage these nearby structures. Shoring helps mitigate that risk by securing the excavation area and preventing surrounding property from being affected.
2.4 Legal Compliance
Regulatory bodies like OSHA in the U.S. require that excavation sites meet certain safety standards, including the use of shoring to prevent accidents. By using shoring methods, builders ensure that they comply with these regulations, reducing the risk of fines, penalties, and legal issues.
3. Types of Excavation Shoring Systems
There are several different types of shoring systems available, each designed for specific site conditions and excavation requirements. Choosing the right type of shoring depends on factors such as excavation depth, the type of soil, and the presence of groundwater.
3.1 Hydraulic Shoring
Hydraulic shoring uses hydraulic pressure to support the walls of an excavation. This method involves placing hydraulic jacks or struts between the trench walls to create a secure and stable environment. The advantage of hydraulic shoring is that it is adaptable and can be adjusted as excavation depth changes, making it ideal for deeper excavations.
Advantages:
- Easy to install and adjust
- Suitable for deep excavations
- Requires less space compared to some other methods
Common Applications:
- Deep trench excavations
- Tight or confined spaces where other shoring methods may not be feasible
3.2 Timber Shoring
Timber shoring involves using wooden beams and planks to support the excavation. Although it’s a traditional method, it’s still used today for smaller and shallower excavations. It’s an economical choice but may not be as durable or adjustable as other shoring systems.
Advantages:
- Low cost
- Readily available materials
- Suitable for shallow excavations
Common Applications:
3.3 Soldier Piles and Lagging
Soldier piles are vertical steel beams driven into the ground along the perimeter of the excavation. Horizontal lagging is then placed between these piles to form a wall that supports the excavation. This method is highly effective for deep excavations and can handle heavy soil pressure.
Advantages:
- Strong and durable
- Ideal for deep excavations
- Can be used in conjunction with other shoring methods
Common Applications:
- Urban excavation projects
- Construction sites near buildings or roads

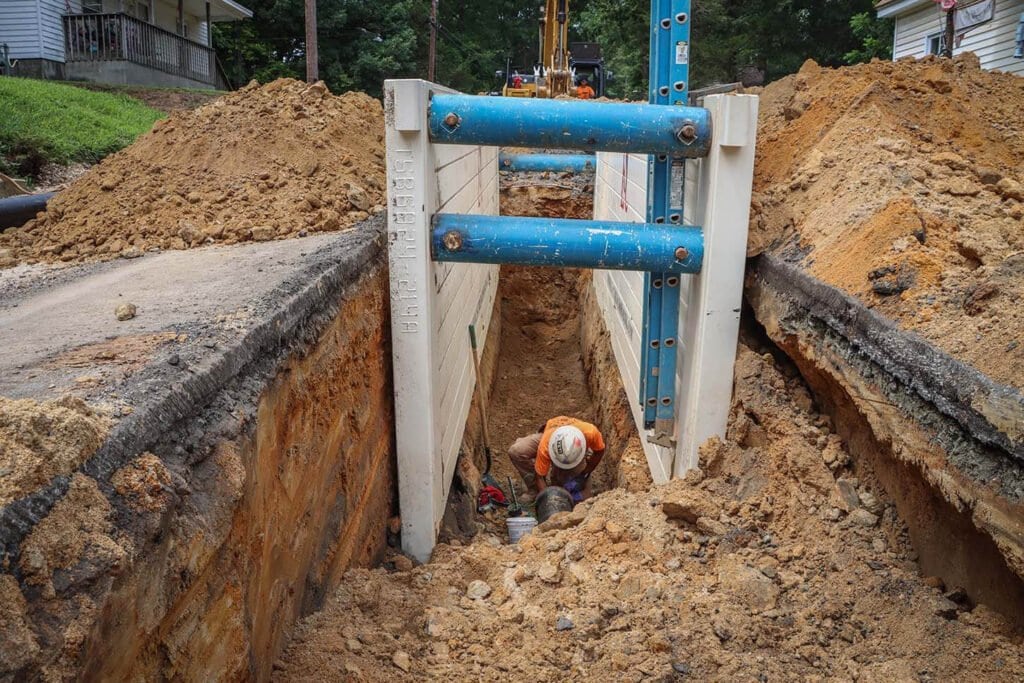

3.4 Trench Boxes (Shoring Boxes)
Trench boxes are pre-assembled steel or aluminum boxes designed to fit into a trench and protect workers from collapse. They are placed directly into the trench and provide a secure working space. These boxes are portable and easy to set up.
Advantages:
- Easy to install and remove
- Provides complete protection for workers inside the trench
Common Applications:
- Smaller trench projects
- Areas where workers need to enter the trench

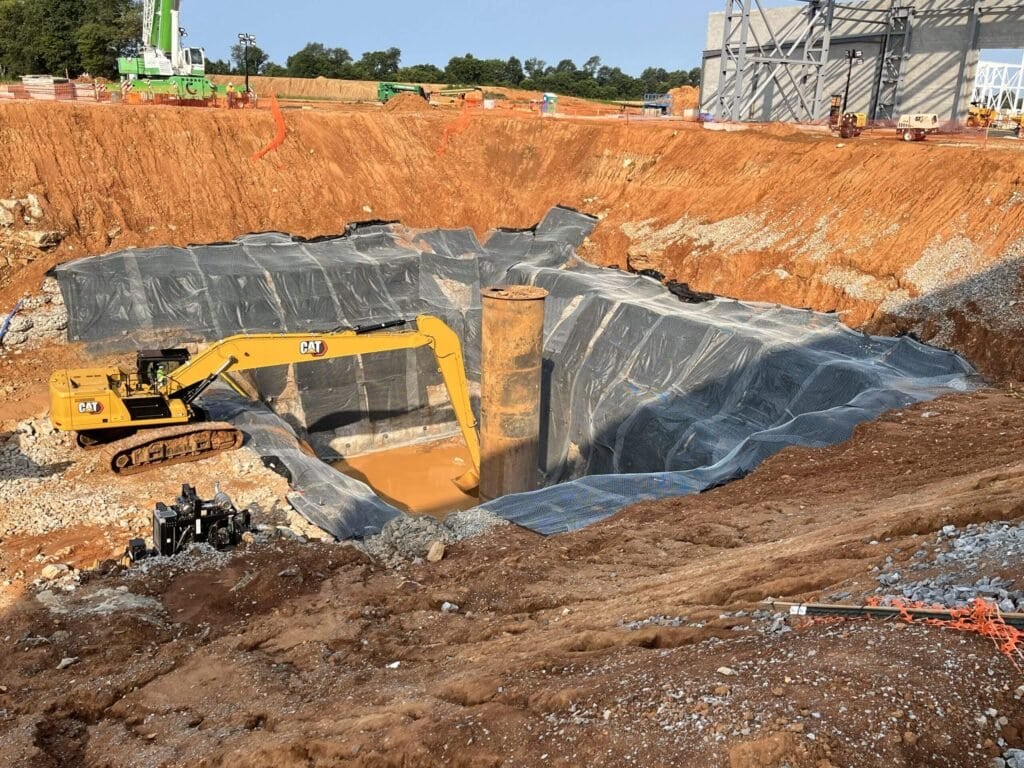

3.5 Sloping and Benching
Sloping involves cutting the excavation walls at a safe angle to prevent collapse. Benching, on the other hand, involves creating a series of steps or levels to stabilize the walls. Both methods are often used together for shallow excavations.
Advantages:
- Simple and cost-effective
- No need for additional equipment
Common Applications:
- Shallow excavations
- Smaller projects with stable soil
4. How Excavation Shoring Works: The Process
To ensure maximum safety, excavation shoring follows a structured process:
4.1 Assessment
Before shoring can begin, it’s essential to assess the site to determine soil conditions, excavation depth, and any external risks. This allows for the selection of the most suitable shoring method.
4.2 Shoring Installation
Once the method has been chosen, the installation of the shoring system begins. This may involve placing timber beams, installing hydraulic jacks, or assembling trench boxes, depending on the chosen system.
4.3 Excavation
After the shoring is in place, excavation can begin. The shoring system supports the walls of the excavation, reducing the risk of collapse as digging progresses.
4.4 Inspection
Throughout the excavation process, regular inspections are necessary to ensure the stability of the shoring system. If conditions change (e.g., wet soil or shifting ground), the system may need to be adjusted or reinforced.
5. Best Practices for Excavation Shoring
To get the most out of your excavation shoring system and ensure maximum safety, follow these best practices:
5.1 Proper Planning
Planning ahead is crucial to ensure that the excavation shoring system is selected based on site conditions. Take the time to assess the soil type, depth, and any environmental conditions that may affect stability.
5.2 Regular Inspections
Regular inspections are critical during excavation. Make sure that the shoring system remains intact, and make adjustments if necessary. Keeping an eye on the trench’s sides and bottom for any signs of instability can prevent accidents.
5.3 Qualified Professionals
Only qualified professionals should install and maintain shoring systems. The expertise of the crew ensures that the shoring system is properly designed, installed, and maintained according to safety standards.
6. Common Mistakes in Excavation Shoring and How to Avoid Them
While excavation shoring is crucial for ensuring safety, several common mistakes can occur during the process. Understanding these pitfalls and taking measures to avoid them can significantly improve the effectiveness of shoring systems and prevent costly errors.
6.1 Using Inadequate Materials
Using substandard materials for shoring systems can lead to catastrophic failures. Some builders may attempt to cut costs by using lower-quality wood, steel, or aluminum, assuming they’ll suffice for the job. However, improper material choice compromises the shoring system’s integrity and increases the risk of collapse.
How to Avoid It:
- Always use materials that meet or exceed the standards outlined in relevant safety regulations and guidelines.
- Consider investing in high-quality, specialized shoring equipment that is designed for the type of excavation you’re performing.
6.2 Failing to Assess Soil Conditions Properly
Soil type and conditions play a critical role in the stability of an excavation. Failing to assess the soil properly before deciding on a shoring system can lead to instability. For example, loose, sandy soil may require a more robust shoring solution than dense, rocky soil.
How to Avoid It:
- Conduct a thorough site assessment before excavation begins.
- Hire a geotechnical engineer if necessary to assess the soil and determine the appropriate shoring method.
6.3 Overloading the Shoring System
Overloading the shoring system by placing too much weight or equipment on it can cause it to collapse. For example, if heavy machinery is placed too close to the edge of an excavation, the pressure can destabilize the shoring structure.
How to Avoid It:
- Ensure that machinery and equipment are placed at a safe distance from the excavation.
- Be mindful of the weight limits specified for each shoring system and avoid exceeding those limits.
6.4 Lack of Ongoing Inspections
Excavations are dynamic environments, and soil conditions, weather, and excavation depth can change over time. Failing to perform regular inspections of the shoring system during the project can lead to undetected weaknesses or failures.
How to Avoid It:
- Schedule daily inspections and after any significant changes in weather or excavation progress.
- Use professional inspectors who are trained to spot early signs of instability or damage.
7. Key Factors to Consider When Selecting an Excavation Shoring System
Choosing the right shoring system is a critical decision in ensuring the safety and efficiency of excavation projects. The type of shoring system you choose will depend on a variety of factors. Below are the key considerations to keep in mind:
7.1 Excavation Depth
The depth of the excavation plays a significant role in determining which shoring system is best. Shallow excavations often require less intensive shoring, such as sloping or trench boxes, whereas deeper excavations may require more complex methods like hydraulic shoring or soldier piles.
7.2 Soil Type
The type of soil in the excavation area will influence the stability of the excavation walls. Loose, sandy, or wet soils may require additional reinforcement and stronger shoring systems. In contrast, more stable, cohesive soils may require less intensive support.
7.3 Space Constraints
Sometimes, the space available around the excavation site is limited, especially in urban construction projects. If you have limited space, you’ll need a shoring system that can be easily installed and removed without affecting the surrounding area too much. In these cases, trench boxes or hydraulic shoring might be ideal.
7.4 Access to Equipment
The accessibility of the equipment required for shoring is another important factor. Hydraulic shoring systems, for example, can require heavy machinery for installation, while timber shoring may be simpler to implement with basic tools.
7.5 Budget and Project Timeline
The available budget and timeline for the project will influence the type of shoring system selected. While some shoring systems are more expensive, they may be necessary for larger or more dangerous excavations. Similarly, some systems are more time-consuming to set up, while others can be installed quickly to meet tight project deadlines.
8. Excavation Shoring and Environmental Considerations
Construction projects today face increasing pressure to minimize their environmental impact. Excavation shoring is no exception, and there are a few environmental considerations to keep in mind:
8.1 Reducing Soil Disturbance
Traditional excavation methods can cause significant disruption to the surrounding environment, especially in sensitive areas. Shoring can help reduce soil disturbance by providing stability to the excavation and limiting the amount of material that is displaced.
8.2 Minimizing Water Contamination
Shoring systems can also play a role in protecting groundwater and nearby water sources. Properly designed and maintained shoring can prevent water runoff or contaminants from entering water bodies near the excavation site.
8.3 Waste Management
While excavation shoring is essential for safety, the installation and removal of some systems can generate waste. Being mindful of materials that are reusable or recyclable can help mitigate the environmental impact of the project.
9. Conclusion: The Unseen Protector of Excavation Sites
Excavation shoring is often a behind-the-scenes hero in construction projects, ensuring that work can proceed safely and efficiently. By stabilizing the walls of an excavation, preventing soil collapse, and protecting workers, shoring is a crucial safety feature that should never be overlooked. Choosing the right type of shoring system, following safety regulations, and avoiding common mistakes will help you create a secure environment for your construction projects. Whether you are working on a small trench or a deep foundation excavation, shoring remains a key element in ensuring your project’s success.
By staying aware of potential hazards, taking the time to select the proper equipment, and maintaining the system throughout the project, builders can mitigate risks and help prevent accidents. With the right preparation, excavation shoring can provide peace of mind, knowing that both workers and surrounding structures are safeguarded.
