Excavators are at the heart of most construction projects with the excavator digging work, yet many people aren’t fully aware of how these powerful machines actually work. From excavator digging trenches to handling heavy materials, excavators are designed for precision and efficiency, but understanding the techniques that enable these tasks is key to using them effectively.
Without a clear understanding of how an excavator digs and what methods are involved, operators may struggle to achieve optimal results. Inefficient excavator digging can lead to delays, excessive fuel consumption, and even safety hazards on-site, potentially jeopardizing the success of your project.
In this article, we will break down the core functions of excavator digging, explore the techniques used for various tasks, and show you how these machines can be employed for maximum efficiency and safety. Whether you’re new to excavators or looking to improve your operational knowledge, understanding these techniques will help you make the most of this indispensable machinery.
1. Basic Functionality of Excavator Digging
Excavators are heavy-duty machines designed to perform various tasks, with excavator digging being one of their most important and primary functions. The machines are equipped with a robust arm, bucket, and hydraulic system to perform powerful excavation tasks. The core components involved in excavation include:
1.1 Boom: The boom is the large, extendable arm of the excavator responsible for lifting and lowering the bucket. It is typically powered by hydraulics, which provide the force necessary for these movements. The boom’s key role in the excavator digging process is to position the bucket over the dig site at the correct height, ensuring that digging can begin. In addition to its lifting and lowering functions, the boom also helps extend the reach of the bucket, allowing the excavator to work over wide areas and reach deeper excavation points.
1.2 Stick (Dipper): The stick is connected to the boom and serves as the link that extends the bucket outward and allows it to move backward and forward. This component helps achieve the necessary depth and reach for a variety of excavation tasks. The stick’s function enables the bucket to dig both deep and shallow into the ground, which is crucial for various types of construction and excavation activities. When excavator digging deeper trenches or accessing challenging sites, the stick’s flexibility and range of motion are essential in achieving accuracy and efficiency.

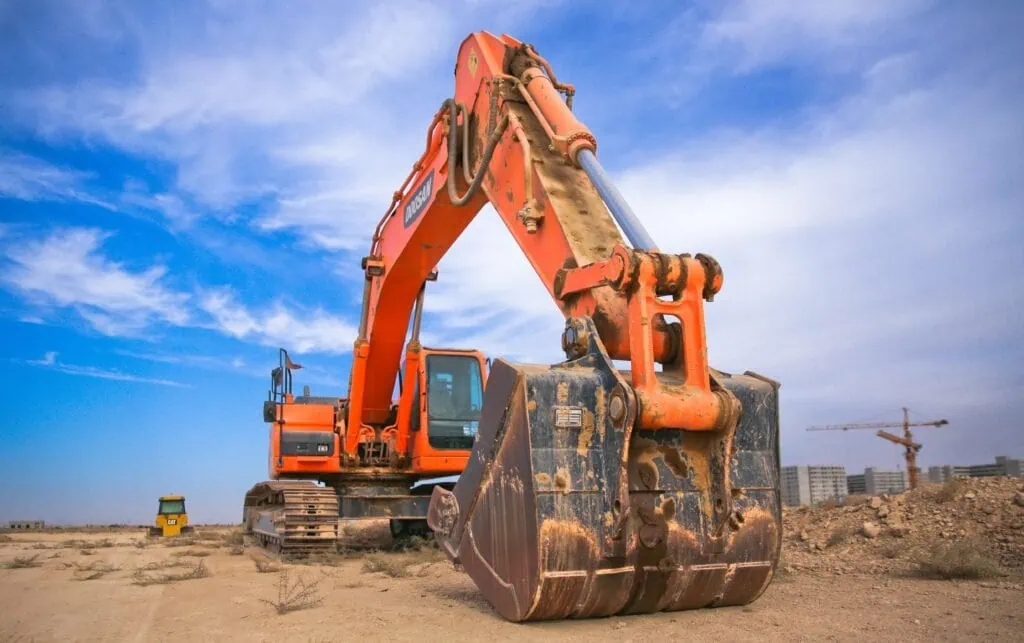

1.3 Bucket: The bucket is arguably the most critical part of an excavator digging capability. It is designed to scoop, lift, and carry away the material being excavated. Depending on the material to be dug, the size, shape, and durability of the bucket can vary. For instance, a general-purpose bucket is used for soft soils, whereas a heavy-duty rock bucket is equipped for excavator digging through hard rock and compacted material. The bucket’s design also allows for material retention, which ensures that the excavator can carry out efficient operations, even when the material is loose or rocky.
1.4 Hydraulic System: The hydraulic system is what enables the powerful movements of the excavator. Using fluid pressure, the system coordinates the movement of the boom, stick, and bucket, ensuring that these components move smoothly and efficiently. The precision of the hydraulic controls allows the operator to dig with high accuracy and control, optimizing the machine’s performance and reducing fuel consumption. The hydraulic system is vital for excavator performance as it determines the strength and speed of the excavator digging process.
2. Types of Excavator Digging Techniques
Excavators are versatile machines, and operators can employ various techniques depending on the project requirements, soil types, and available space. The following are common excavator digging techniques:
2.1 Standard Excavator Digging (Trenching): Trenching is the most common excavation technique, used for digging long, narrow trenches. These trenches are often necessary for laying down utilities, building foundations, or constructing pipelines. When performing trenching, the operator uses the bucket to scoop the material from the earth and deposits it in a designated area, such as a dump truck or pile. The width and depth of the trench are determined by the project requirements, and the size of the bucket is adjusted accordingly to ensure the digging is precise.
2.2 Swing Excavator Digging (Circular Digging): Swing digging is a technique used when an excavator is required to dig in tight or confined spaces. This method involves the operator swinging the boom and bucket in a circular arc to remove material from a designated area. It’s particularly effective when there are obstructions such as buildings, walls, or other equipment nearby. The circular motion allows the excavator to access a larger radius of material without having to reposition constantly, which saves time and enhances operational efficiency.
2.3 Side-Cutting or Shoulder Excavator Digging: Side-cutting, also known as shoulder digging, is commonly used in road construction and landscaping projects. This technique is helpful when digging along slopes or embankments. The operator positions the excavator at an angle to the slope and uses the bucket to cut through the earth carefully. This process ensures that the slope is maintained, and the excavation doesn’t cause erosion or instability. It’s essential for projects requiring precise grading or excavation of areas with steep angles.
2.4 Backhoe Excavator Digging (For Deep Digging): Backhoe digging is employed for deeper digging tasks, such as when a project requires trenching beyond the reach of the excavator’s standard arm. The backhoe technique involves the use of the boom and stick to dig at steep angles, allowing the bucket to reach deep into the earth. This is particularly useful for excavation work where access to deeper soil layers is necessary, such as foundation work or when working with underground utilities.
3. The Role of Attachments in Excavator Digging
Attachments are integral to the versatility and efficiency of excavators. They expand the range of tasks that an excavator can perform and ensure that the machine is adaptable to various job site requirements. Here are some key attachments that can enhance excavation tasks:
3.1 Hydraulic Hammers: Hydraulic hammers are powerful tools used in situations where excavation needs to break through hard materials, such as rock, concrete, or asphalt. These hammers apply repeated, high-impact force to fracture the material, enabling the excavator to continue digging in tough conditions. Hydraulic hammers are invaluable when traditional excavator digging methods are ineffective, especially in mining, demolition, or infrastructure projects.
3.2 Buckets: Buckets are the most common excavator attachment and come in different shapes and sizes to suit specific materials and tasks. General-purpose buckets are used for standard excavator digging, while specialty buckets such as ditching buckets or rock buckets are used for particular materials. For example, a narrow, long bucket might be used for excavator digging trenches, while a heavy-duty bucket might be equipped for breaking through rocky terrain. The type of bucket used will affect how effectively the excavator performs its job.
3.3 Thumb Attachments: Thumb attachments provide gripping capability to the excavator, making it easier to handle large or cumbersome materials, such as logs, rocks, and debris. With a thumb attachment, the excavator can pick up and move heavy or awkwardly shaped objects without needing to rely on additional lifting equipment. This feature is particularly useful for land clearing, demolition, and material handling tasks.
3.4 Grapples: Grapples are used to handle large materials that are difficult to manipulate with a regular bucket. They are equipped with large, powerful jaws that can firmly grasp materials like tree stumps, metal debris, or large boulders. Grapples are invaluable for projects like demolition, clearing wooded areas, or moving large debris, as they allow for efficient handling of large, irregular materials.
4. The Importance of Operator Skill
While excavators are sophisticated machines, the operator’s skill is crucial to maximizing their potential. The operator’s expertise can significantly affect the quality, efficiency, and safety of the excavation process. Several key operator skills include:
4.1 Adjusting the Arm and Bucket: The ability to precisely adjust the boom, stick, and bucket is critical for achieving the desired excavator digging depth and material handling. Experienced operators know how to adjust the arm for different tasks and how to avoid disturbing surrounding areas. Accurate adjustments lead to cleaner, more efficient work and prevent damage to the equipment.
4.2 Maneuvering in Tight Spaces: Excavators are often required to operate in tight or confined spaces. A skilled operator is adept at maneuvering the excavator safely around obstacles or in small areas where the machine’s movement is limited. By positioning the machine properly and using the correct technique, the operator can perform excavator digging tasks without damaging the surroundings or reducing the machine’s efficiency.
4.3 Material and Soil Understanding: Understanding the type of material being excavated is crucial for selecting the appropriate techniques and attachments. For instance, loose, sandy soil might require a different technique compared to hard, rocky ground. Experienced operators can adjust their approach based on the soil conditions to ensure efficiency, reduce wear on the excavator, and complete the job on time.
5. Maintenance for Excavator Efficient Digging
Maintaining your excavator is crucial to ensure its digging performance remains optimal. A well-maintained machine works more efficiently, consumes less fuel, and has a longer lifespan, all of which contribute to improved excavation performance. Proper maintenance ensures that the components responsible for excavator digging, like the hydraulic system, the arm, and the bucket, function at their best. Here’s a breakdown of key maintenance tasks that affect digging efficiency:
5.1 Hydraulic System Care: The hydraulic system is the heart of an excavator’s digging ability. Without regular maintenance, the hydraulic fluid can become contaminated, leading to system failures. Routine checks and changes of hydraulic fluid, as well as cleaning or replacing filters, ensure the hydraulic system delivers optimal performance. If the system becomes clogged or inefficient, the excavator’s digging power and precision may significantly drop.
5.2 Regular Inspection of the Boom and Arm: The boom and arm are under constant stress during excavation. Checking for cracks, wear, or damage in these components is essential to maintain their strength and efficiency. Regularly lubricating the boom’s joints and checking the hydraulic lines for leaks helps prevent costly repairs down the line and ensures smooth operation while digging.
5.3 Bucket Wear and Tear: The bucket is constantly in contact with the ground, meaning it can wear down over time. Inspecting the bucket for wear and tear, cracks, or damage is critical to maintaining its ability to scoop and hold material effectively. Replacing worn-out teeth or repairing cracks will ensure the bucket continues to perform well, particularly when digging in challenging materials like rocky or compacted soil.
5.4 Engine and Fuel System Maintenance: An excavator’s engine powers its hydraulic system and digging operations, making it one of the most vital components for performance. Regular engine maintenance, including checking air and fuel filters, ensuring proper engine oil levels, and replacing spark plugs, ensures that the excavator runs efficiently. Efficient engine performance translates to better digging power and reduced fuel consumption.
6. Excavator Performance in Different Soil Conditions
Soil type plays a significant role in how an excavator performs during digging operations. The soil composition and density affect the digging speed, fuel efficiency, and the type of equipment or technique needed. Here’s how different soil conditions impact excavator operations:
6.1 Soft Soil: In soft soil conditions, such as sandy or loamy soil, excavators can work relatively quickly because the material is loose and easy to dig through. Soft soils require less digging force, allowing the excavator to operate efficiently with standard buckets. Excavators in these conditions tend to work faster, with less strain on the engine, hydraulic system, and digging components.
6.2 Clay or Muddy Soil: Clay or muddy soil can be tricky to dig through because of its dense, sticky nature. Excavators may face greater resistance, slowing down the digging process. This type of soil may also stick to the bucket, reducing efficiency and increasing the amount of time needed to excavate. In these conditions, larger or specialized buckets, such as mud buckets, are often used to help reduce the time spent in clearing the material.
6.3 Rocky Soil: Excavating through rocky soil presents a serious challenge, as rocks can wear down the bucket and increase the load on the excavator. In these conditions, excavators often rely on specialized attachments like hydraulic hammers or rock buckets. These tools break down or scoop through the rocks more effectively, allowing for a more efficient digging process. Rock excavation typically requires slower digging speeds and more careful operation to prevent damage to the excavator.
6.4 Hardpan or Compact Soil: Hardpan or compact soil is dense, difficult to break through, and can slow down excavation. This type of soil often requires more power and specialized attachments, such as ripper teeth or heavy-duty buckets, to break through. While digging speed may be slower in compacted soil, excavators can still perform effectively with the right tools and techniques.
7. Excavator Digging and Safety
Safety is a top priority during any excavation project. When operating an excavator, certain safety practices and procedures need to be followed to ensure the operator’s safety and the success of the project. Proper digging practices not only ensure that the excavation is completed efficiently but also prevent accidents and minimize the risk of damage to the machine and surroundings.
7.1 Operator Training and Awareness: One of the most essential factors for safe and effective excavation is operator training. An experienced operator will be well-versed in the machine’s capabilities, safety procedures, and how to handle different digging conditions. A skilled operator can manage digging operations safely, avoid accidents, and ensure the machine is used efficiently. Regular training and safety certifications also keep operators updated on the best practices and technological advancements.
7.2 Maintaining Clear Work Zones: It is essential to maintain a clear work zone around the excavator. This involves ensuring that the surrounding area is free of debris, personnel, or other equipment. Excavators operate with extended arms and buckets, which can pose hazards to those in proximity. Implementing safety barriers or warning systems and ensuring that workers maintain a safe distance is a key part of excavation safety.
7.3 Stability and Ground Conditions: Ensuring that the excavator is stable during digging operations is crucial to avoid tipping. Operators should always be mindful of the ground conditions and how they might affect the machine’s stability. For example, soft or uneven ground can cause the excavator to become unstable. Stabilizing the machine with outriggers or adjusting the position can mitigate risks of tipping and improve digging efficiency.
7.4 Proper Excavation Practices: When it comes to the actual digging process, operators should use the correct techniques, such as trenching, side-cutting, or backhoe digging, based on the material and project requirements. Maintaining a controlled digging speed and avoiding excessive force can reduce the chances of equipment failure and reduce safety risks.
8. The Role of Technology in Excavator Digging
Advancements in technology have revolutionized the way excavators perform digging tasks, making them more efficient, precise, and safer. Here are a few ways that technology has impacted excavation:
8.1 GPS and Machine Control Systems: Modern excavators are equipped with GPS and machine control systems that provide real-time data to operators. These systems can assist in ensuring the excavator is digging to the correct depth and alignment, reducing the risk of errors. GPS technology is particularly useful in large-scale projects where accuracy is crucial, such as road construction or mining.
8.2 Auto-Idle and Fuel Efficiency Technology: Excavators now come with auto-idle and fuel efficiency technology that can reduce fuel consumption while still maintaining operational performance. These technologies monitor the engine’s workload and adjust idle times or fuel use based on the job requirements. By reducing fuel consumption, excavators can maintain performance while lowering operational costs.
8.3 Telemetry Systems: Excavators with telemetry systems allow operators and fleet managers to monitor the machine’s performance remotely. These systems can provide valuable insights into fuel efficiency, maintenance needs, and productivity. By accessing this data, operators can make more informed decisions about how to optimize their digging operations and ensure the excavator is performing at its best.
8.4 Automation and Remote Control: Emerging technologies in automation and remote control have allowed excavators to operate autonomously or via remote control. This is particularly useful for hazardous environments where human operators may be at risk. Remote operation allows excavators to work in dangerous or challenging conditions, such as mining, demolition, or underwater excavation, while keeping the operator safe.
9. Excavator Digging in Different Construction Scenarios
Excavators are used across various construction scenarios, each of which requires different techniques and approaches. Whether it’s for residential, commercial, or infrastructure projects, understanding the needs of each scenario is vital for choosing the correct digging methods and ensuring the project’s success.
9.1 Residential Construction: In residential construction, excavators are commonly used for digging foundations, trenches for utilities, and for site preparation. The main goal is to ensure the excavation work is precise and to clear the area of any debris or materials. Excavators may need to maneuver around other equipment or structures, making accuracy and skill essential for efficient digging in tight spaces.
9.2 Commercial and Industrial Construction: For commercial projects, excavators are often used in larger areas that require extensive digging, such as for parking lots, roadways, or building foundations. These tasks often require excavators with more power and larger buckets for digging through denser soils or clearing significant amounts of material. Excavators are also used in demolition, as they can efficiently remove debris from the construction site.
9.3 Infrastructure and Civil Engineering Projects: In infrastructure projects like road construction, pipelines, and tunnels, excavators are indispensable for digging large trenches or creating channels. These projects require precise excavation, as they often involve working with underground utilities or constructing deep foundations. In civil engineering, excavation tasks are more complex, requiring larger, more powerful excavators equipped with specialized tools, such as hydraulic hammers and augers.
In conclusion, excavator digging is a dynamic process influenced by machine components, techniques, soil conditions, operator skills, and technology. By understanding these elements, operators can achieve efficient, precise, and safe excavation results, ensuring the success of the construction project.
