When you’re working with heavy-duty equipment like an excavator, knowing excavator lifting capacity is crucial to your job site’s safety and efficiency. Excavators are built to handle a variety of tasks, but it’s important to understand how much weight they can safely lift and the factors that influence their lifting power.
Many operators and construction managers make the mistake of overloading an excavator, assuming it can handle more than it’s designed for. This can lead to equipment failure, unsafe conditions, and delays in the project. In extreme cases, it can even result in accidents that cause harm to workers or damage to materials. Understanding the lifting capacity and how to stay within safe limits is critical for a smooth and successful operation.
When you’re working with large machinery, the risk of mishandling heavy loads can be disastrous. Exceeding the recommended lifting capacity of an excavator can cause hydraulic system failure, damage to the undercarriage, or even tipping, which can not only damage the machine but also lead to significant delays and potential injury.
In this article, we’ll explore how much weight an excavator can lift, what factors affect its lifting capacity, and how to ensure that you’re using the right machine for your task. By understanding the various elements that contribute to lifting capacity, you can optimize your machine’s performance, reduce risks, and keep your job site running smoothly.

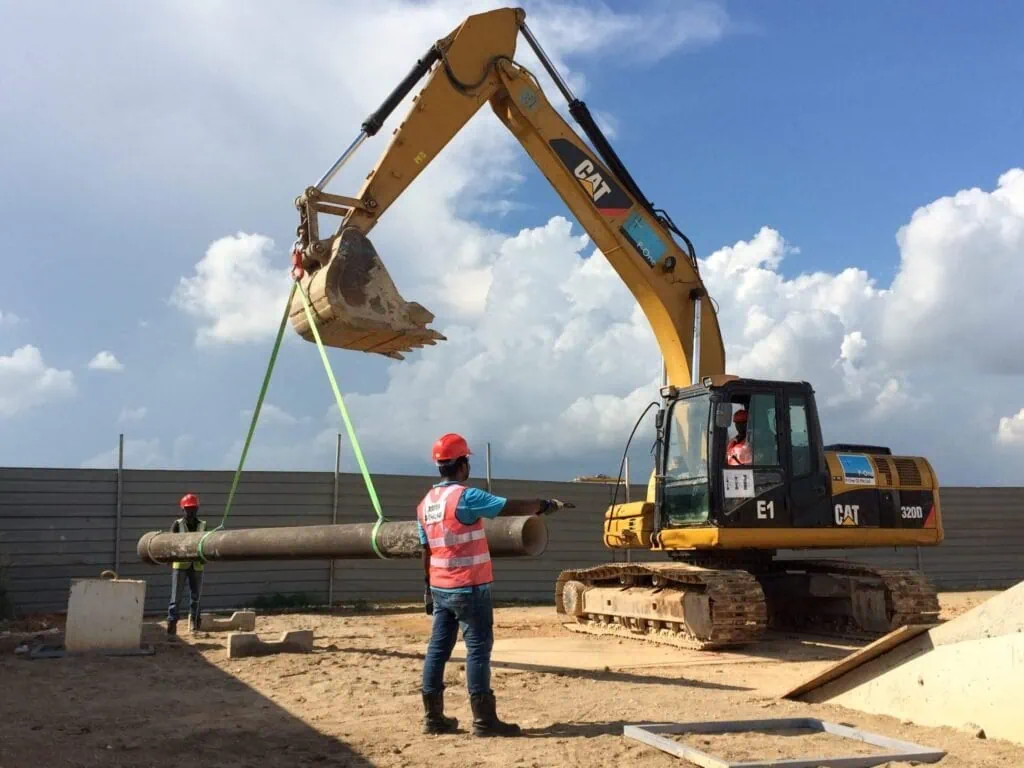

1. What is Excavator Lifting Capacity?
Excavator lifting capacity refers to the maximum weight an excavator can safely lift, carry, and move. It is determined by several factors such as machine type, size, and design. The lifting capacity is typically provided by the manufacturer and is usually listed in the equipment’s specifications.
The lifting capacity is not just about lifting the load off the ground. It also takes into account factors like:
- Reach: The further you extend the boom, the less weight the machine can safely lift.
- Height: Lifting a load higher up will also decrease the weight the excavator can lift.
- Radius: The weight capacity will decrease as the load is moved further from the center of the machine.

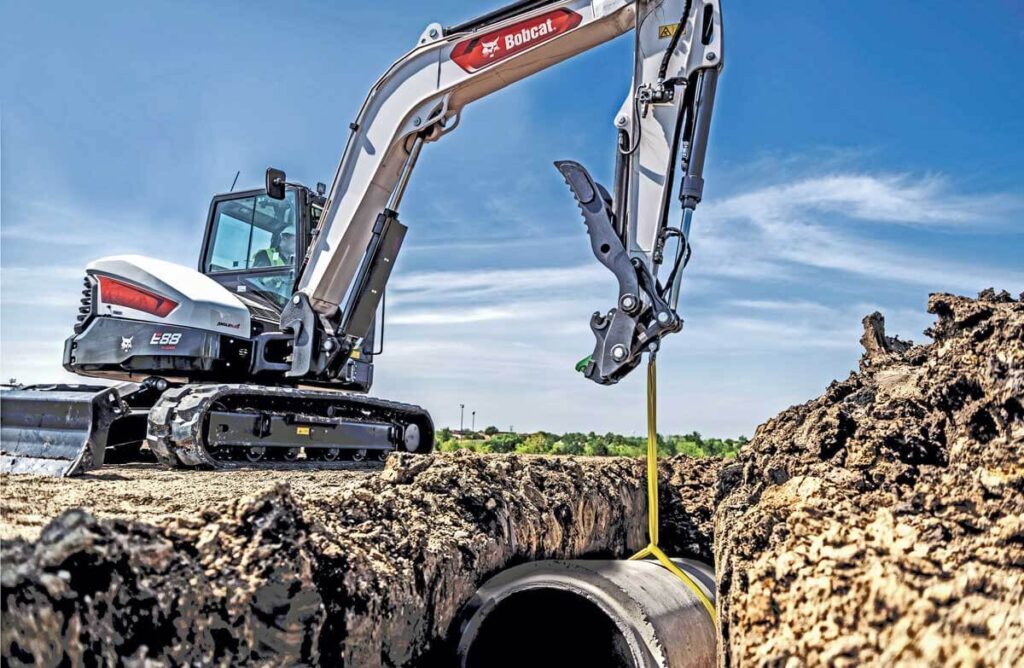

2. Factors Affecting Excavator Lifting Capacity
Several factors determine how much weight an excavator can lift. Understanding these factors can help you avoid overloading and ensure you’re operating within safe limits.
| Factor | Explanation |
| Excavator Size & Model | Larger excavators generally have higher lifting capacities due to more powerful engines and larger hydraulic systems. Small models are designed for lighter tasks. |
| Boom Length | The length of the boom directly impacts lifting capacity. A longer boom results in a larger lifting radius but reduces the lifting weight at full extension. |
| Track Configuration | Tracked excavators provide better stability compared to wheeled models, which can lift heavier loads. However, wheeled excavators offer more mobility. |
| Hydraulic Power | The strength of the hydraulic system is a crucial determinant in lifting capacity. A high-powered hydraulic system allows the excavator to lift heavier materials. |
| Ground Conditions | Soft, muddy, or uneven ground can affect the machine’s ability to lift heavy loads safely. Stable and firm ground is necessary for maximum lifting capacity. |
| Load Distribution | Evenly distributed loads are easier to lift than those that are unbalanced. Uneven loads can cause tipping and reduced lifting performance. |
| Bucket Size & Weight | A large bucket or attachment adds additional weight and can decrease the overall lifting capacity of the machine. Adjusting bucket size can optimize performance. |

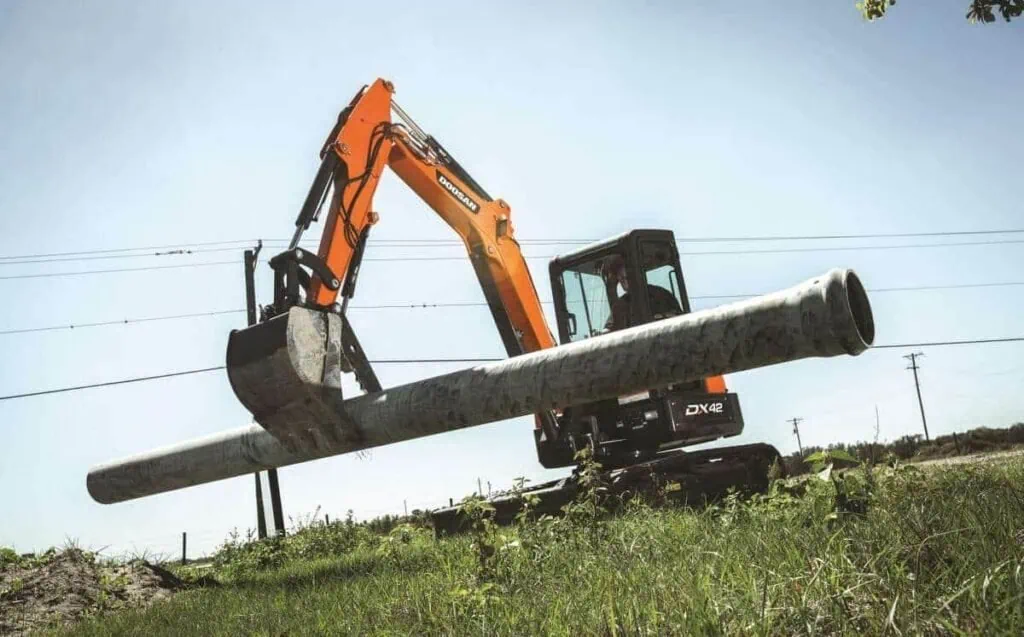

3. How to Calculate Excavator Lifting Capacity
Calculating the lifting capacity of an excavator is an essential part of understanding the machine’s performance limits and ensuring safety. Excavator manufacturers provide detailed lifting charts that outline the maximum load the machine can safely lift at various boom extensions, lift heights, and radii. These charts are designed to help operators make informed decisions based on the type of task they are performing and the specific conditions of the job site.
The lifting capacity is not a fixed number and can vary significantly depending on several factors. Here’s a more detailed breakdown of how to accurately calculate and interpret lifting capacity:
3.1 Excavator Lifting Charts: Key Considerations
Lifting charts are typically provided by the manufacturer and are specific to each model of excavator. They take into account the machine’s hydraulic strength, arm and boom configuration, and other factors that influence its lifting capability.
The chart is usually divided into several key sections:
- Boom Extension: This shows the lifting capacity at different boom lengths. As the boom extends further, the machine’s lifting capacity decreases.
- Lift Height: This section indicates how high the machine can lift a load. The lifting capacity tends to be highest when the load is at or near ground level and decreases as the lift height increases.
- Maximum Radius: This is the furthest distance from the center of the excavator at which the machine can lift a load. As the radius increases (the distance from the machine), the weight the excavator can lift decreases.
3.2 Types of Excavator Lifts
Excavator lifting charts typically provide lifting capacities for three common types of excavator lifts. Each type comes with specific weight limits, depending on the distance and height:
Straight Excavator Lifts: This refers to lifting loads that are directly underneath the excavator, with no extension of the boom or reach. This is typically the safest and most stable lift configuration, allowing the excavator to carry its full lifting capacity.
Excavator Lift Height: This measures how high an excavator can lift a load while maintaining safety and stability. As the lift height increases, the maximum weight the machine can lift will decrease significantly. This is especially important when working in construction environments that require heavy loads to be lifted to elevated positions (such as placing steel beams or equipment on higher levels of a building).
Maximum Reach: This is the furthest distance from the center of the machine at which a load can be safely lifted. The lifting capacity decreases as the excavator’s boom is extended further, so it is essential to consider both the horizontal reach (distance from the excavator) and lift height when planning operations.
3.3 Factors Affecting Lifting Capacity
While lifting charts provide valuable guidance, they are only accurate if the operator takes into account a variety of operational conditions. The following factors can affect lifting capacity:
Boom Angle and Extension: The angle of the boom and how far it is extended directly impact the amount of weight an excavator can safely lift. At a shallow angle and short extension, the excavator can lift more weight, but as the boom is extended further and at steeper angles, the load capacity decreases.
Ground Conditions: The stability of the ground on which the excavator is working is critical to its lifting capacity. Soft, uneven, or unstable ground can cause the machine to tip over or struggle to support the load. It’s essential to operate the machine on firm, level ground to ensure maximum lifting efficiency.
Load Center of Gravity: The closer the load is to the machine’s center of gravity, the more stable the lift will be. Lifting a load that is further from the center can increase the risk of tipping or overloading the machine, especially if the radius is extended too far.
Hydraulic Power and System: An excavator’s hydraulic system is responsible for lifting and moving loads. Variations in hydraulic power, maintenance issues, or worn components can reduce lifting capacity. Regularly servicing the machine’s hydraulic system ensures that it operates at peak efficiency.
Operator Skills: Proper operation is vital for safe and effective lifting. Skilled operators know how to balance loads, use lifting attachments, and avoid overloading the excavator. Following the lifting chart guidelines ensures that operators don’t exceed the machine’s safe limits.
3.4 Practical Example: Interpreting a Lifting Chart
Let’s break down a sample scenario based on a hypothetical excavator’s lifting chart:
- Machine Model: Excavator X4500
- Boom Extension: 10 feet
- Lift Height: 15 feet
- Maximum Reach: 20 feet
- Ground Conditions: Firm, level terrain
Based on the lifting chart, at a straight lift (no boom extension), the excavator can lift up to 8,000 pounds. However, at a maximum boom extension of 10 feet with the load 15 feet in the air, the lifting capacity reduces to 3,000 pounds. If the operator attempts to lift a load that exceeds 3,000 pounds at this extension and height, they risk overloading the hydraulic system and compromising the stability of the machine.
This example highlights the importance of considering both height and radius to accurately determine safe lifting limits. Operators must always refer to the chart to ensure that the lift’s distance and height are within the machine’s recommended lifting limits.

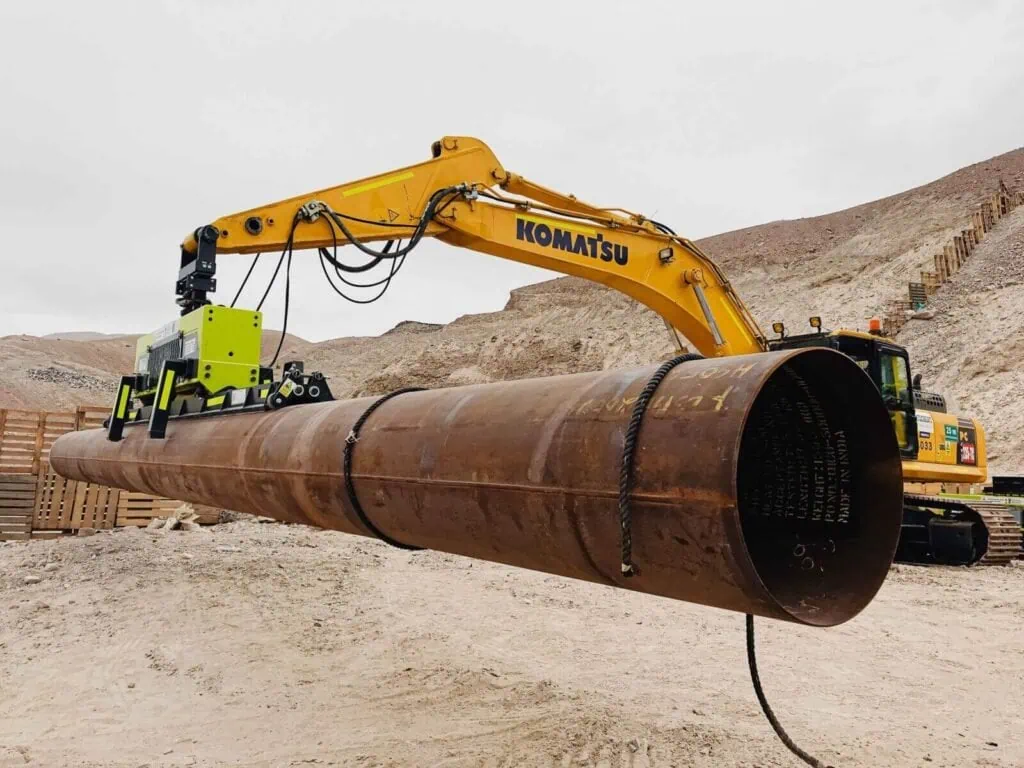

3.5 Using the Right Lifting Attachments
Sometimes, lifting attachments such as hooks, grabs, or slings are used to handle materials. When using attachments, it’s important to factor in their weight as part of the load. A heavy attachment can reduce the available lifting capacity, so it’s essential to include this weight when determining how much the excavator can safely lift.
Additionally, certain attachments are designed for specific types of lifting, such as hydraulic grabs for handling logs or bucket extensions for digging deeper. Choosing the right attachment can help maximize the excavator’s lifting efficiency and ensure safe operation.
In summary, calculating the lifting capacity of an excavator involves understanding the various factors that impact the machine’s performance. Lifting charts, while helpful, are just a guideline, and operators must always consider external factors such as boom extension, ground conditions, and load distribution. By following proper procedures and interpreting lifting charts accurately, you can ensure that your excavator operates within its safe limits, avoiding equipment damage and ensuring site safety.

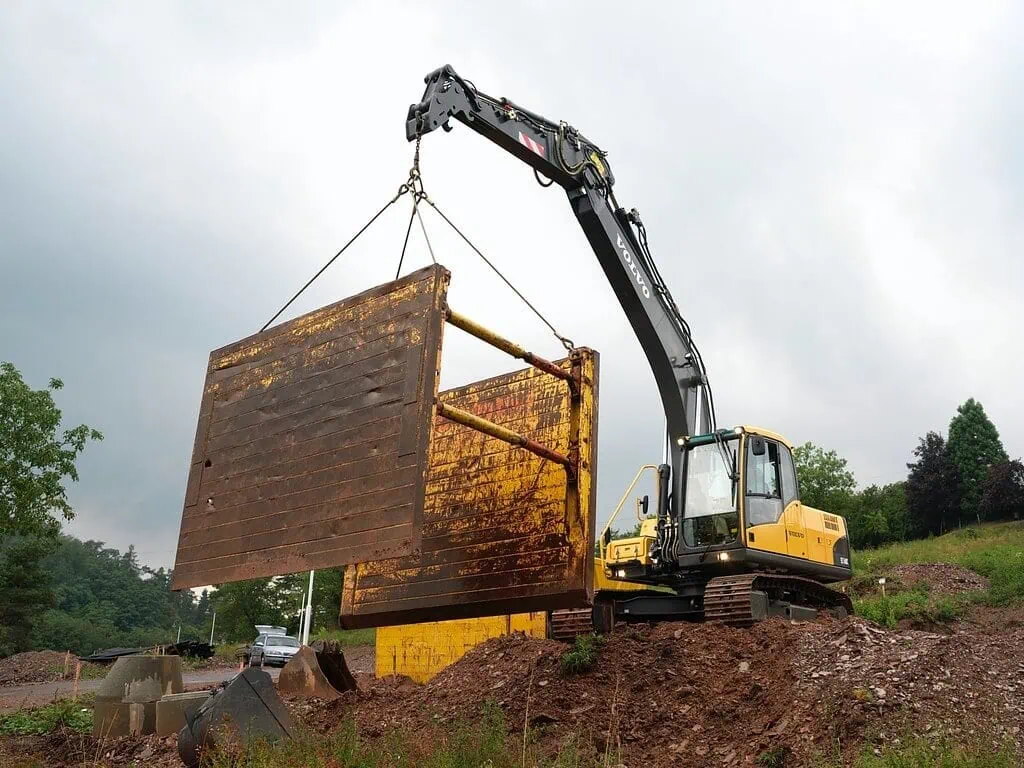

4. Common Misconceptions About Excavator Lifting Capacity
When it comes to operating an excavator, there are several misconceptions about lifting capacity that can lead to poor decisions and unsafe practices. Understanding the truth behind these myths is crucial for both safety and maximizing performance. Let’s take a closer look at some of the most common misconceptions:
Myth #1: Bigger Excavators Can Lift Anything
It’s a common assumption that the larger the excavator, the more weight it can lift. However, size is only one part of the equation. While larger excavators generally come with greater lifting capacities, their ability to lift is highly influenced by other factors such as balance, boom length, hydraulic power, and safety ratings.
- Balance: An excavator’s balance plays a critical role in lifting. Large machines may have more power, but they can still be prone to tipping if the load is not balanced correctly, especially at extended reaches. The center of gravity must be kept in check to avoid accidents.
- Hydraulic System: The hydraulic strength of the excavator determines how much weight it can move efficiently. Larger excavators may have more powerful hydraulics, but this does not automatically equate to an ability to handle all heavy loads at any reach or height.
- Safety Ratings: Every excavator, no matter its size, comes with specific safety ratings that define the machine’s lifting capabilities under various conditions. These ratings are not solely based on the size of the machine but rather on tested limits that include stability, hydraulic capacity, and operational conditions.
Always refer to the manufacturer’s lifting charts to understand the true lifting limits of a specific model. It’s not just about the size, but how the machine is designed to perform in different environments.
Myth #2: A Lift is Safe as Long as It’s Within the Listed Capacity
This is one of the most dangerous myths surrounding excavator lifting capacity. While it’s true that lifting capacity charts give a solid indication of the maximum weight an excavator can safely lift, capacity alone does not guarantee safety. A lift that is technically within the rated limits can still result in instability, machine damage, or worse, accidents if certain factors are not accounted for:
Boom Angle: As the boom is extended and the lift angle increases, the lifting capacity decreases significantly. For example, lifting a load at a steep angle, even within the rated weight, can strain the hydraulic system, leading to mechanical failure or loss of control.
Reach and Radius: The farther the load is from the excavator’s center, the less weight the machine can safely handle. Lifting something at maximum extension or radius, even if it’s within the rated capacity, could cause the machine to become unstable, especially if the load is unevenly distributed.
Ground Conditions: The type of ground the excavator is operating on plays a huge role in lifting capacity. Soft or uneven ground can cause the machine to sink or tilt, even with loads that fall within its rated capacity. Always ensure that the machine is operating on firm, level ground to prevent tipping.
In other words, even if a lift is technically within the limits, it must still be contextually safe. Factors such as boom position, ground stability, and load balance must always be considered. This is why skilled operators are so important—they can interpret lifting charts and apply them to real-world conditions.
Myth #3: Lifting Capacity is the Same at All Boom Lengths
One of the most widely held misconceptions is that the lifting capacity remains the same regardless of the excavator’s boom extension. This simply isn’t true. The relationship between boom length and lifting capacity is inversely proportional—as the boom extends, the capacity to lift heavy loads diminishes.
Short Boom = Higher Capacity: When the boom is positioned at a shorter length, the excavator can lift the heaviest loads. This is because the machine’s base is closer to the load, offering greater stability and more efficient hydraulic power transfer.
Longer Boom = Lower Capacity: As the boom extends, the hydraulic system needs to work harder to maintain lift, which reduces the overall lifting power. The farther the load is from the machine’s base (i.e., the longer the boom), the more the excavator’s lifting capacity is affected. This can result in a weaker lift, especially at maximum boom extension.
Lifting charts provide specific information about how lifting capacity changes at different boom extensions. For example, an excavator may have a lifting capacity of 5,000 kg when the boom is short and close to the machine, but that capacity might decrease to 2,000 kg when the boom is fully extended. This is crucial information for operators to understand, especially when lifting overhead or performing operations that require long reaches.
Moreover, attachments like buckets or grabs can further alter the lifting dynamics. Some attachments add additional weight, which also impacts the effective lifting capacity of the excavator, particularly when using extended booms.
Myth #4: Lifting Capacity Is the Same for All Excavator Models
Another common misconception is that lifting capacities are generally similar across different models of excavators. However, each model is designed with specific operational limits based on its intended use, hydraulic system, structural design, and purpose.
Mini Excavators: These smaller machines typically have much lower lifting capacities than larger models. Their lifting capacities range from 500 kg to 2,000 kg, depending on size and model, and they are designed more for precision digging and light lifting tasks in confined spaces.
Standard Excavators: These machines are more versatile and capable of handling medium to heavy lifting, usually ranging from 3,000 kg to 10,000 kg. They are commonly used in construction sites where larger, heavier lifts are needed, but still within a practical boom extension range.
Large Excavators: These machines, such as crawler excavators and hydraulic excavators, are capable of lifting very heavy loads, sometimes exceeding 20,000 kg, depending on the machine’s configuration. They are often used for heavy construction work, mining, and industrial applications where both reach and lifting capacity are critical.
Manufacturers typically specify lifting capacities based on the excavator’s model type and configuration. For example, a tracked excavator may have a higher lifting capacity compared to a wheeled excavator because of its increased stability.
To sum up, when selecting an excavator for a job, it’s essential to know the exact specifications of the model you are considering. Make sure to refer to lifting charts, which provide detailed capacity data for various configurations and working conditions.
5. How to Optimize Excavator Lifting Performance
To make the most of your excavator’s lifting capacity and avoid damage or accidents, here are some tips:
- Ensure Stability: Always operate on firm and level ground. If you’re working on a slope, use stabilizers or outriggers for added stability.
- Distribute the Load Evenly: Ensure that the load is balanced and that you’re not overreaching or overstretching the boom.
- Use the Right Attachment: Depending on the task, choose attachments that are rated for the weight you’re lifting. Some buckets and lifting tools are specially designed for heavier loads.
- Check Regularly: Keep an eye on hydraulic fluid levels, engine performance, and boom conditions. Regular maintenance can help preserve the machine’s lifting capacity over time.
6. Conclusion
The lifting capacity of an excavator is critical to safe and efficient operation. By understanding the factors that influence lifting power—such as the size of the machine, the hydraulic system, and the conditions under which the excavator is used—you can avoid accidents, protect your equipment, and maximize productivity. Always adhere to the lifting guidelines provided by the manufacturer, check the lifting charts regularly, and make sure to monitor the condition of your machine for optimal performance.
