Forklift dimensions is important consideration because they can impact the ability of the forklifts, including effectively move goods and navigate tight areas. If it’s not the right forklift size, it can mean limited maneuverability, wasted space and higher operating costs.
If size of the forklift is incorrect for the warehouse, you have created a major problem. Choose a forklift that is too large, you cannot get into tight aisles. Choose a forklift that is too small , it won’t handle the weight or volume of goods. Wrongforklift dimensions also result in safety hazards, longer loading/unloading times, and unnecessary wear on equipment. With so many forklift sizes and options available, how do you know which dimensions will maximize your warehouse’s productivity?
In this article, we’ll dive into the standard forklift dimensions and explore how these measurements affect your operations. You’ll learn what factors to consider when choosing the right forklift size for your facility and how theforklift’s dimensions can directly impact warehouse space, safety, and efficiency. By the end of this guide, you’ll be better equipped to make an informed decision that boosts performance and optimizes your workspace.

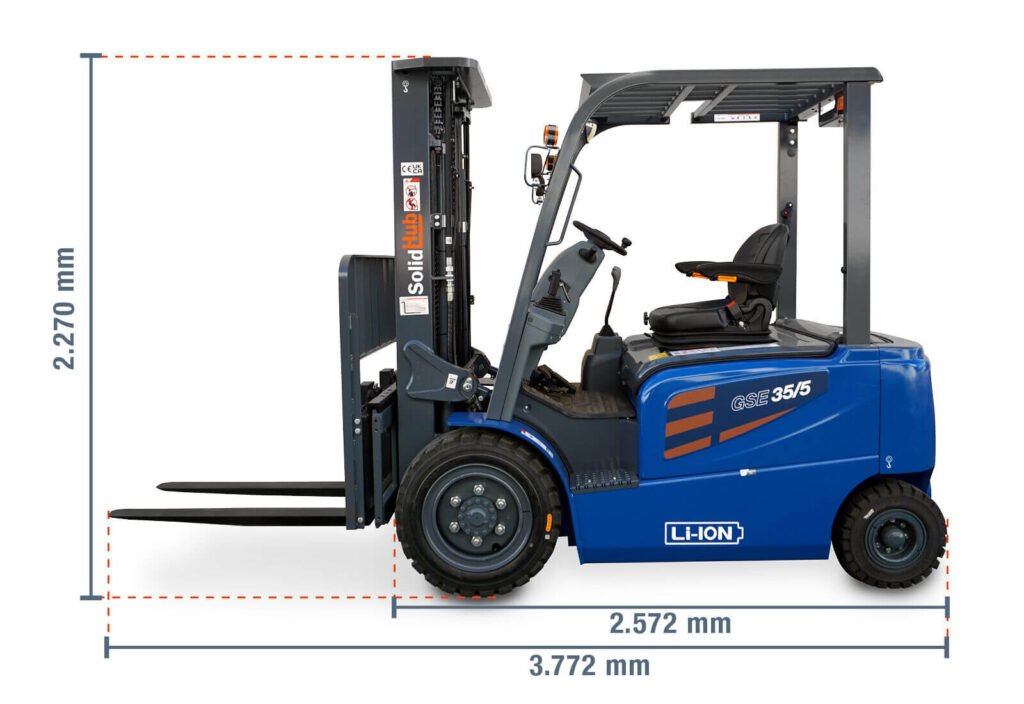

1. Understanding Standard Forklift Dimensions
Forklifts come in an array of sizes, based on their design, capacity, and intended use. But, for the most part, forklift dimensions boil down to three basic measurements:
Length: This refers to the overall length of the forklift from the front of the forks to the back of the forklift. The length can vary depending on whether the lift is designed for indoor or outdoor use. Larger lifts are used outdoors and on rough terrain.
Width: The width of the forklift is what determines how much space the forklift needs to move through aisles or small passages. For instance, a narrow aisle forklift might need only 3 or 4 feet to navigate, while a standard forklift might require a few feet more..
Height: The height of the forklift is important for stacking and reaching products on high shelves. This measurement will affect how high a forklift can lift its load, and whether it can fit under ceilings and other obstacles in your warehouse.
Lift Capacity: The lift capacity of a forklift is another important dimension. You need to make sure the lifting capabilities of the forklift match what you are going to be lifting. Overloading a forklift can damage the machine and the load, as well as create safety hazards. Make sure the forklift you choose can comfortably handle the heaviest load you move on a regular basis.
2. How Do Forklift Dimensions Impact Warehouse Space and Operations?
Your warehouse layout will be a major factor in determining which forklift dimensions you should be using. The proper lift can increase productivity, while the wrong lift can really hold things up. Here’s how lift dimensions can affect your warehouse.:
Narrow Aisle Efficiency:
Smaller dimensions are essential for warehouses that require narrow aisles. A smaller width allows you to maximize limited aisle space, making it possible for easier maneuvering and more room to store your products. Compact lifts can also help you increase your overall storage capacity if you are in a high-density storage situation.
Turning Radius:
The turning radius of a forklift is directly affected by its width and length. Forklifts with a tighter turning radius are perfect for environments with limited space, such as warehouses with narrow aisles. This allows operators to navigate efficiently, even in cramped spaces, without sacrificing the speed of operations.
Load Capacity and Stability:
Forklift dimensions also impact load stability. Longer forklifts can handle larger, heavier loads, while smaller forklifts may not be able to lift or carry as much. However, smaller models are often more maneuverable, making them ideal for tasks that involve precision, such as handling lighter items in tight spaces.
Storage Layout:
Your storage system also needs to be factored in when considering forklift dimensions. If your facility uses racking systems or has multiple levels of stacked goods, you’ll need a forklift that can reach those higher levels without being too tall for the aisle height. Forklifts with adjustable forks or those designed for high-lift operations allow you to maximize your vertical storage capacity.
3. Common Forklift Classifications and How They Relate to Size
When choosing a forklift, it’s also essential to understand the different forklift classifications. These are based on a variety of factors, including their size, weight, and lifting capacity. Some of the common forklift classifications include:
By Power Source:
- Internal Combustion Engine (ICE) Forklifts: These forklifts run on fuel like diesel, gasoline, or LPG. They are typically larger and more powerful, designed for outdoor use or areas with heavy loads.
- Electric Forklifts: Powered by batteries, these forklifts are smaller, quieter, and produce zero emissions. They are ideal for indoor use in warehouses and facilities with strict environmental regulations.
By Load Capacity:
- Light-duty Forklifts: These have a load capacity of around 1-3 tons and are best suited for handling lighter loads in smaller warehouses.
- Medium-duty Forklifts: With a capacity of 4-6 tons, these forklifts are more versatile and can handle a wider variety of products in standard warehouse environments.
- Heavy-duty Forklifts: These forklifts can carry over 6 tons and are ideal for handling extremely heavy loads, often found in industrial applications or outdoor environments.
By Application Type:
- Reach Trucks: Designed for narrow aisles and high shelving, these forklifts have a smaller footprint and are ideal for high-density warehouses.
- Counterbalance Forklifts: These are the most common type, often used in general material handling. They can handle a variety of loads and are available in different sizes and lifting capacities.
4What Factors Should You Consider When Choosing Forklift Dimensions for Your Facility?
When selecting the right forklift dimensions for your warehouse, several key factors need to be taken into account:
Warehouse Layout and Space Constraints:
The size and design of your warehouse are among the most important considerations. Take into account aisle widths, ceiling height, and how much space is available for the forklift to move. If you’re working with narrow aisles or crowded shelves, opting for a forklift with smaller dimensions will prevent bottlenecks and ensure smooth operations.
Type of Material Handled:
Different types of material may require different forklift sizes. For example, handling large pallets or heavy goods will require a larger, more powerful forklift, while smaller items or lighter loads can be managed with compact forklifts. Knowing what types of materials you will be handling helps you select the right forklift dimensions to match the task.
Forklift Load Capacity:
The weight of the loads you intend to move is another crucial factor. Each forklift has a specific load capacity, which is determined by its dimensions. A forklift with a larger load capacity typically has a longer base and may require more space for proper maneuvering. Be sure to select a forklift that can comfortably handle the heaviest items you will be lifting.
Ergonomics and Operator Comfort:
Larger forklifts often come with more room for the operator, which can enhance comfort and safety. However, in tight spaces, a compact forklift might limit visibility or operator comfort. It’s important to balance the forklift dimensions with operator needs to ensure both productivity and safety on the job.
5. How to Determine Forklift Capacity?
When selecting a forklift, determining its capacity is essential to ensure it can handle the weights of the loads you plan to lift. Forklift capacity is typically rated by the manufacturer, and it refers to the maximum load weight that a forklift can safely lift at a given height and under certain conditions. Here’s how to determine forklift capacity:
Manufacturer’s Rating Plate:
Every forklift has a rating plate that lists the manufacturer’s specifications, including the load capacity. This plate will also specify the height at which the forklift can lift this maximum load. Make sure to check this rating plate, as it will give you the most reliable information about the forklift’s lifting ability.
Load Center:
Forklift capacity is determined by the load center, which is the distance from the forklift’s front wheels to the center of the load being carried. Typically, forklifts are rated for a 24-inch load center, but this can vary. When selecting a forklift, ensure that the load center of the forklift matches the dimensions of the loads you will be handling. A higher load center (larger or heavier load) may require a forklift with a higher lifting capacity.
Attachment Considerations:
If you plan to use special attachments (such as a side shifter or rotator), this can affect the forklift’s load capacity. Attachments can reduce the forklift’s lifting capacity, so it’s important to account for these adjustments when choosing the right forklift.
Fork Length and Size:
Fork length and size can also affect a forklift’s load capacity. Longer forks, for example, can distribute the weight over a larger area, reducing the pressure on the forklift’s lifting mechanism. Be sure to choose forks that match the type and size of the materials you handle.
Height and Lifting Dynamics:
The height at which a forklift operates also impacts its capacity. As the height increases, the lifting capacity decreases. Consider the lifting height required for your operations and match it to the rated capacity at that height.
6. Different Forklift Classifications and How They Relate to Dimensions
Forklifts come in a variety of classifications that cater to different operational needs. The dimensions and capabilities of each classification are tailored to specific tasks. Understanding these classifications will help you choose the right forklift size and features for your warehouse.
Class I: Electric Motor Rider Trucks
These are electric-powered forklifts with a wide range of dimensions and lift capacities. They are typically used in indoor environments and are ideal for narrow aisles. The compact size and electric power make them a popular choice for warehouses that need to reduce carbon emissions and maintain a quiet, clean environment.
Class II: Electric Narrow Aisle Trucks
Designed for narrow aisles, these forklifts are smaller and more maneuverable. They are best suited for high-density warehouses where maximizing storage space is essential. These trucks often have smaller dimensions than Class I forklifts and come with options like stand-up or order-picking configurations to further enhance space efficiency.
Class III: Electric Pedestrian Trucks
These forklifts are operated by pedestrians and are usually smaller in size compared to the other classes. They are used for lifting lighter loads over short distances and are ideal for facilities with limited space. Their compact dimensions make them perfect for low-lift applications in smaller warehouses.
Class IV: Internal Combustion Engine Trucks (Cushion Tires)
These forklifts are typically used for indoor environments where smooth, level floors are available. They are larger than Class III forklifts and often used in general material handling. Their weight and size make them suitable for handling medium to heavy loads.
Class V: Internal Combustion Engine Trucks (Pneumatic Tires)
Class V forklifts are used for outdoor or rough-terrain applications. Their larger dimensions and robust tires make them ideal for construction sites and yards. They can handle heavier loads and work well in uneven environments.
7. How Forklift Dimensions Impact Efficiency and Operations
The dimensions of a forklift don’t just affect its ability to navigate aisles and reach heights—they also play a critical role in determining how efficiently it can operate within your facility. Here’s how forklift dimensions can impact your operations:
Warehouse Layout Optimization:
Narrow aisles require smaller forklifts with good maneuverability. If your warehouse has tight corners and limited space, choosing the right forklift size ensures that your forklift can move easily without getting stuck or requiring too much space to turn.
Storage Space Management:
Forklifts with smaller dimensions are ideal for high-density storage systems, as they can move efficiently between racks and maximize vertical storage. Larger forklifts, while capable of handling heavier loads, may be less effective in high-density environments where space is at a premium.
Safety and Productivity:
Forklifts that fit the warehouse dimensions and operational needs can reduce the risk of accidents. Larger forklifts may feel cumbersome and take more time to navigate around obstacles, slowing down operations. In contrast, a forklift that is appropriately sized for your space will move more swiftly, allowing your team to work more efficiently.
Fuel and Energy Efficiency:
Forklifts that are too large for their job tend to consume more fuel or energy, whether they are powered by gasoline, diesel, or electricity. Conversely, selecting a forklift with the right dimensions ensures that you are using a more energy-efficient vehicle for your daily tasks.
8.Typical forklift truck dimensions
Typical forklift truck dimensions based on different types and configurations. The values may vary slightly depending on the manufacturer and specific model, but these provide a general overview:
| Forklift Type | Length (L) | Width (W) | Height (H) | Load Center (LC) | Turning Radius (TR) | Fork Length (FL) | Capacité |
| Electric Rider Forklift | 1.8 – 3,0 m | 1.0 – 1.3 m | 2.0 – 2.5 m | 500 – 600 mm | 1.5 – 2.5 m | 1.0 – 1.5 m | 1,000 – 2,500 kg |
| Electric Narrow Aisle Forklift | 1.5 – 2.5 m | 0.8 – 1.0 m | 2.0 – 2.4 m | 500 – 600 mm | 1.0 – 1.5 m | 1.0 – 1.5 m | 1,000 – 2,000 kg |
| Internal Combustion Forklift (Cushion Tires) | 2.2 – 3.5 m | 1.2 – 2.0 m | 2.4 – 3,0 m | 500 – 600 mm | 2.5 – 3.5 m | 1.2 – 2.0 m | 2,000 – 5 000 kg |
| Internal Combustion Forklift (Pneumatic Tires) | 3.0 – 4.0 m | 1.8 – 2.5 m | 2.5 – 3.5 m | 500 – 800 mm | 3.0 – 4.5 m | 1.2 – 2.5 m | 3,000 – 10,000 kg |
| Reach Truck (Electric) | 1.5 – 2.5 m | 1.0 – 1.2 m | 2.0 – 2.5 m | 500 – 600 mm | 1.5 – 2.5 m | 1.0 – 1.5 m | 1,500 – 3,000 kg |
| Order Picker (Electric) | 2.0 – 3,0 m | 1.0 – 1.3 m | 2.5 – 3,0 m | 500 – 600 mm | 1.5 – 2.5 m | 1.0 – 1.5 m | 1,000 – 2,000 kg |
| Tow Tractor | 2.0 – 3,0 m | 1.0 – 1.5 m | 2.0 – 2.5 m | 500 – 600 mm | 2.0 – 3,0 m | 1.0 – 1.5 m | 1,000 – 5 000 kg |
Key Notes:
- Length (L): This is the overall length of the forklift truck, including the forks but not accounting for attachments.
- Width (W): The width of the forklift truck, which determines its ability to navigate aisles.
- Height (H): The overall height, including the mast, of the forklift when fully raised.
- Load Center (LC): The horizontal distance from the forklift’s front wheels to the center of the load, typically 500 mm to 600 mm for standard forklifts.
- Turning Radius (TR): The smallest circular turn the forklift can make, which is crucial for maneuverability, especially in narrow aisles.
- Fork Length (FL): The length of the forklift’s forks, which may be adjusted depending on the type of loads you’re moving.
- Capacity: This refers to the maximum load weight a forklift can lift, which varies depending on the size and type.
This table should give you a good overview of forklift dimensions across common types, helping you choose the right one for your warehouse, facility, or operation.
9. Forklift Fork Dimensions:
Here is a table outlining typical forklift fork dimensions, which vary based on the forklift type, application, and load requirements. Fork dimensions include length, width, thickness, and distance between the forks. These values provide a general reference for selecting the appropriate forks for your operation.
| Forklift Type | Fork Length (FL) | Fork Width (FW) | Fork Thickness (FT) | Distance Between Forks (DBF) | Fork Height (FH) | Fork Capacity (per fork) |
| Standard Forks (General Purpose) | 1.0 – 2.5 m | 100 – 250 mm | 40 – 80 mm | 300 – 1,200 mm | 100 – 150 mm | 1,000 – 5 000 kg |
| Heavy Duty Forks | 1.0 – 3,0 m | 150 – 300 mm | 60 – 120 mm | 500 – 1,500 mm | 150 – 200 mm | 5,000 – 12 000 kg |
| Carrying Forks | 1.5 – 2.5 m | 100 – 250 mm | 50 – 100 mm | 500 – 1,500 mm | 100 – 150 mm | 1,000 – 4,000 kg |
| Wide Load Forks | 1.0 – 2.5 m | 250 – 500 mm | 50 – 100 mm | 500 – 2 000 millimètres | 150 – 200 mm | 2,000 – 6 000 kg |
| Paper Roll Forks | 1.0 – 2.5 m | 150 – 250 mm | 40 – 80 mm | 1,000 – 2,500 mm | 150 – 200 mm | 1,000 – 5 000 kg |
| Block Forks (Concrete/Stone) | 1.0 – 2.5 m | 100 – 150 mm | 50 – 100 mm | 500 – 1,500 mm | 100 – 150 mm | 2,000 – 6 000 kg |
| Extended Forks | 2.5 – 4.0 m | 120 – 250 mm | 60 – 120 mm | 1,000 – 3 000 mm | 150 – 200 mm | 3,000 – 10,000 kg |
| Custom Forks | Varies | Varies | Varies | Varies | Varies | Varies |
Key Notes:
- Fork Length (FL): The overall length of the fork, typically selected based on the size and type of load being handled. For general handling, 1.0 – 2.5 meters is standard, while specialized loads (e.g., paper rolls or concrete blocks) may require longer forks.
- Fork Width (FW): The width of each fork, affecting its ability to handle different load sizes. Wider forks (up to 500 mm) are often used for handling larger or bulkier loads.
- Fork Thickness (FT): The thickness of the fork’s metal material, which determines its strength and load capacity. Heavy-duty forks tend to have greater thickness for increased strength.
- Distance Between Forks (DBF): This is the space between the forks and plays a key role in load stability. This distance varies depending on the forklift’s mast design and the load being carried.
- Fork Height (FH): The height of the fork from the ground to the top of the fork. This dimension is important for how the fork interacts with the load and the height of the mast.
- Fork Capacity (per fork): Refers to the maximum weight a single fork can lift. It’s important to note that fork capacity should align with the forklift’s rated lifting capacity.
Understanding the various dimensions and specifications of forklift forks is critical for selecting the right equipment for your specific needs. Choosing the correct fork size and type will ensure maximum efficiency, safety, and the ability to handle loads effectively, all while minimizing the risk of damage to the forklift and its surroundings.
10.Conclusion
In conclusion, selecting the right forklift dimensions is crucial for optimizing warehouse efficiency, space management, and safety. By understanding the various dimensions of forklifts—such as length, width, height, load capacity, and the impact of different forklift classifications—you can make an informed decision that best suits your operational needs. The right forklift dimensions not only improve maneuverability and productivity but also contribute to the long-term success of your warehouse operations. By carefully considering all of these factors, you can select the perfect forklift for your specific facility, ensuring optimal performance and safety.
