Understanding the essential mini excavator parts and their functions can help you identify potential issues early, ensure your machine operates efficiently, and extend its lifespan. In this guide, we’ll dive into the critical components that make up a mini excavator, so you can keep your machine running smoothly and effectively.

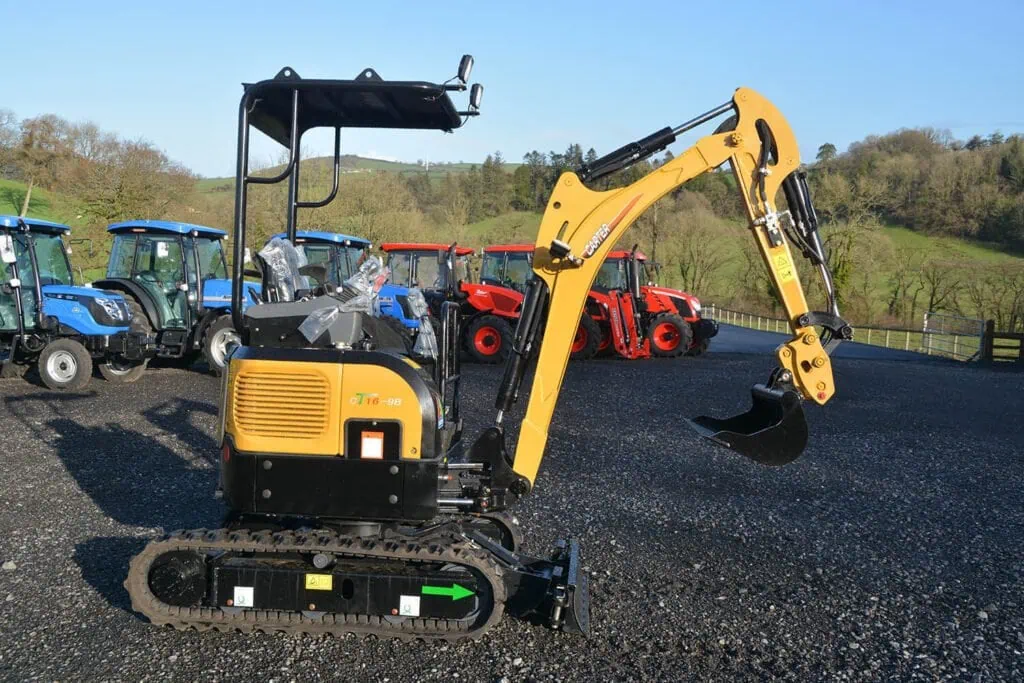

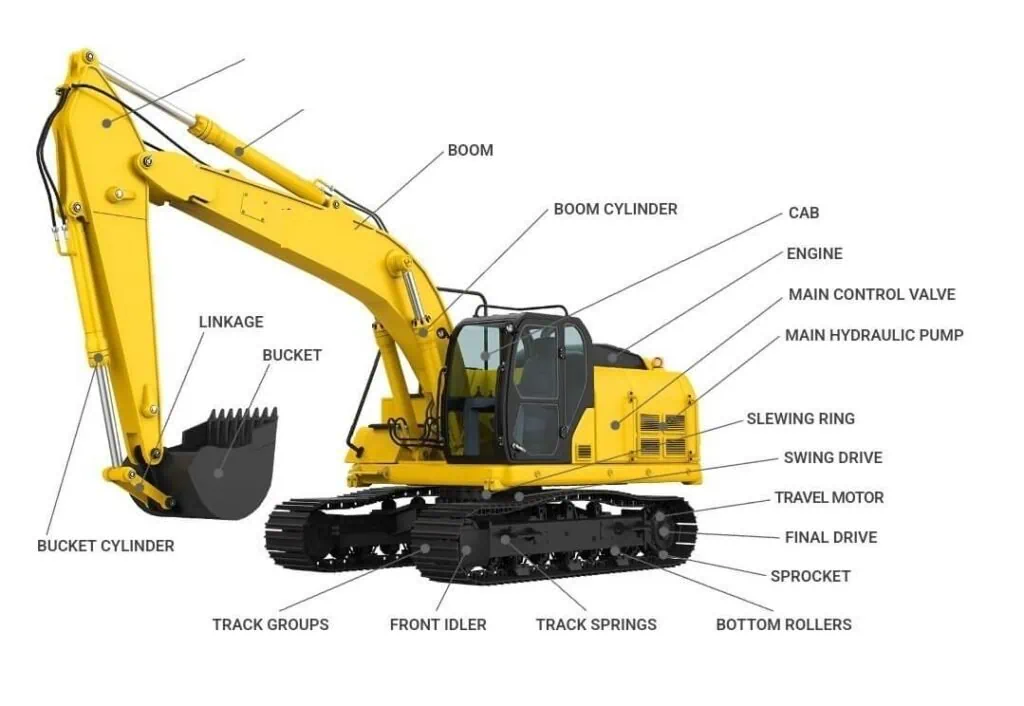

1. Mini Excavator Components: A Breakdown
Mini excavators are composed of several crucial parts that work together to deliver precise and reliable performance. By understanding each part’s role, you’ll be in a better position to maintain, troubleshoot, and upgrade your machine. Here’s a breakdown of the most essential parts and how they work:
- Engine: This is the powerhouse of the mini excavator, determining its overall power and efficiency. A well-functioning engine ensures your machine can tackle tough jobs without overloading.
- Hydraulic System: Powers the various movements of the excavator, including the lifting of the boom and arm. A malfunction in the hydraulic system can make the entire machine ineffective.
- Undercarriage: Provides the mobility and stability needed for the excavator to function on different terrains. Regular maintenance of the undercarriage is essential for avoiding costly repairs.
- Boom, Arm, and Bucket: These are the primary components used for digging and handling materials. They give the excavator its versatility in various work applications.
- Cab and Controls: Where the operator sits and manages all operations. A comfortable and intuitive control system boosts efficiency and reduces operator fatigue.
Each of these components plays a vital role, making maintenance and understanding of their functions essential to keeping your mini excavator performing at its best.
2. Engine: The Powerhouse of a Mini Excavator
The engine in a mini excavator is responsible for generating the power that drives all of the machine’s functions. Without a properly functioning engine, the hydraulic system, lifting capacities, and digging capabilities would be significantly impaired.
- Common Engine Brands: The most common engine brands in mini excavators are Kubota, Yanmar, Perkins, and Caterpillar. These brands offer engines that are built for longevity and high torque.
- Typical Power Range: Mini excavator engines typically range from 10 to 70 horsepower. The power of the engine determines the overall performance of the machine, including its ability to move materials, lift weights, and dig at different depths. For lighter applications, a lower-powered engine may suffice, but more challenging tasks such as hard soil digging or lifting heavy materials require a more powerful engine.
- Maintenance Tip: Regular oil changes are crucial for keeping the engine running smoothly. Additionally, air filters should be replaced regularly to prevent dust and dirt from entering the engine, reducing wear and tear. Keeping the cooling system in good condition is equally important to avoid overheating during prolonged operations.
In short, a powerful engine ensures that your mini excavator can perform efficiently and tackle more demanding jobs, making it a crucial part of the machine.
3. Hydraulic System: The Key to Precision and Power
The hydraulic system is the backbone of your mini excavator’s digging, lifting, and steering capabilities. It uses hydraulic fluid to transmit force to various components such as the boom, arm, bucket, and attachments. A malfunction in the hydraulic system can bring operations to a standstill, making it vital to monitor the system closely.
- Hydraulic Pump: The pump is the heart of the hydraulic system, converting mechanical power into hydraulic fluid power. This pressurized fluid is used to drive cylinders and motors for different functions.
- Control Valves: These valves direct the flow of hydraulic fluid to the necessary parts based on the operator’s commands. Efficient valve operation ensures smooth and precise movement of the excavator’s components.
- Hydraulic Cylinders: Cylinders extend and retract to control movements such as the boom raising and lowering, the arm extending, or the bucket digging. These components provide the necessary force for most of the excavator’s operations.
- Hoses and Fittings: Hydraulic fluid is transported via a network of hoses and fittings that connect the pump, cylinders, and other hydraulic parts. Leaks or blockages in this system can cause a significant loss of performance.
A well-maintained hydraulic system ensures smooth, controlled movements and prevents excessive wear on other critical parts.

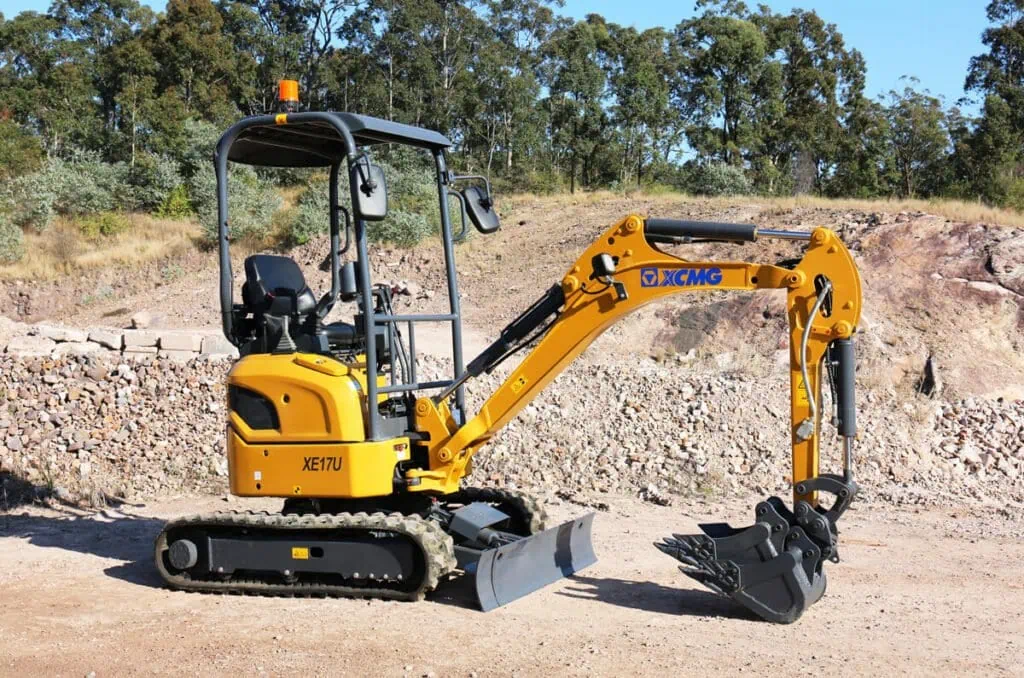

4. Undercarriage: Stability and Mobility
The undercarriage is the foundation of the mini excavator and includes everything that supports the machine’s weight and facilitates movement. Without a solid and functioning undercarriage, your mini excavator would struggle to operate in challenging terrains, such as muddy, rocky, or uneven surfaces.
- Tracks (Rubber or Steel): Mini excavators typically come with either rubber or steel tracks. Rubber tracks are ideal for softer ground, providing excellent traction without damaging delicate surfaces, such as lawns or asphalt. Steel tracks, on the other hand, are better suited for rough terrain and provide superior durability.
- Rollers and Idlers: These parts help guide the tracks as they move around the excavator’s undercarriage. Rollers support the weight of the excavator, while idlers ensure that the tracks remain properly aligned.
- Sprockets: These gears engage with the tracks, driving the movement of the excavator. Regular maintenance of sprockets is critical to prevent track slippage, which can result in expensive repairs.
Maintaining the undercarriage involves ensuring proper track tension and checking for wear on rollers, sprockets, and idlers to avoid costly downtime and repair.

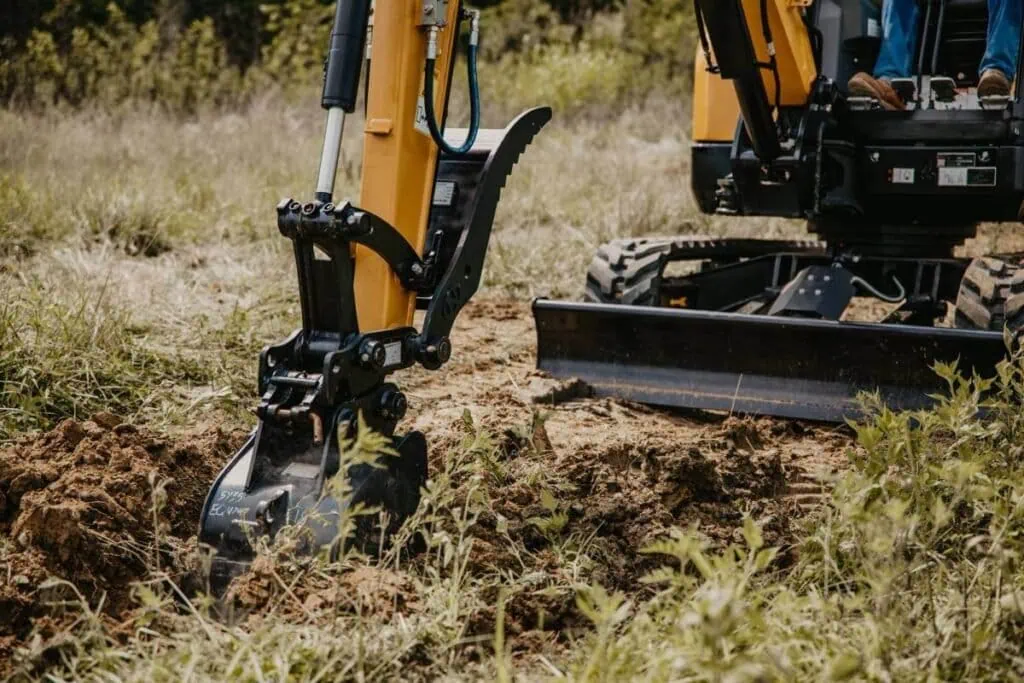

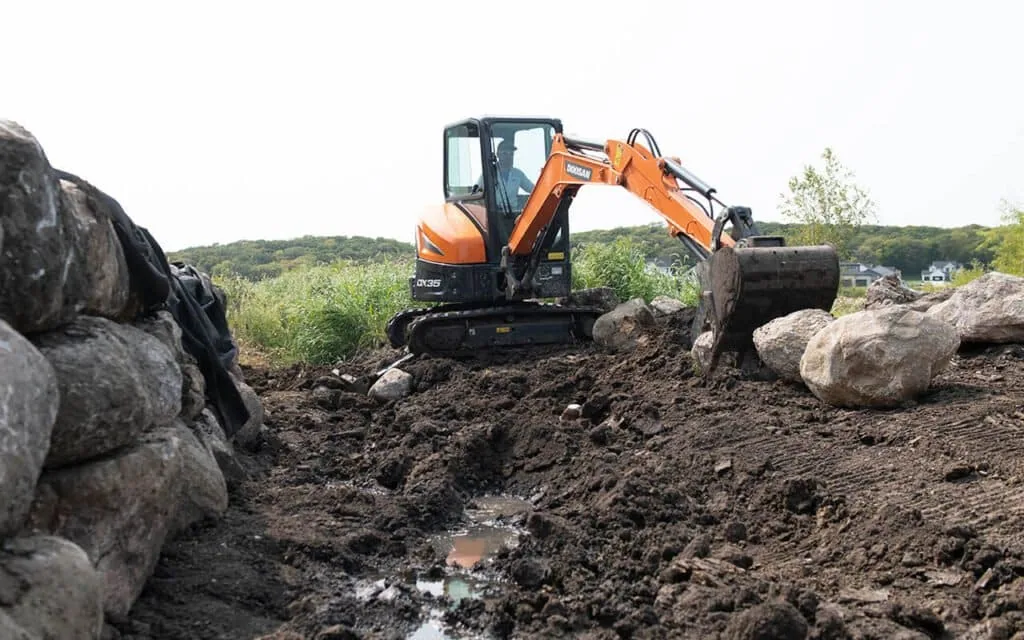

5. Boom, Arm, and Bucket: The Excavator’s Workhorse
The boom, arm, and bucket are the core components of the mini excavator’s digging system, responsible for lifting, digging, and handling materials. The design and strength of these parts determine the mini excavator’s ability to complete specific tasks.
- Boom: The boom is the main arm attached to the excavator’s body and provides height and reach for digging. It is typically made from high-strength steel to withstand the pressure of digging into tough soil.
- Arm (Stick): This is the section that connects the boom to the bucket. It allows for extension and retraction, allowing the operator to reach deeper or more difficult areas.
- Bucket: The bucket is the tool used for digging, and it comes in various sizes and types for different tasks. Standard buckets are used for general excavation, while specialized buckets, such as grading or rock buckets, are used for specific materials.
The size and strength of these components determine the excavator’s digging depth, reach, and lifting capacity. A properly sized bucket ensures maximum digging efficiency.
6. Cab and Controls: The Operator’s Command Center
The cab is where the operator manages all of the excavator’s functions. It’s essential for both comfort and productivity. A well-designed cab reduces operator fatigue and helps with accuracy, while intuitive controls ensure maximum efficiency.
- Levers and Joysticks: These are used to control the movement of the boom, arm, bucket, and tracks. The design of these controls should ensure that the operator can make precise adjustments without strain.
- Seat and Ergonomics: A comfortable seat with adjustable features allows the operator to remain focused on the task at hand. An ergonomic design is essential for long hours of operation.
- Safety Features: The cab is typically equipped with rollover protection (ROPS), visibility enhancements (like cameras and mirrors), and secure seat belts to protect the operator during operation.
Modern mini excavators often come equipped with digital displays that show vital machine information, including fuel levels, hydraulic pressure, and engine status, allowing operators to monitor the health of the machine in real-time.

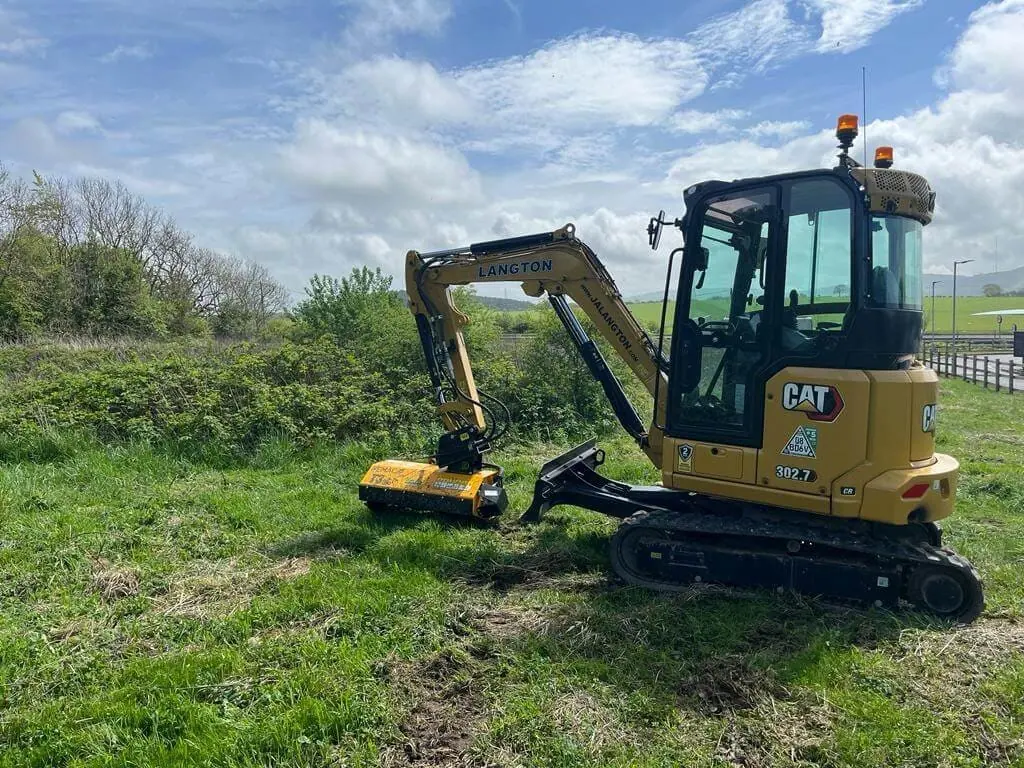

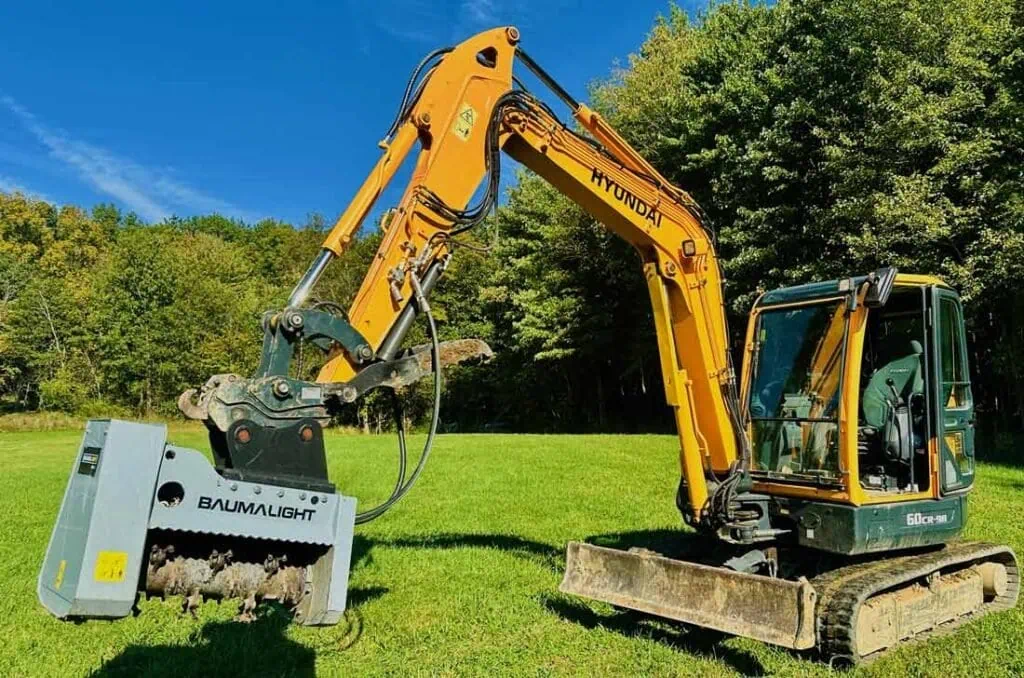

7. Attachments: Expanding Your Mini Excavator’s Capabilities
One of the benefits of owning a mini excavator is its ability to adapt to a wide range of applications by using various attachments. These attachments increase your machine’s versatility, allowing you to tackle tasks like trenching, breaking concrete, and lifting materials.
Some popular mini excavator attachments include:
| Attachment | Function |
|---|

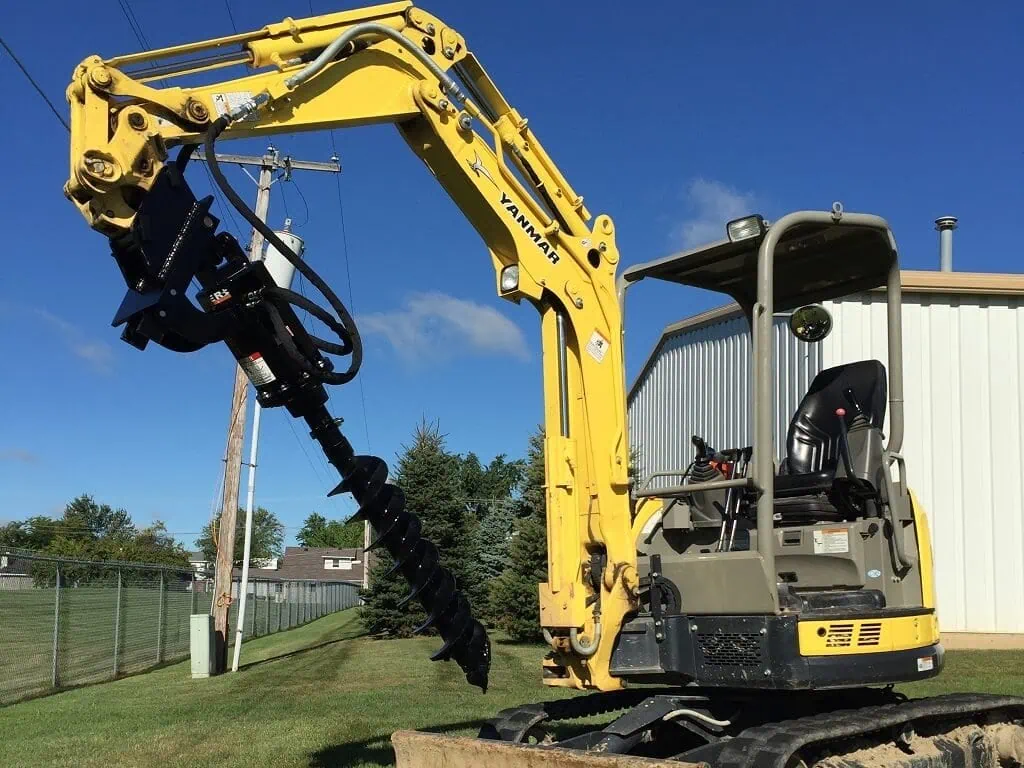

| Auger | Used for drilling holes, ideal for fence posts, sign installation, and landscaping. |
| Breaker | Breaks through concrete, rocks, and other hard surfaces. Ideal for demolition. |
| Grapple | Used for lifting and handling materials such as logs, scrap metal, or debris. |
| Thumb | Provides additional gripping power for picking up objects or materials. |
By selecting the right attachments, you can tailor your mini excavator to suit your specific job requirements.

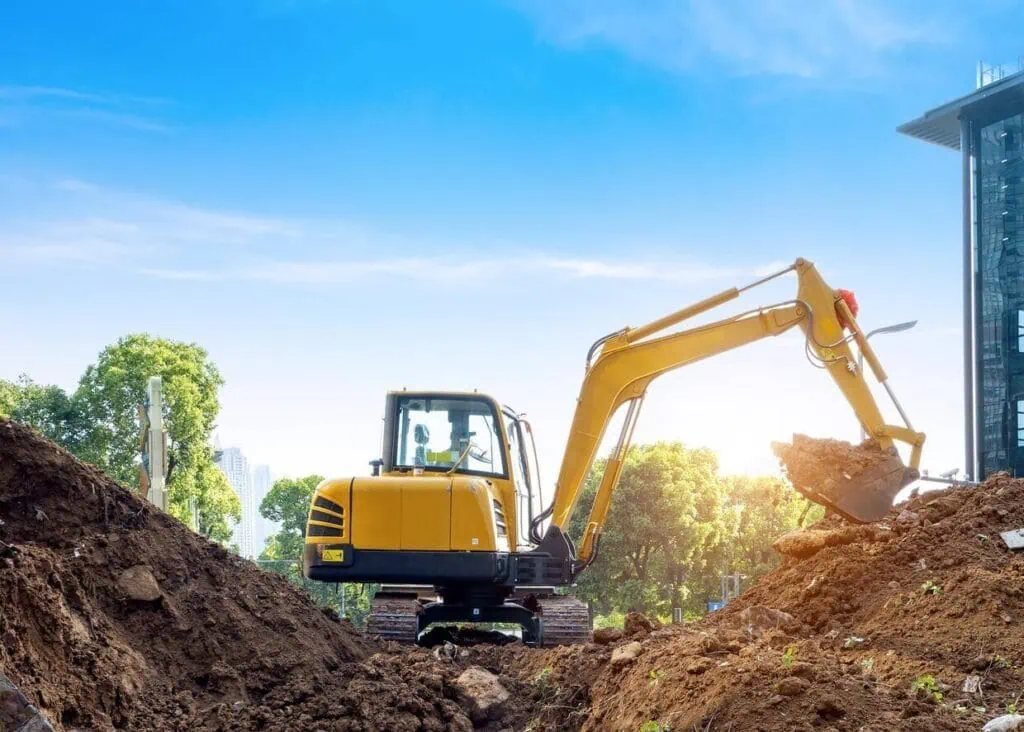

8. Why Knowing Your Mini Excavator Parts Matters
Understanding the essential parts of a mini excavator and their functions allows you to make better decisions regarding machine selection, maintenance, and operation.
- Better Maintenance: Identifying issues with individual components can help you address them early, avoiding expensive repairs.
- Improved Efficiency: With a solid understanding of your mini excavator’s parts, you can operate it more effectively, reducing fuel consumption and improving job site productivity.
- Longevity: Proper care of each component extends the life of your machine, saving you money in the long term.
Staying informed about your excavator’s components ensures that you can maximize its potential and minimize downtime.
Conclusion
A mini excavator is a highly complex machine that depends on many essential parts working together in harmony. By understanding each component’s role—from the engine and hydraulic system to the boom and attachments—you’ll be equipped to take care of your machine properly. Keeping these parts in excellent condition is key to getting the most out of your mini excavator, ensuring efficient, long-lasting performance on any job.
