The number of Caterpillar excavator models can be overwhelming when selecting the right one for your construction project. With so many choices, how can you be sure to get the one that serves your job site needs? Pick the wrong one and you could experience inefficiency, increased costs, and potential operational issues.
Choose the wrong excavator, and you pay too much for a machine that’s too big for your job. Or, you pick an excavator that’s too small and won’t deliver the performance you need. If you’re managing a complicated or large-scale project, time is money. You need an excavator that provides the strength, efficiency, and flexibility to get your job done and keep you on time and on budget.
Throughout this guide, I’ll help you navigate the various models of Caterpillar excavators to determine which one is right for your construction project. By paying attention to features, performance, and how you’ll use the machine, you’ll be able to make the right choice that will deliver results and reliability for years to come.

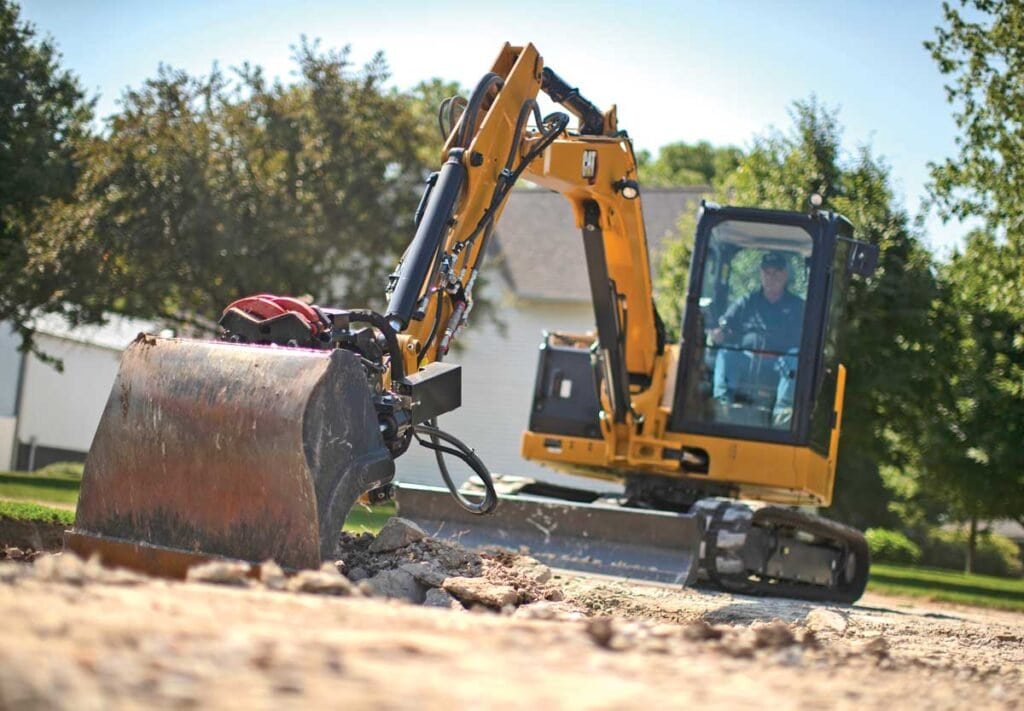

1. Caterpillar Mini Excavators: Ideal for Tight Spaces
Best For: Urban construction, residential projects, and landscaping.
Common Models: CAT 303.5E CR, CAT 305.5E CR, CAT 308 CR.
Caterpillar mini excavators are made to work in small, confined spaces where you can’t get larger equipment. They’re light, easy to transport, and great for digging, grading, and doing some demolition work on smaller projects. They offer a compact solution that is still extremely powerful and fuel efficient, making them perfect for tasks like trenching, landscaping, and placing utilities.
Ключевые особенности:
- Compact size for easy maneuverability in tight spaces.
- Low ground pressure for minimal impact on delicate surfaces.
- Fuel-efficient engines with advanced hydraulics for smooth operation.
Technical Specifications:
| Модель | Эксплуатационная масса | Мощность двигателя | Максимальная глубина копания | Макс. охват |
| CAT 303.5E | 3,890 kg | 36.4 kW | 3,030 mm | 5,270 mm |
| КАТ 305.5Е | 5,580 kg | 40.1 kW | 3,460 mm | 5,650 mm |
| CAT 308 | 8,470 kg | 55.4 kW | 4,170 mm | 7,890 mm |
2. Caterpillar Standard Excavators: Versatility for Mid-Sized Projects
Best For: Roadwork, mid-sized construction, and trenching.
Common Models: CAT 320, CAT 323, CAT 336.
Caterpillar standard excavators deliver the right mix of power, size, and fuel efficiency. They’re perfect for larger jobs but won’t weigh you down when working on projects in urban or residential areas. With a greater digging depth and more reach, these excavators can handle all types of jobs—lifting, digging, and material handling.
Ключевые особенности:
- Superior digging depth and reach.
- High lifting capacity for heavy materials.
- Great fuel efficiency for long-hour operations.
Technical Specifications:
| Модель | Эксплуатационная масса | Мощность двигателя | Максимальная глубина копания | Макс. охват |
| CAT 320 | 20 000 кг | 120 kW | 6,220 mm | 10,900 mm |
| CAT 323 | 23,100 kg | 125 kW | 6,580 mm | 11,220 mm |
| КАТ 336 | 35,600 kg | 145 kW | 7,150 mm | 12,080 mm |

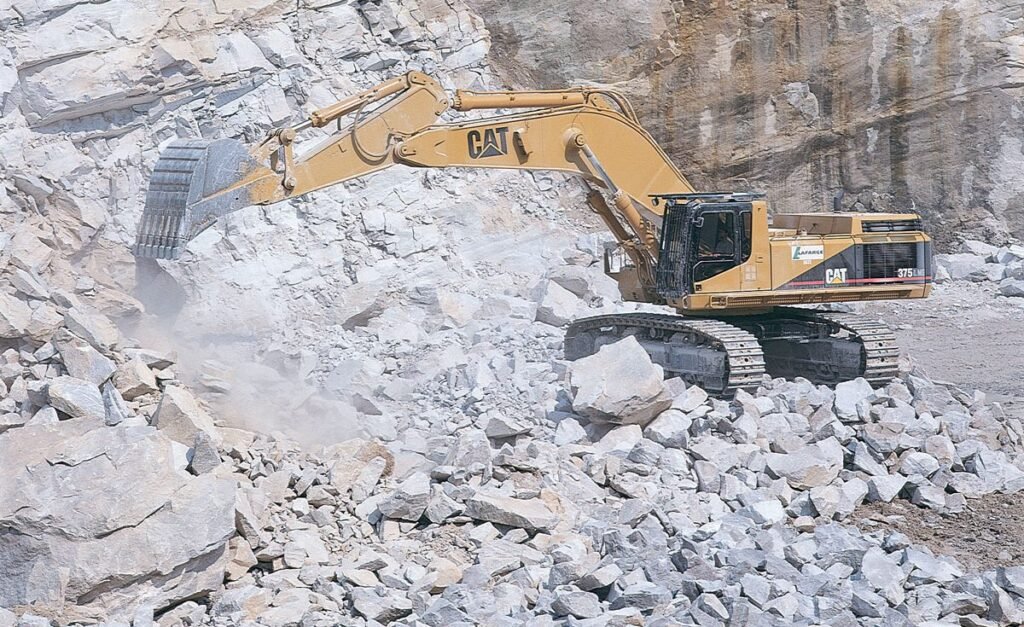

3. Caterpillar Large Excavators: Heavy-Duty Machines for Major Projects
Best For: Large-scale construction, mining, and infrastructure projects.
Common Models: CAT 350, CAT 374, CAT 390.
If you’re working on big projects like mining, building roads, or major infrastructure, Caterpillar large excavators are what you need. These machines are made to handle heavy lifting, deep excavation, and working in tough conditions. With incredible power and lifting capability, these models deliver top-notch performance to help you be productive, no matter how demanding the job.
Ключевые особенности:
- High lifting and digging capacity.
- Designed for extreme conditions and heavy-duty tasks.
- Advanced hydraulic systems for better precision.
Technical Specifications:
| Модель | Эксплуатационная масса | Мощность двигателя | Максимальная глубина копания | Макс. охват |
| CAT 350 | 49,000 kg | 265 kW | 7,650 mm | 14,010 mm |
| CAT 374 | 73,500 kg | 298 kW | 8,090 mm | 15,550 mm |
| CAT 390 | 89,500 kg | 335 kW | 8,300 mm | 16,200 mm |
4. Caterpillar Hybrid Excavators: Eco-Friendly Solutions for Sustainability
Best For: Eco-conscious projects, sustainability-focused construction.
Common Models: CAT 336E H, CAT 330F L.
Caterpillar hybrid excavators pair the traditional diesel engine with electric motors to significantly cut down on fuel usage and emissions, all while still providing outstanding performance. These machines are perfect for projects where being earth-friendly is as important as getting the job done.
Ключевые особенности:
- Hybrid power system for lower fuel consumption.
- Reduced emissions for eco-friendly operations.
- Comparable performance to traditional models, with better fuel economy.
Technical Specifications:
| Модель | Эксплуатационная масса | Мощность двигателя | Максимальная глубина копания | Макс. охват |
| КАТ 336 | 37,700 kg | 210 kW | 7,100 mm | 12,500 mm |
| КАТ 330 | 30,000 kg | 200 kW | 6,000 mm | 11,000 mm |
How to Choose the Right Caterpillar Excavator for Your Needs?
When selecting the best Caterpillar excavator model for your project, keep the following factors in mind:
| Factor | Описание |
| Project Type | For large-scale projects such as digging foundations, ponds, and large trenches, use a full-size excavator. For smaller tasks such as digging trenches for water lines, planting trees, or digging in tight spaces, use a mini-excavator. |
| Местность | Also consider the type of ground you’ll be operating on. If you’re working in rough or uneven terrain, then you’ll need a model with good ground clearance and stability. |
| Capacity Needs | If you need to lift heavy objects or reach deep to pull out a stump or rock, get a large model with the capacity and reach you need. |
| Топливная эффективность | If you’ll be putting a lot of hours on the machine (such as with a rental), look for a model with better fuel efficiency to keep your operating costs down. |

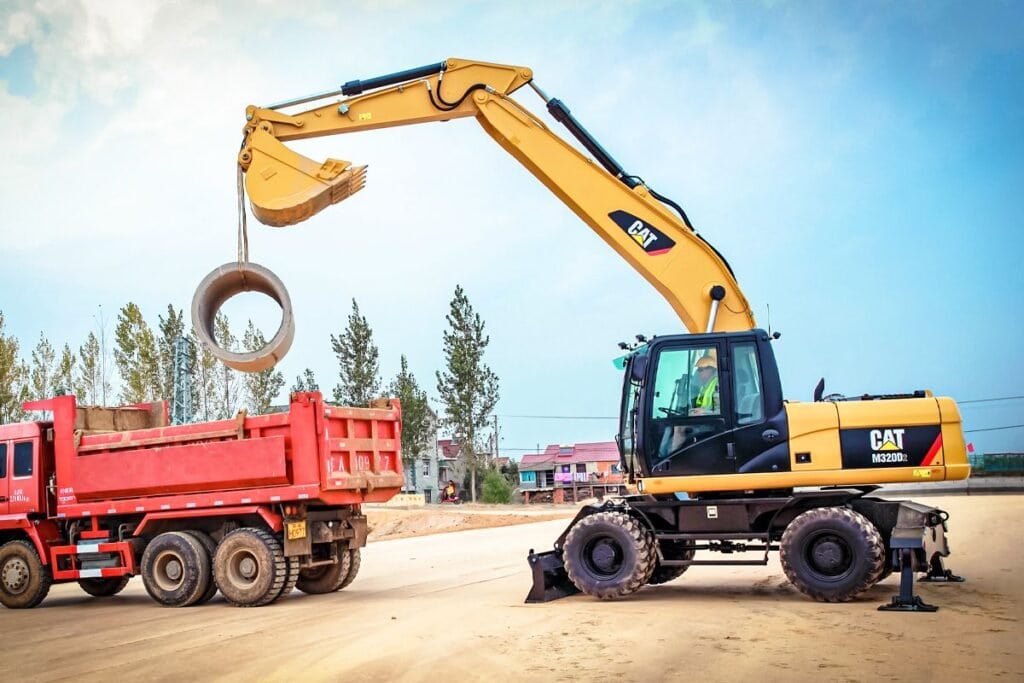

5. Caterpillar Wheel Excavators: Flexible and Mobile Machines
Best For: Urban construction, material handling, and versatile applications.
Common Models: CAT M316, CAT M318, CAT M320.
Caterpillar wheel excavators are designed for mobility. They have wheels instead of tracks and work great for jobs where you have to travel over paved surfaces often. They are versatile and can be used for a wide variety of tasks from loading trucks to precision digging. You’ll often see them used in urban construction, recycling, and forestry activities.
Ключевые особенности:
- Highly mobile, perfect for jobs that require frequent travel.
- Quick setup time with reduced preparation for transport.
- Excellent for material handling with high stability.
Technical Specifications:
| Модель | Эксплуатационная масса | Мощность двигателя | Максимальная глубина копания | Макс. охват |
| CAT M316 | 17,500 kg | 115 kW | 6,200 mm | 9,600 mm |
| CAT M318 | 19,000 kg | 120 kW | 6,300 mm | 10,200 mm |
| CAT M320 | 22,000 kg | 130 kW | 6,500 mm | 11,100 mm |
6. Caterpillar Long Reach Excavators: Perfect for Dredging and Deep Excavation
Best For: Dredging, riverbed excavation, and deep digging applications.
Common Models: CAT 390F L, CAT 349FL, CAT 336F L.
Caterpillar long reach excavators are designed for digging in where you need to have that extended reach and deep digging capability. These machines are equipped with special booms and sticks that allow them to reach out 30 feet or more. They’re great for dredging, digging a pond, working in a trench, or in situations where you can’t get a standard machine close enough.
Ключевые особенности:
- Extended reach for accessing deep and far-off digging areas.
- Specially reinforced design to handle extended booms.
- Often used in specialized applications like dredging or deep trenching.
Technical Specifications:
| Модель | Эксплуатационная масса | Мощность двигателя | Максимальная глубина копания | Макс. охват |
| CAT 390F L | 53,000 kg | 300 kW | 7,900 mm | 15,600 mm |
| CAT 349FL | 48,000 kg | 270 kW | 7,500 mm | 14,300 mm |
| CAT 336F L | 36,600 kg | 190 kW | 6,700 mm | 12,500 mm |
7. Caterpillar Demolition Excavators: Built for Heavy-Duty Destruction
Best For: Demolition, recycling, and heavy-duty tearing down of structures.
Common Models: CAT 374F, CAT 349F, CAT 330F.
Caterpillar demolition excavators have a reinforced frame and specialty attachments like hydraulic hammers and shears. These machines are built for extreme durability and power. If you have a job that requires you to beat the
heck out of something and it’s too big to put in the dumpster, a demolition excavator is just the ticket. They are ideal for demolition and recycling of materials.
Ключевые особенности:
- Reinforced frames and heavy-duty attachments for demolition.
- High breakout force to tear down structures effectively.
- Versatility in working with a variety of attachments for different types of demolition.
Technical Specifications:
| Модель | Эксплуатационная масса | Мощность двигателя | Максимальная глубина копания | Макс. охват |
| CAT 374F | 73,500 kg | 300 kW | 7,200 mm | 14,800 mm |
| CAT 349F | 49,000 kg | 270 kW | 6,900 mm | 12,800 mm |
| CAT 330F | 30,000 kg | 200 kW | 6,200 mm | 11,200 mm |
8. Caterpillar Excavator Models List
Here is an extended list of Caterpillar Excavator Models, ranging from mini excavators to larger models, with their key specifications for a comprehensive comparison:
| Модель | Эксплуатационная масса | Мощность двигателя | Емкость ковша | Максимальная глубина копания | Макс. охват | Applications |
|---|
| CAT 301.5 | 1,780 kg | 15.5 kW | 0.03 – 0.05 m³ | 2,250 mm | 3,450 mm | Mini excavation, tight spaces, residential sites |
| CAT 302.7 CR | 2,700 kg | 20.5 kW | 0.05 – 0.08 m³ | 2,535 mm | 3,640 mm | Compact digging, landscaping, light construction |
| CAT 303.5E CR | 3,450 kg | 23.5 kW | 0.08 – 0.12 m³ | 2,715 mm | 4,215 mm | Landscaping, utility work, trenching |
| CAT 305E CR | 5,600 kg | 35.3 kW | 0.11 – 0.16 m³ | 3,400 mm | 5,395 mm | General construction, digging, trenching |
| CAT 308E CR | 8,200 kg | 55.4 kW | 0.18 – 0.26 m³ | 4,080 mm | 6,070 mm | Medium construction, landscaping, material handling |
| CAT 320 | 22,500 kg | 130 kW | 0.80 – 1.20 m³ | 6,300 mm | 10,300 mm | General construction, roadwork, digging, lifting |
| CAT 320 GC | 20 000 кг | 92 kW | 0.80 – 1.00 m³ | 5,880 mm | 10,100 mm | Cost-effective, light-duty work, construction |
| КАТ 330 | 24,600 kg | 155 kW | 0.90 – 1.50 m³ | 6,750 mm | 10,900 mm | Heavy construction, excavation, roadworks |
| КАТ 336 | 34,500 kg | 210 kW | 1.00 – 2.00 m³ | 7,100 mm | 12,000 mm | Mining, material handling, heavy-duty excavation |
| CAT 349 | 46,800 kg | 265 kW | 1.50 – 2.80 m³ | 7,500 mm | 13,100 mm | Large-scale infrastructure, heavy excavation |
| CAT 390F | 53,000 kg | 300 kW | 1.90 – 3.20 m³ | 7,900 mm | 15,600 mm | Heavy-duty digging, trenching, dredging |
| CAT 374F | 73,500 kg | 330 kW | 2.00 – 3.60 m³ | 8,300 mm | 14,700 mm | Demolition, large-scale excavation, material handling |
| CAT 385C | 81,000 kg | 368 kW | 3.00 – 4.50 m³ | 8,600 mm | 16,000 mm | Large excavation, mining, quarrying |
| CAT 390F L | 53,000 kg | 300 kW | 2.00 – 3.40 m³ | 8,100 mm | 14,900 mm | Long reach, deep trenching, specialized excavation |
| CAT 390F UHD | 56,000 kg | 320 kW | 2.50 – 3.80 m³ | 8,600 mm | 15,400 mm | Underwater excavation, deep trenching, marine works |
| CAT 950 GC | 18,000 kg | 173 kW | 2.30 m³ | – | – | Wheel loader, versatile construction work |
Ключевые особенности:
- Mini Excavators (e.g., CAT 301.5, CAT 302.7 CR): These models are ideal for tight spaces and light-duty tasks such as landscaping, trenching, and utility work. They are compact, easy to maneuver, and require less storage space.
- Mid-Sized Excavators (e.g., CAT 320, CAT 330): Suitable for general construction, these models provide a balance between power and size. They can handle a variety of jobs, including roadwork, digging, and lifting.
- Large Excavators (e.g., CAT 374F, CAT 385C): Designed for heavy-duty excavation, mining, and material handling, these machines excel in large-scale infrastructure projects, demolition, and quarrying.
Applications by Size:
- Mini Excavators: Ideal for residential construction, landscaping, and utility work where space is limited.
- Medium Excavators: Perfect for road construction, general excavation, and small to mid-sized construction projects.
- Large Excavators: Best for large-scale infrastructure development, mining, and handling heavy materials.
Choosing the Right Model:
При выборе Caterpillar Excavator, it’s essential to consider the following factors:
- Job Size and Scope: Caterpillar mini excavators are suitable for residential and light commercial work, while larger models are necessary for digging in deep or large-scale environments.
- Местность: If your site involves uneven or challenging terrain, opting for a more powerful and larger model may be beneficial.
- Bucket Capacity and Reach: Larger jobs that involve moving large quantities of earth or materials will require larger bucket capacities and a greater reach.
By understanding the specifications and applications of different Caterpillar Excavator Models, you can choose the most suitable machine for your construction needs, ensuring optimal performance and efficiency on the job site.
Conclusion: How to Choose the Best Caterpillar Excavator Model for Your Project
Choosing the Caterpillar excavator model that’s best suited for your project requires evaluating several key factors:
- Project Type: Consider the specific nature of your job site. If you’re working in tight spaces, mini excavators are ideal. For large-scale construction, you’ll need a larger machine like a CAT 350 or CAT 390.
- Workload: Think about the tasks the excavator will handle. Are you lifting heavy materials, digging deep trenches, or performing demolition? Caterpillar has models tailored to each need.
- Mobility: If you’re moving between different locations on paved surfaces, a wheel excavator may be the best choice. If you’re working in rugged terrain, a tracked excavator provides superior stability.
- Efficiency: Don’t forget to account for fuel efficiency and environmental concerns. If sustainability is a priority, hybrid models like the CAT 336E H are perfect for reducing fuel consumption and emissions.
By carefully considering the specifications and your project requirements, you can select the Caterpillar excavator model that not only meets but exceeds your expectations for performance, reliability, and efficiency. Whether you’re handling residential, industrial, or large-scale infrastructure projects, there’s a Caterpillar excavator ready to help you tackle the job with ease.
