Taian Hiosen Machinery Co, Ltd
China Top telehandler manufacturer
- Meet ISO / CE / EPA Standards,ect.
- factory direct & 1-on-1 engineer support
- Pre-sales and after-sales service & 12-month warranty
Hot Sale telehandler forklift

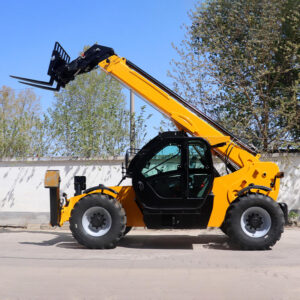

Maximum capacity of 3,000 kg, a maximum lifting height of 7 m, and a maximum outreach of 3.2 m.
- Overall Length: 5.87 m
- Overall Width: 2.2 m
- Overall Height: 2.55 m
- Unladen Weight: 7600 kg
- Lifting Time: 10 s
- Lowering Time: 7 s

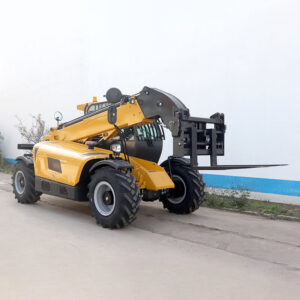

Maximum capacity of 3,500 kg, a maximum lifting height of 7 m, and a maximum outreach of 3.2 m.
- Overall Length: 5.87 m
- Overall Width: 2.2 m
- Overall Height: 2.55 m
- Unladen Weight: 7600 kg
- Lifting Time: 10 s
- Lowering Time: 7 s

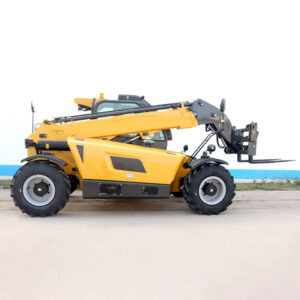

Maximum capacity of 3,500 kg, a maximum lifting height of 10 m, and a maximum outreach of 6.1 m
- Overall Length: 7 m
- Overall Width: 2.2 m
- Overall Height: 2.55 m
- Unladen Weight: 9500 kg
- Lifting Time: 10 s
- Lowering Time: 7 s
Maximum capacity of 4,000 kg, a maximum lifting height of 7 m, and a maximum outreach of 3.2 m.
- Overall Length: 5.87 m
- Overall Width: 2.2 m
- Overall Height: 2.55 m
- Unladen Weight: 8100 kg
- Lifting Time: 10 s
- Lowering Time: 7 s
Maximum capacity of 4,000 kg, maximum lifting height of 10.6 m, and maximum outreach of 3.2 m.
- Overall Length: 7 m
- Overall Width: 2.2 m
- Overall Height: 2.55 m
- Unladen Weight: 10300 kg
- Lifting Time: 10 s
- Lowering Time: 7 s
Maximum capacity of 4,00 kg, a maximum lifting height of 13.8 m, and a maximum outreach of 7 m.
- Overall Length: 7.62 m
- Overall Width: 2.35 m
- Overall Height: 2.55 m
- Unladen Weight: 13000 kg
- Lifting Time: 16 s
- Lowering Time: 12.4 s
Maximum capacity of 4,000 kg, maximum lifting height of 17.6 m, maximum outreach of 12.8 m.
- Overall Length: 7.62 m
- Overall Width: 2.35 m
- Overall Height: 2.55 m
- Unladen Weight: 13600 kg
- Lifting Time: 16 s
- Lowering Time: 12.4 s
Maximum capacity of 5,000 kg, maximum lifting height of 9.8 m, and maximum outreach of 5 m.
- Overall Length: 7.62 m
- Overall Width: 2.35 m
- Overall Height: 2.55 m
- Unladen Weight: 12800 kg
- Lifting Time: 16 s
- Lowering Time: 12.4 s
Maximum capacity of 5,00 kg, a maximum lifting height of 13.8 m, and a maximum outreach of 8 m.
- Overall Length: 7.82 m
- Overall Width: 2.35 m
- Overall Height: 2.65 m
- Unladen Weight: 13600 kg
- Lifting Time: 26 s
- Lowering Time: 26 s
Maximum capacity of 5,000 kg, maximum lifting height of 17.55 m, maximum outreach of 11.2 m.
- Overall Length: 7.82 m
- Overall Width: 2.35 m
- Overall Height: 2.65 m
- Unladen Weight: 14100 kg
- Lifting Time: 35 s
- Lowering Time: 35 s
Maximum capacity of 6,000 kg, maximum lifting height of 17.6 m, and maximum outreach of 12 m.
- Overall Length: 8.12 m
- Overall Width: 2.7 m
- Overall Height: 2.76 m
- Unladen Weight: 17000 kg
- Lifting Time: 35 s
- Lowering Time: 35 s
Maximum capacity of 6,000 kg, maximum lifting height of 17.6 m, and maximum outreach of 12 m.
- Overall Length: 8.12 m
- Overall Width: 2.7 m
- Overall Height: 2.76 m
- Unladen Weight: 17000 kg
- Lifting Time: 35 s
- Lowering Time: 35 s
specifications
Here is a comprehensive overview of the specifications for different telehandler models. Allowing you to easily compare models and choose the one that best fits their construction or material-handling needs.
Model | T3007 | T3507 | T3510 | T4007 | T4010 | T4014 | T4018 | T5010 | T5014 | T5018 | T6018 |
Engine model | YN38GBZ | YN38GBZ | YCD4M22T-105 | YCD4J22T-115 | YCD4J22T-115 | YCD4J22T-115 | YCD4J22T-115 | YCD4J22T-125 | YCD4J22T-125 | YCD4J22T-125 | 1PG605 |
Max. travel speed | 35 km/h | 35 km/h | 35 km/h | 35 km/h | 35 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h | 40 km/h |
Tires type | Pneumatic | Pneumatic | Pneumatic | Tubeless | Tubeless | Tubeless | Tubeless | Semi-solid | Tubeless | Tubeless | Tubeless |
Engine oil | 5.5L | 5.5L | 5.5L | 5.5L | 5.5L | 5.5L | 5.5L | 5.5L | 5.5L | 5.5L | 5.5L |
Hydraulic oil | 170L | 170L | 170L | 170L | 170L | 170L | 170L | 170L | 170L | 170L | 170L |
Fuel tank | 195L | 195L | 195L | 195L | 195L | 195L | 195L | 195L | 195L | 195L | 195L |
Telehandler Standard Features
All our telehandler models come with robust two- to four-section telescopic booms, powerful engines (76–110 KW), and luxurious operator cabins equipped with LED lights, safety tools, 10-inch front/rear cameras, multimedia displays, and climate control. Standard features include hydraulic quick couplers, automatic fork leveling, electronic drive and boom control, four-wheel drive with multiple steering modes, high-strength steel booms and frames, heavy-duty axles, adjustable seats and steering, advanced hydraulic systems, and sliding forks—ensuring both safety and efficiency across lifting capacities from 3 to 6 tons and lifting heights up to 17.6 m.
Fully Customizable
Custom telehandler Suits Your Projects
Our telehandlers support a wide range of customization options to meet different market requirements and working conditions. Customers can choose from multiple engine brands and emission standards, as well as upgrade key systems such as hydraulics, drive systems, axles, tires, and operator comfort features.
- Engine (Yuchai / Cummins / Perkins / Yanmar / Fiat / Kohler / YN)
- Emission Standards (Stage II / Stage III / Stage V / EPA Tier 4)
- Hydraulic System (Load-sensing / Electro-proportional control)
- Hydrostatic Drive System (Domestic / Danfoss)
- Axles & Braking (Heavy-duty / Wet brake axle)
- Tires (Solid / Vacuum / Different sizes)
Taian Hiosen Machinery Co, Ltd
HIOSEN is a professional telehandler manufacturer based in Shandong, China. The factory covers more than 6,000 square meters and is equipped with modern production workshops, advanced machinery, and efficient assembly lines. With a skilled technical team and solid manufacturing experience, the company has an annual production capacity of over 1,200 telehandlers. From product design and engineering to assembly, inspection, and export, each machine is produced under strict quality control to ensure reliable performance and durability for customers worldwide.
