3 Ton telehandler Forklift

Hot Sale 3 ton telehandler

Explore the key specifications of our 3-ton telehandler, including lifting capacity, reach, dimensions, and advanced features—designed to help you choose the right machine with confidence.

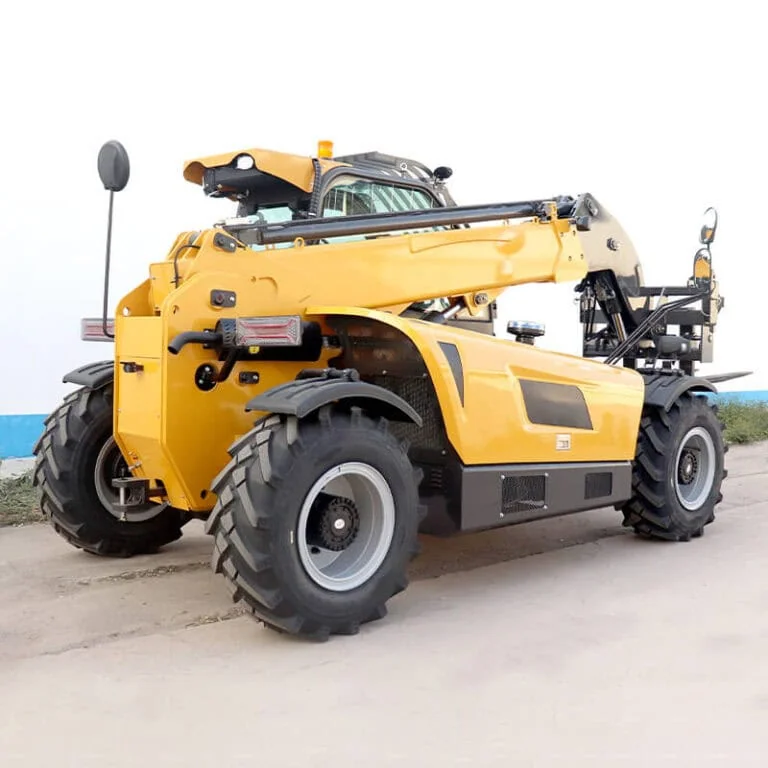

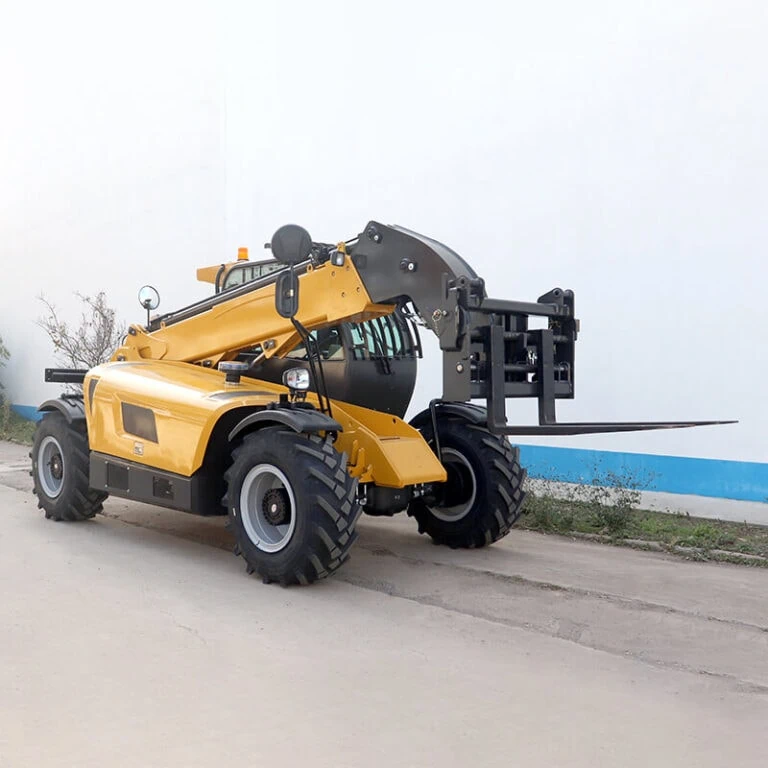

This telehandler is equipped with a two-section telescopic boom and powered by a Yunnei YN38GBZ 76 kW engine. It features hydraulic pilot control and a standard cab configuration, including LED lights, an emergency window breaker, fire extinguiser, rear sliding window, and a 10-inch display with driving and reversing camera, plus rear and right-front cameras. The machine adopts electronic travel control, automatic fork leveling, and electric boom extension.

It comes with 16/70-20 tires, a pneumatic brake axle with 10-ton single-axle capacity, and a specially designed heavy-duty telehandler transmission (4F/4R). The telehandler offers four-wheel drive and three steering modes: front-wheel steering, four-wheel steering, and crab steering, providing excellent maneuverability.

Additional features include a plate-fin radiator, adjustable instrument steering column, luxury adjustable seat, hydraulic quick coupler, high-quality rubber hoses (Xiangliu/Continental type with protective sleeves), and a frame made from 355 manganese steel. The telescopic boom is constructed from BS700 high-strength special steel. The rated load capacity is 3 tons, equipped with 1220 mm sliding pallet forks, and the lifting height can be customized according to requirements.

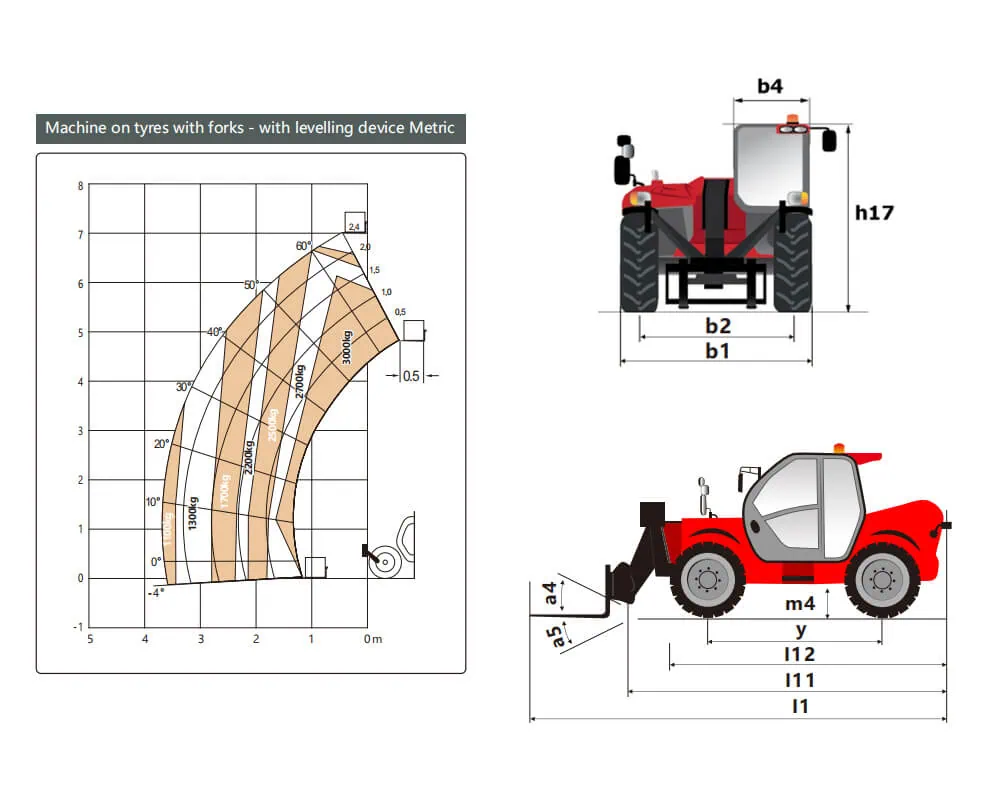

Hot Sale T3007 specification

Here is a comprehensive overview of the specifications for the T3007 telehandler, allowing you to clearly understand its configuration and choose the right solution for your construction or material-handling needs.

Max. capacity

3000 kg

Max. lifting height

7.0 m

Max. outreach

3.2 m

Overall length to carriage

4.65 m

Length to face of forks

5.87 m

Min transport size

4.35 m

Overall width

2.2 m

Track width

1.78 m

Overall height

2.55 m

Wheelbase

3.15 m

Ground clearance

0.35 m

Overall cab width

0.84 m

Tilt-up angle

12°

Tilt-down angle

90°

External turning radius

4.25 m

Unladen weight

7600 kg

Tire type

Pneumatic

Standard tires

16/70-20

Forks

1220 mm × 125 mm / 50 mm

Lifting

10 s

Lowering

7 s

Extension

12 s

Retraction

8.6 s

Crowd

4.8 s

Dump

3.4 s

Engine brand

Yunnei

Engine norm

National II

attachments

Our Telehandler supports a wide range of customized attachments to meet different working conditions.

3007 attachment

Custom Attachments for Telehandler

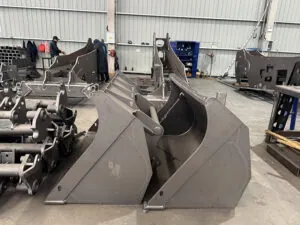

The Telehandler supports a range of practical attachments, including pallet forks, fork positioners, general-purpose buckets, 4-in-1 buckets, extension jibs, hook jibs, truss booms, and work platforms (man baskets). Optional bale clamps and bale spikes are also available for agricultural applications. These quick-change attachments enable efficient lifting, loading, stacking, and material handling, allowing one machine to adapt to construction sites, farms, and warehouse operations.

Fully Customizable

Custom telehandler Suits Your Projects

Our telehandlers support a wide range of customization options to meet different market requirements and working conditions. Customers can choose from multiple engine brands and emission standards, as well as upgrade key systems such as hydraulics, drive systems, axles, tires, and operator comfort features.

China Top telehandlers factory

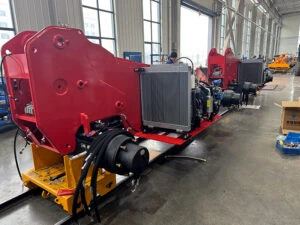

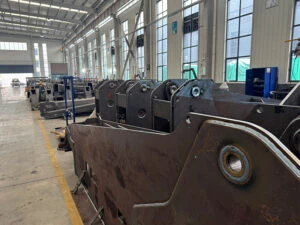

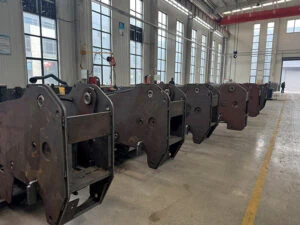

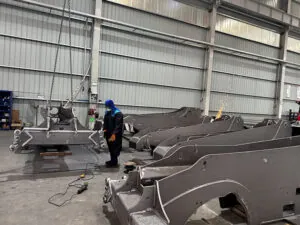

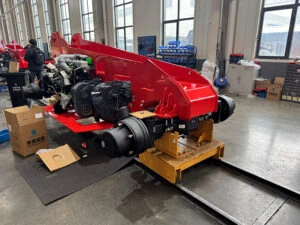

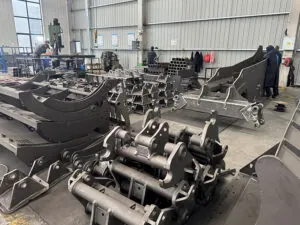

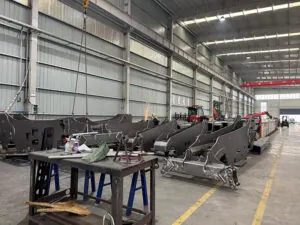

We are a professional telehandler manufacturer based in Shandong, China. The factory covers more than 6,000 square meters and is equipped with modern production workshops, advanced machinery, and efficient assembly lines. With a skilled technical team and solid manufacturing experience, the company has an annual production capacity of over 1,200 telehandlers. From product design and engineering to assembly, inspection, and export, each machine is produced under strict quality control to ensure reliable performance and durability for customers worldwide.

Welcome to visit Us

We welcomes you to visit our factory to see the telehandler production process and experience our manufacturing capabilities firsthand.

delivery & logistics

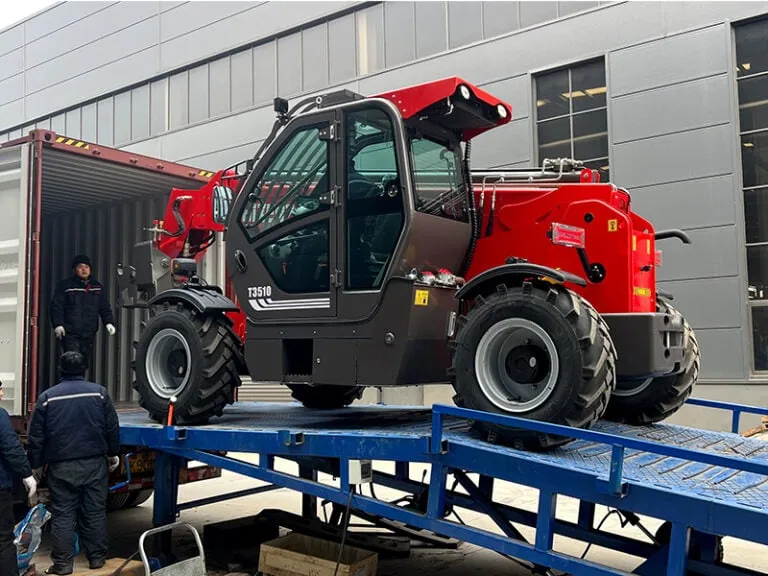

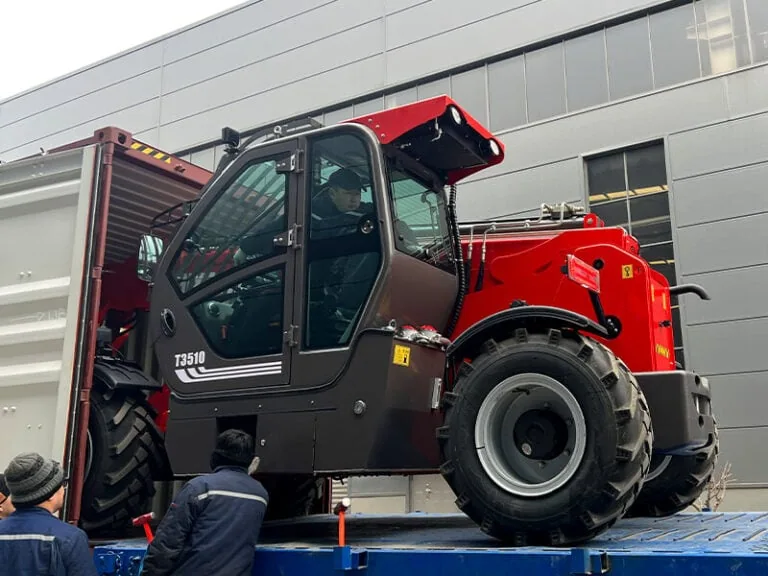

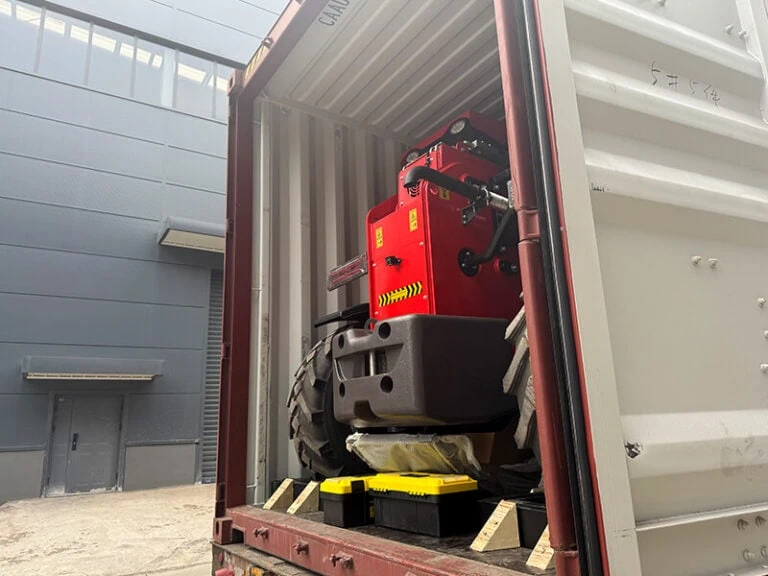

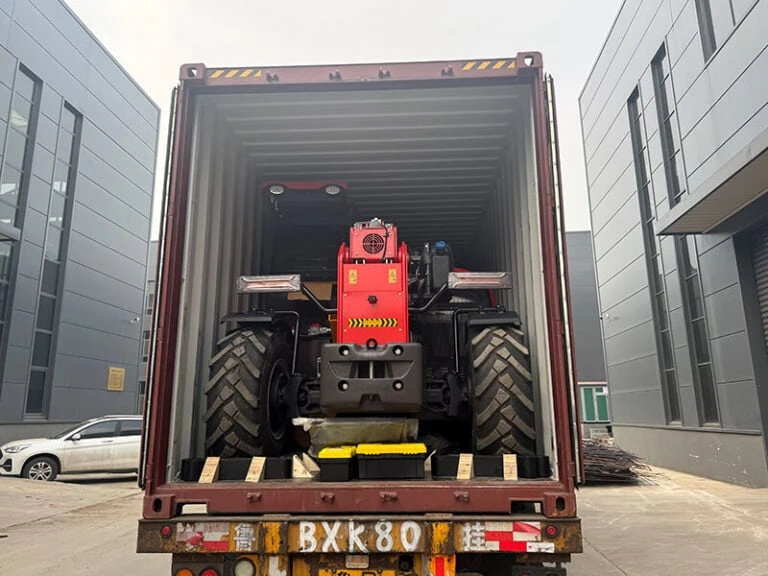

Our telehandlers are shipped by container, providing a convenient and efficient logistics solution for international delivery.

Most Popular Questions.

We have listed some questions you may ask. If you have more inquiries about the telehandlers, please send an inquiry to contact us.

Yuchai / Cummins / Perkins / Yanmar / Fiat / Kohler / YN

All machines are manufactured under ISO9001 quality management standards and certified with CE, SGS, and EAC to meet international market regulations.

Available attachments include pallet forks, buckets, work platforms, crane jibs, grabs, and winches, allowing multi-functional usage.

They are widely used in construction sites, farms, warehouses, ports, material handling yards, and high-altitude operations.

Our telehandlers offer load capacities ranging from 3 tons to 6 tons, suitable for construction, agriculture, warehousing, and industrial applications.

Yes. We offer technical support, spare parts supply, and professional after-sales guidance to ensure long-term machine performance and customer satisfaction.

Standard lifting heights range from 7 meters to 18 meters. Custom lifting heights can be provided based on project requirements.

What is 3 Ton Telehandler Construction?

Choosing the wrong lifting equipment slows construction, increases costs, and wastes labor. Many contractors need compact power but struggle to find the right solution.

A 3 ton telehandler construction refers to a compact telescopic lifting machine designed to handle materials on small to medium job sites. It combines forklift functionality with extended reach, allowing operators to lift, move, and place loads efficiently. This type of telehandler improves productivity, reduces labor, and works well in confined construction environments.

Let’s explore applications, benefits, costs, and limitations before choosing the right model.

What Jobs Is A 3 Ton Telehandler Construction Machine Best Suited For?

A 3-ton capacity is ideal for contractors working in limited spaces but still needing reliable lifting performance. Many users compare a mini telehandler with larger machines and discover compact models offer better maneuverability. These machines are widely used across construction, agriculture, and material handling operations where flexibility matters more than extreme lifting capacity.

A 3 ton telehandler construction machine is best for transporting pallets, loading materials, roofing work, and handling equipment. It can replace traditional telehandler forklift solutions while offering extended reach. This makes it ideal for small construction projects and warehouse-related applications.

On real job sites, a telehandler machine can move bricks, cement bags, and steel pipes efficiently. Contractors often choose a telehandler small model because it fits narrow access points and uneven terrain. Attachments such as forks, jibs, and a telehandler with bucket expand functionality. Compared with conventional forklifts, telescopic handlers provide better height access and forward reach. Many buyers searching for mini telehandler for sale prefer this size because it balances cost and performance. This flexibility reduces labor requirements and increases operational efficiency on daily construction tasks.

How Does A 3 Ton Telehandler Construction Model Compare With Larger Telehandlers?

Contractors frequently debate whether a larger telescopic handler is necessary. While bigger machines offer higher lifting capacity, they often increase fuel consumption and reduce flexibility. A compact solution like a telescopic telehandler provides sufficient performance for most small and medium projects.

Compared with large telehandlers, a 3-ton model offers easier transport, lower operating costs, and improved maneuverability. It performs well in confined spaces while maintaining enough lifting capacity for general construction tasks.

Larger telescopic handler forklifts require wider job sites and stronger ground conditions. Transporting them also increases logistics expenses, especially for export markets. In contrast, a compact telehandler can often fit into standard containers, lowering shipping costs. This advantage is valuable for distributors searching for telehandler for sale opportunities in developing markets. Additionally, comparing telehandler vs forklift shows telehandlers provide reach and height advantages, while forklifts mainly handle ground-level loads. A 3-ton model bridges the gap by combining reach, mobility, and affordability, making it a practical investment for contractors and distributors alike.

What Features Should You Check Before Buying A 3 Ton Telehandler Construction Machine?

Buyers evaluating a telehandler should focus on quality, durability, and performance. Not all machines deliver the same reliability, especially when sourcing internationally. Checking technical specifications helps reduce downtime and long-term maintenance costs.

When selecting a telehandler machine, review engine brand, hydraulic system quality, lifting height, and certification. A reliable telescopic handler should also offer strong boom stability and dependable after-sales support.

It is important to verify CE certification and inspect welding quality. Buyers should also confirm spare parts availability and delivery time. Many customers comparing telehandler price focus only on cost, but durability matters more in long-term operations. A telehandler forklift for sale with high-quality components reduces maintenance expenses. Additionally, consider attachment compatibility, especially if using a telehandler with bucket or pallet forks. These features improve versatility and allow the machine to handle multiple job site tasks efficiently.

Is A 3 Ton Telehandler Construction Machine Cost-Effective?

Cost-effectiveness is a major factor for contractors and distributors. A compact mini telehandler typically offers lower purchase costs while maintaining strong performance. This makes it attractive for companies balancing budget and productivity.

A 3 ton telehandler is cost-effective due to its affordable telehandler price, reduced fuel consumption, and wide application range. It serves construction companies, rental businesses, and agricultural users.

Because of its versatility, a telehandler small model attracts diverse customers. Distributors offering mini telehandler for sale can target broader markets. Lower shipping costs improve profitability, especially when exporting. Compared to heavy equipment, compact telescopic handlers also reduce maintenance costs. Buyers searching online for telehandler for sale often prioritize machines that balance performance and affordability. This makes 3-ton models a strong choice for growing markets in construction and material handling industries.

What Are The Disadvantages Of A Telehandler?

Despite their versatility, telehandlers also have limitations. Buyers should understand these drawbacks before making a purchasing decision. This ensures the selected machine meets operational requirements.

The main disadvantages include limited lifting capacity compared to cranes, reduced stability at full extension, and higher maintenance costs. A telehandler forklift also requires trained operators for safe operation.

When the boom extends fully, stability decreases, especially on uneven terrain. Operators must follow load charts carefully. Hydraulic systems increase maintenance complexity compared with standard forklifts. Additionally, comparing telehandler vs forklift shows forklifts may be simpler for indoor warehouse use. However, choosing the right telescopic telehandler capacity—such as a 3-ton model—can reduce these risks. With proper training and maintenance, most disadvantages can be effectively managed while maintaining productivity.

Summary

A 3 ton telehandler construction machine delivers flexibility, affordability, and reach, making it ideal for contractors seeking compact lifting performance with versatile applications.
