Hot Sale 6 ton telehandler
Discover the key specifications of our 6-ton telehandler, including lifting capacity, maximum reach, machine dimensions, and performance features—engineered for powerful material handling in demanding job sites.

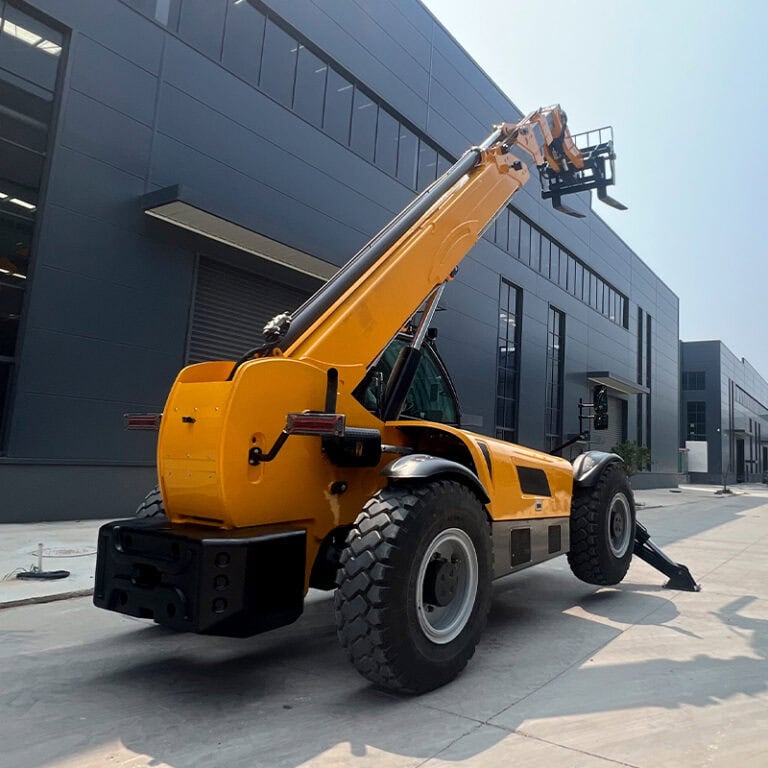

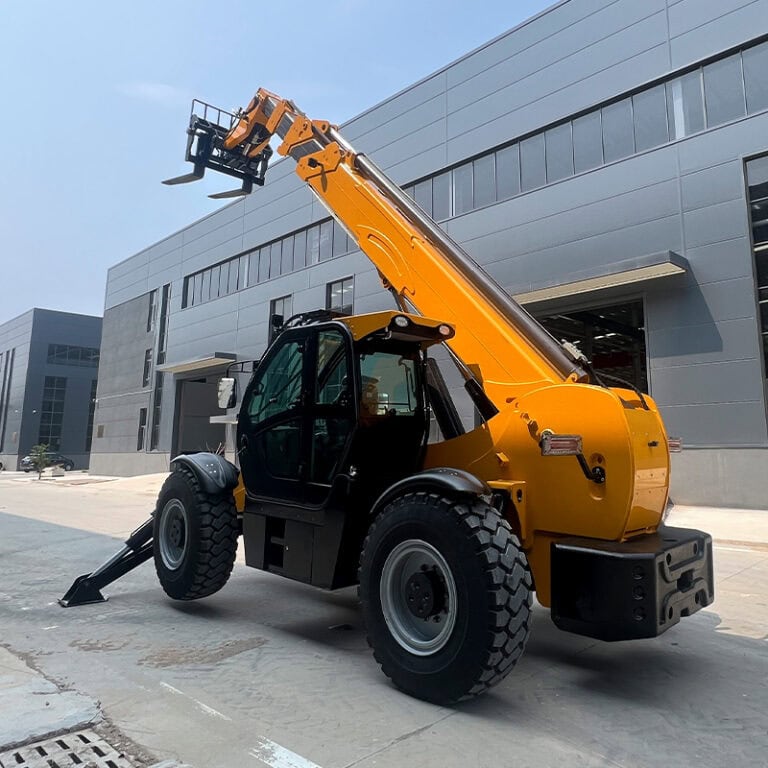

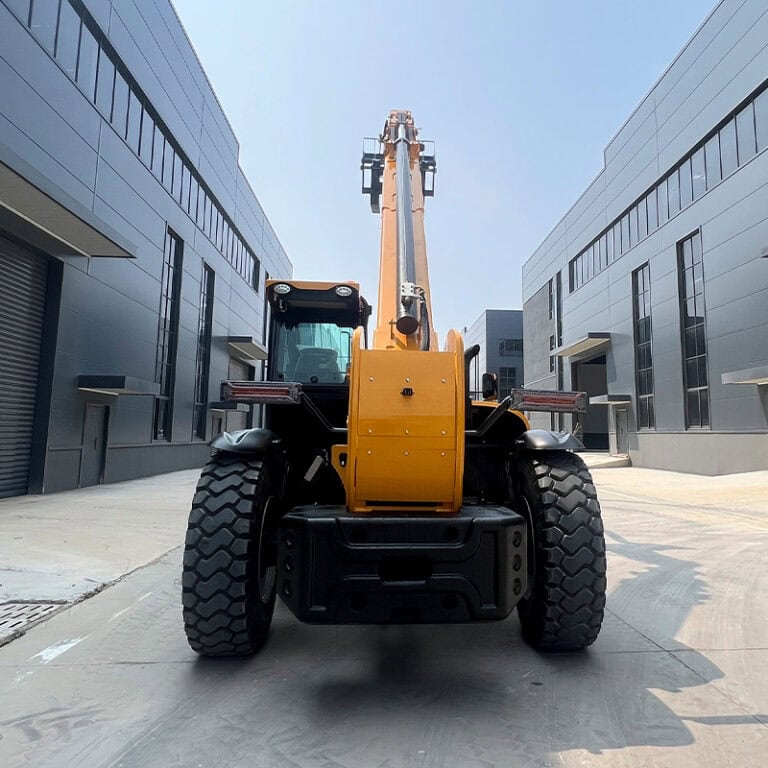

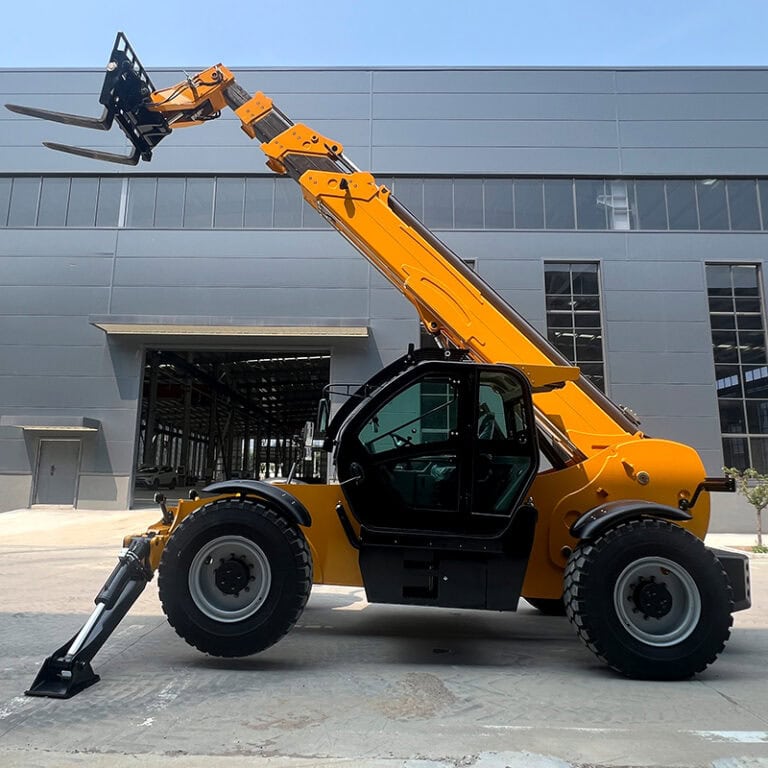

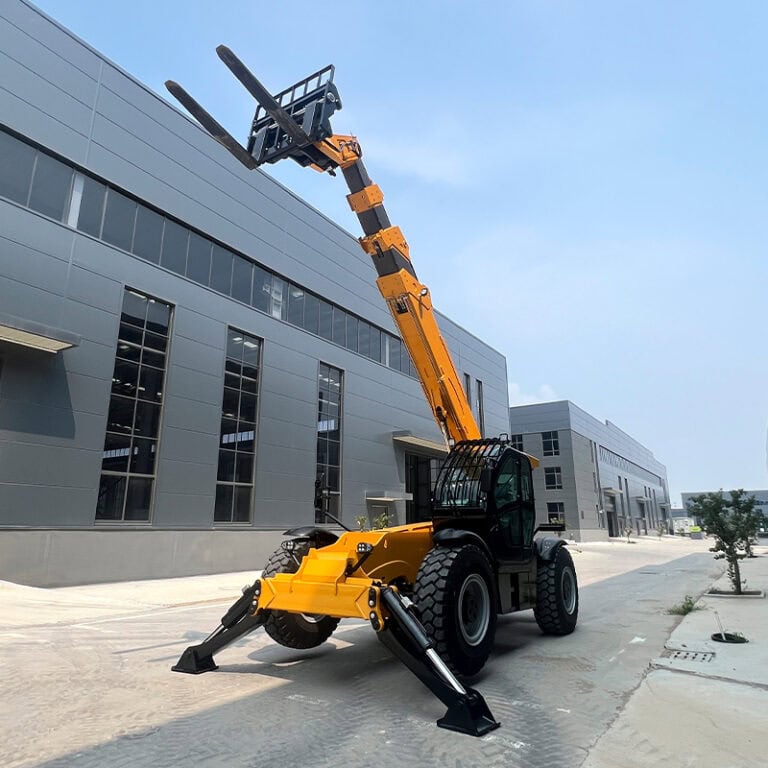

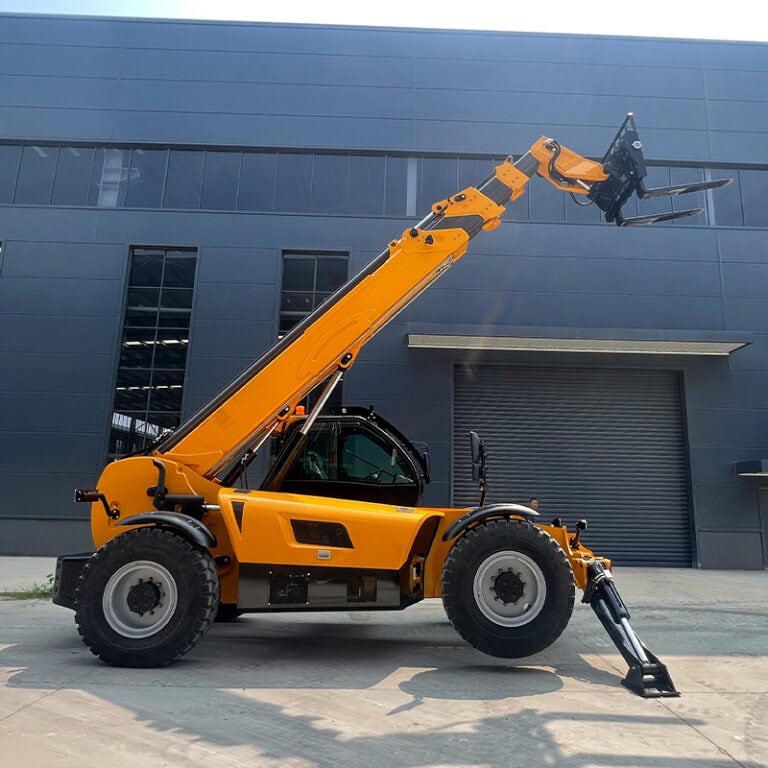

6 ton telehandler is powered by a 110 kW Yuchai Stage II engine and equipped with a heavy-duty 4F/4R transmission, electronic travel control, and a load-sensing hydraulic system with electro-proportional control for stable and efficient performance.

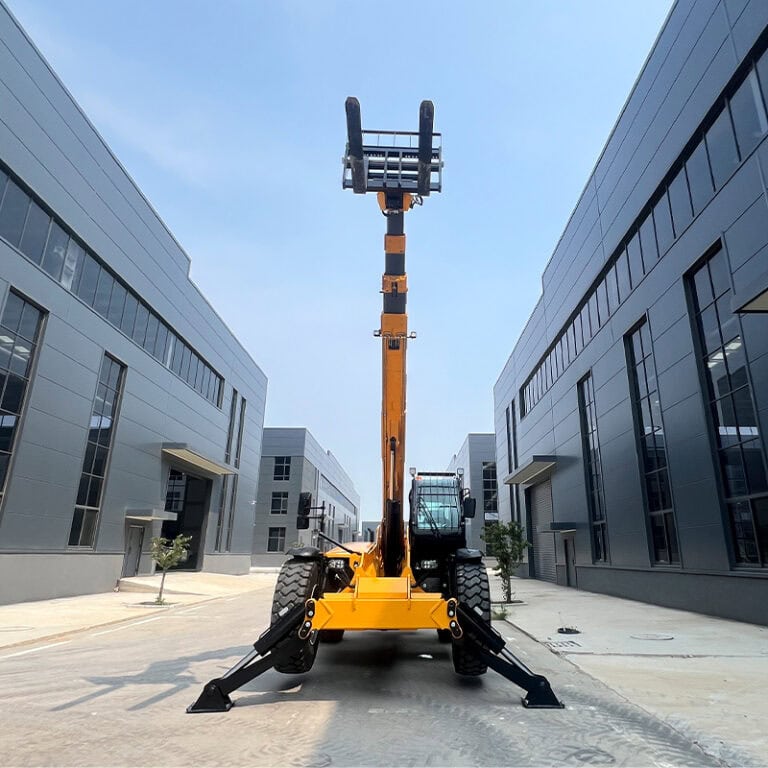

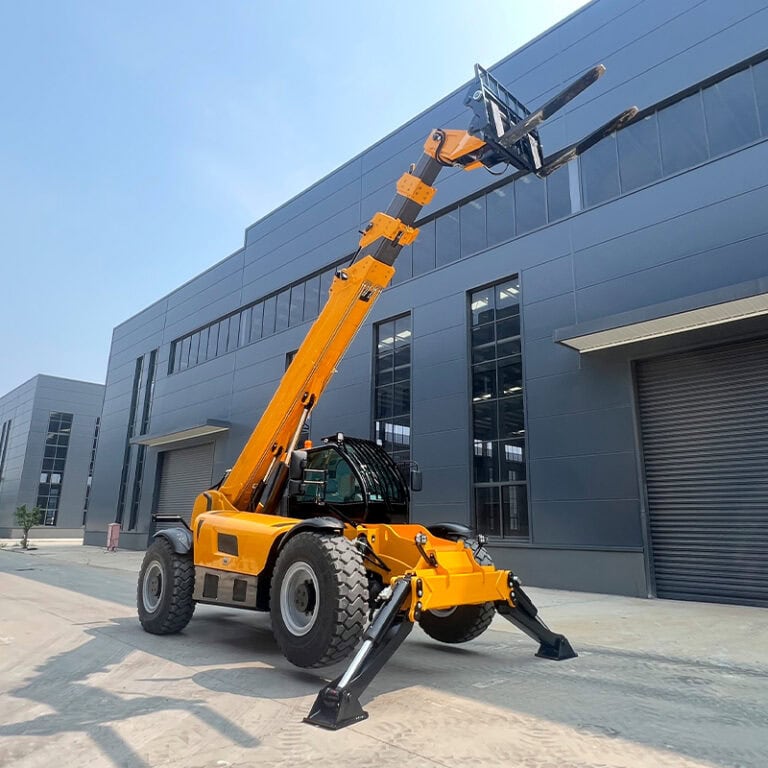

It features a 4-section telescopic boom made of BS1000 high-strength manganese steel, with a maximum lifting height of 17.3 meters and 1220 mm sliding forks. Hydraulic quick coupling, automatic fork leveling, frame tilt function, and outriggers provide flexible operation for different working conditions.
Built with a 355 manganese steel chassis, the machine comes with 4-wheel drive, 17.5-25 tubeless tires, and a wet brake axle with 20-ton axle load capacity. Front-wheel steering, four-wheel steering, and crab steering modes improve maneuverability on different job sites.
The luxury cab includes LED lights, a 10-inch display with reversing camera, Bluetooth, USB, and radio functions, plus rear and front-right cameras. It is also equipped with an electric heated seat, adjustable steering wheel, rear sliding window, and heating & cooling air conditioning.
For safety, the telehandler includes a torque limiting system, emergency stop system, reversing voice alarm, fire extinguisher, emergency escape hammer, towing hook, and cast iron counterweight.

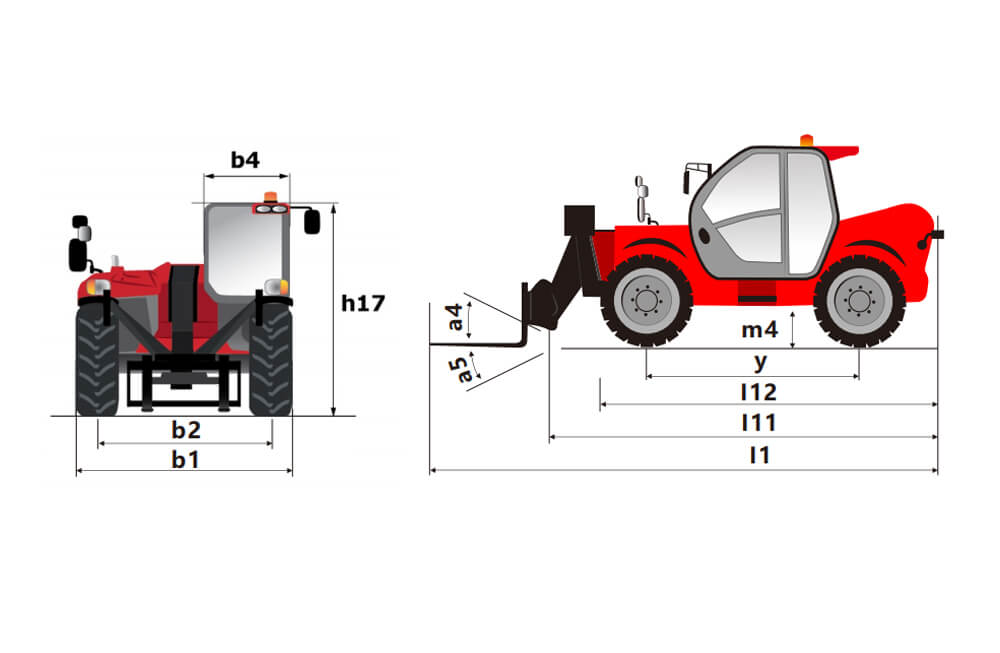

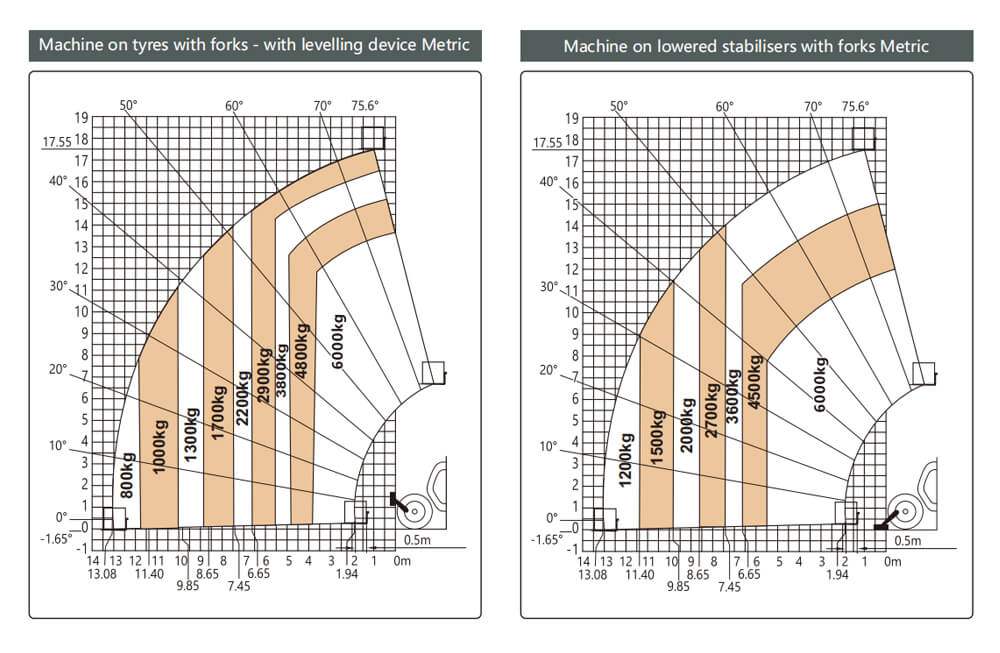

Hot Sale T6018 specification
Max. capacity | 6000 kg | Max. lifting height | 17.6 m | Max. outreach | 12 m |
Overall length to carriage | 6.9 m | Length to face of forks | 8.12 m | Min transport size | 6.4 m |
Overall width | 2.7 m | Track width | 2.3 m | Overall height | 2.76 m |
قاعدة العجلات | 3.6 m | Ground clearance | 0.5 m | Overall cab width | 0.84 m |
Tilt-up angle | 12° | Tilt-down angle | 90° | External turning radius | 4.1 m |
Unladen weight | 17000 kg | Tire type | Tubeless | Standard tires | 17.5-25 |
شوك | 1220 mm × 125 mm / 50 mm | Lifting | 35 s | Lowering | 35 s |
Extension | 29 s | Retraction | 17 s | Crowd | 9 s |
Dump | 9 s | Transmission type | Torque converter | Max. travel speed | 40 km/h |
المرفقات
Our telehandler can be equipped with a variety of customized attachments to suit different job requirements.
Fully Customizable
Custom telehandler Suits Your Projects
Our telehandlers offer flexible customization to suit different market needs and working conditions, including engine options, emission standards, and system upgrades.
- Engines (Cummins / Perkins / Fiat)
- Emission Standards (Euro III / Euro V / EPA Tier 4)
- Diesel heater
- ROPS certified cab (Roll-Over Protective Structure)
- Closed Hydrostatic System (Domestic system: travel pump + piston pump + travel motor / Danfoss system: travel pump + piston pump + travel motor)
China Top telehandler manufacturer
We are a professional telehandler manufacturer based in Shandong, China. The factory covers more than 6,000 square meters and is equipped with modern production workshops, advanced machinery, and efficient assembly lines. With a skilled technical team and solid manufacturing experience, the company has an annual production capacity of over 1,200 telehandlers. From product design and engineering to assembly, inspection, and export, each machine is produced under strict quality control to ensure reliable performance and durability for customers worldwide.
Most Popular Questions.
We have listed some questions you may ask. If you have more inquiries about the telehandlers, please send an inquiry to contact us.
Yuchai / Cummins / Perkins / Yanmar / Fiat / Kohler / YN
All machines are manufactured under ISO9001 quality management standards and certified with CE, SGS, and EAC to meet international market regulations.
Available attachments include pallet forks, buckets, work platforms, crane jibs, grabs, and winches, allowing multi-functional usage.
They are widely used in construction sites, farms, warehouses, ports, material handling yards, and high-altitude operations.
Our telehandlers offer load capacities ranging from 3 tons to 6 tons, suitable for construction, agriculture, warehousing, and industrial applications.
Yes. We offer technical support, spare parts supply, and professional after-sales guidance to ensure long-term machine performance and customer satisfaction.
Standard lifting heights range from 7 meters to 18 meters. Custom lifting heights can be provided based on project requirements.
