Description
Product Description

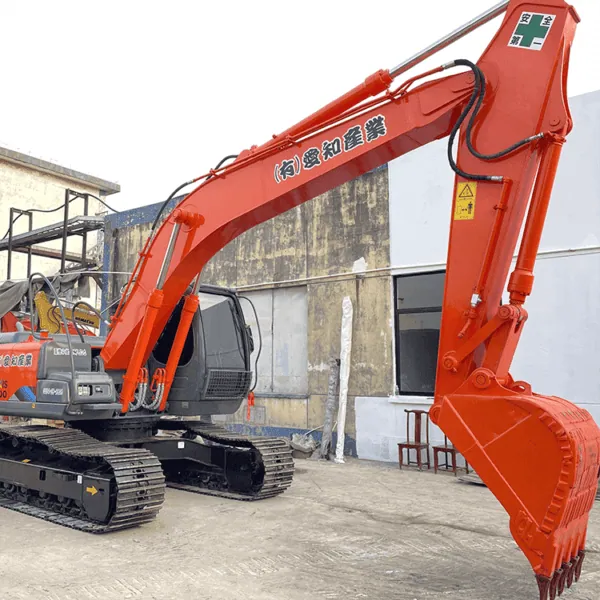

Experience the Power and Reliability of the Secondhand Hitachi ZX200 Excavator
The secondhand Hitachi ZX200 excavator is a perfect blend of advanced engineering and rugged design, ideal for a wide range of construction and excavation tasks. Celebrated for its strength, efficiency, and reliability, the used ZX200 delivers top-tier performance in any demanding environment.
Key Features:
- Isuzu Engine:Renowned for its power and fuel efficiency
- Hydraulic System:State-of-the-art hydraulics for superior control and precision
- Operator Comfort:Spacious, ergonomic cab designed for maximum comfort and visibility
- Durability:Built to withstand the toughest job site conditions
- Maintenance:Simplified maintenance procedures for reduced downtime
Specifications
In-Depth Specifications of the Hitachi ZX200:
| Specification | Details |
| Engine Model | Isuzu 4BG1-T |
| Operating Weight | 20,100 kg |
| Bucket Capacity | 0.80 m³ |
| Max Digging Depth | 6.68 m |
| Max Reach | 9.89 m |
| Overall Length | 9.44 m |
| Overall Width | 2.99 m |
| Overall Height | 3.02 m |
| Fuel Tank Capacity | 400 liters |
| Category | Specification |
|---|---|
| Boom/Stick Excavator Option 1 | |
| Max Cutting Height | 30 ft (9 m) |
| Max Digging Depth | 20 ft (6 m) |
| Max Loading Height | 21 ft (6 m) |
| Max Reach Along Ground | 30 ft (9 m) |
| Max Vertical Wall Digging Depth | 17 ft (5 m) |
| Shipping Height of Unit | 10 ft (3 m) |
| Shipping Length of Unit | 32 ft (10 m) |
| Boom/Stick Excavator Option 2 | |
| Max Cutting Height | 32 ft (10 m) |
| Max Digging Depth | 22 ft (7 m) |
| Max Loading Height | 22 ft (7 m) |
| Max Reach Along Ground | 32 ft (10 m) |
| Max Vertical Wall Digging Depth | 20 ft (6 m) |
| Shipping Height of Unit | 10 ft (3 m) |
| Shipping Length of Unit | 31 ft (10 m) |
| Boom/Stick Excavator Option 3 | |
| Max Cutting Height | 34 ft (10 m) |
| Max Digging Depth | 27 ft (8 m) |
| Max Loading Height | 24 ft (7 m) |
| Max Reach Along Ground | 37 ft (11 m) |
| Max Vertical Wall Digging Depth | 25 ft (8 m) |
| Shipping Height of Unit | 12 ft (4 m) |
| Shipping Length of Unit | 31 ft (9 m) |
| Bucket | |
| Maximum Bucket Capacity | 1 cu yd (1 cu m) |
| Minimum Bucket Capacity | 1 cu yd (1 cu m) |
| Reference Bucket Capacity | 1 cu yd (1 cu m) |
| Dimensions | |
| Ground Clearance | 2 ft (0 m) |
| Height – Top of Cab | 10 ft (3 m) |
| Length of Track on Ground | 11 ft (3 m) |
| Removal Counterweight Clearance | 3 ft (1 m) |
| Tail Swing Radius | 9 ft (3 m) |
| Width to Outside of Tracks | 9 ft (3 m) |
| Engine | |
| Aspiration | turbocharged, intercooled |
| Displacement | 396 cu in (6,494 cu cm) |
| Engine Model | AA-6BGIT |
| Max Torque | 406 lbs ft (550 nm) |
| Net Power | 147 hp (110 kw) |
| Power Measured @ | 2100 rpm |
| Torque Measured @ | 1600 rpm |
| Operating Specifications | |
| Alternator Supplied Amperage | 50 amps |
| Cooling System Fluid Capacity | 6 gal (23 l) |
| Engine Oil Capacity | 7 gal (25 l) |
| Fuel Capacity | 95 gal (360 l) |
| Hydraulic Pump Flow Capacity | 103 gpm (388 lpm) |
| Hydraulic System Fluid Capacity | 53 gal (200 l) |
| Hydraulic System Relief Valve Pressure | 4980 psi |
| Operating Voltage | 24 volts |
| Operating Weight | 42,770 lbs (19,400 kg) |
| Swing Drive Fluid Capacity | 2 gal (6 l) |
| Swing Mechanism | |
| Swing Speed | 13.3 rpm |
| Undercarriage | |
| Ground Pressure | 6.3 psi |
| Max Travel Speed | 4 mph (6 kph) |
| Number of Carrier Rollers per Side | 2 |
| Number of Shoes per Side | 46 |
| Number of Track Rollers per Side | 7 |
| Shoe Size | 24 in (60 cm) |
| Track Gauge | 7 ft (2 m) |
Advantages of Buying a Used Excavator
Why Opt for a Secondhand Hitachi ZX200 Excavator?
- Cost Savings:Substantial savings compared to new equipment, with no compromise on quality.
- Value Retention:Slower depreciation rates ensure better long-term value.
- Immediate Availability:Quickly get the equipment you need without long lead times.
- Reliability:Proven performance and dependability of a well-maintained used machine.
- Sustainability:Extend the lifecycle of construction equipment and support environmental sustainability.
Additional Information
Inspection and Maintenance Records:
Our secondhand Hitachi ZX200 used excavator come with thorough inspection and maintenance records, ensuring transparency and confidence in your purchase. Each unit is meticulously maintained to guarantee optimal performance.
Financing and Shipping Options:
Flexible financing solutions are available to accommodate various budgetary needs. Our efficient global shipping network ensures your equipment arrives safely and on time, no matter your location.
Ready to Enhance Your Operations with a Secondhand Hitachi ZX200 Excavator?
Contact us today to learn more about this outstanding machine and how it can benefit your projects. Fill out the inquiry form , and one of our representatives will respond promptly.
