Description
Product Overview

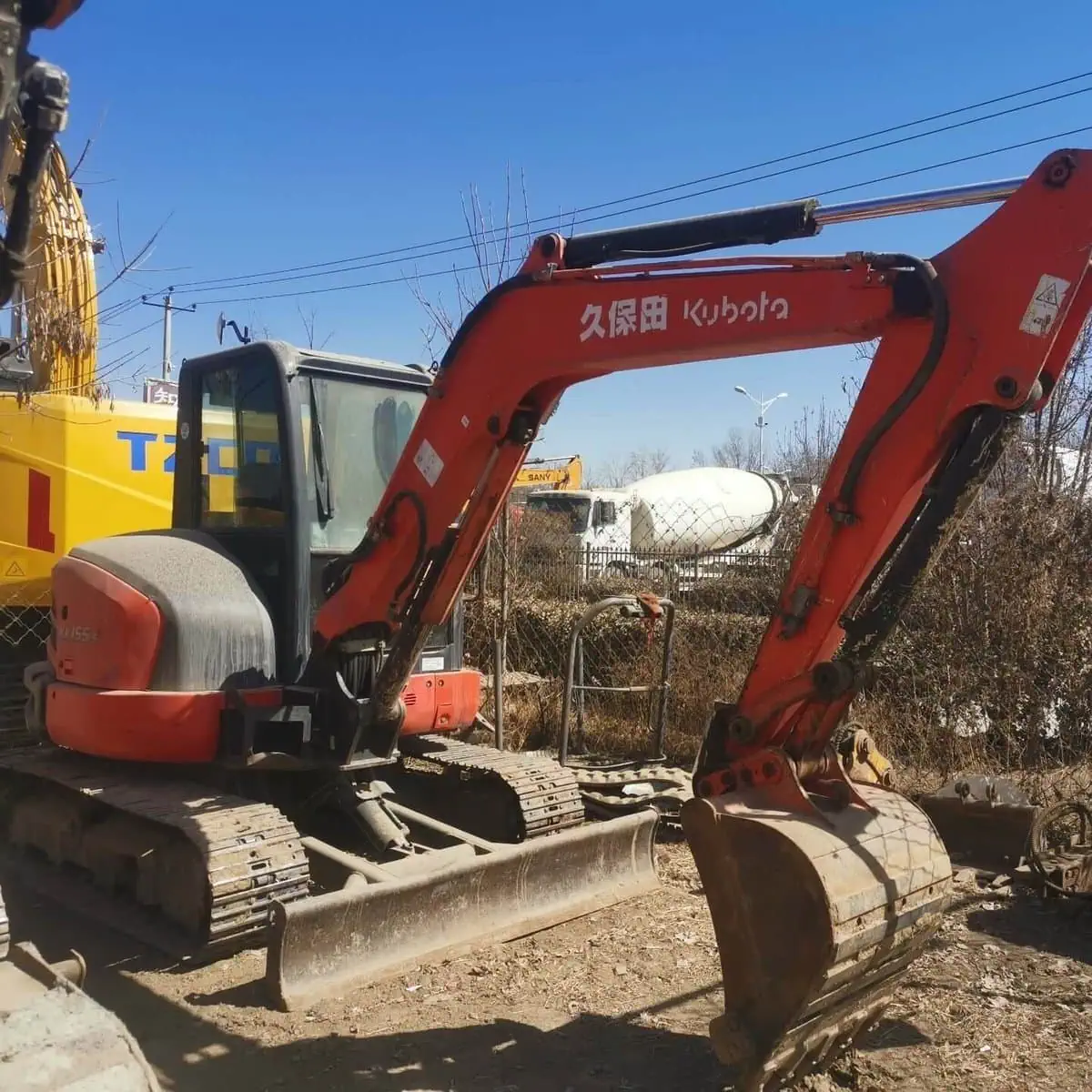

Enhance Your Operations with the Kubota KX155-5 Mini Excavator
The Kubota KX155-5 excavator is designed to deliver exceptional performance and reliability for a variety of construction and excavation tasks. Its compact design and advanced features ensure efficiency and longevity on any job site.
High-Power, Energy-Efficient, and Environmentally Friendly Engine
Kubota stands out as one of the few manufacturers with a century of experience and technology in independently researching and producing engines. In the field of small industrial diesel engines (below 100 horsepower), Kubota’s dominant position has always remained unshakable.
The KX155-5 mini excavator features the V2403-M-DI-E3 engine, boasting a rated output power of up to 40 horsepower (29.2 kW) and a displacement of 2434 cubic centimeters. This powerful output, combined with Kubota’s unique load-sensing hydraulic system, ensures the KX155-5’s strong operational power, meeting the demands of various harsh working conditions. It can easily start even on cold mornings and maintains low noise levels and fuel economy.
Load-Sensing Hydraulic System
The KX155-5 is equipped with Kubota’s acclaimed load-sensing hydraulic system. This system allocates the required hydraulic oil flow based solely on the magnitude of the control lever’s movement, regardless of the load size, allowing for easy operation according to the operator’s intentions. Additionally, due to the small engine load, unnecessary loss of flow can be avoided, enabling various micro-movement operations and compound operations.

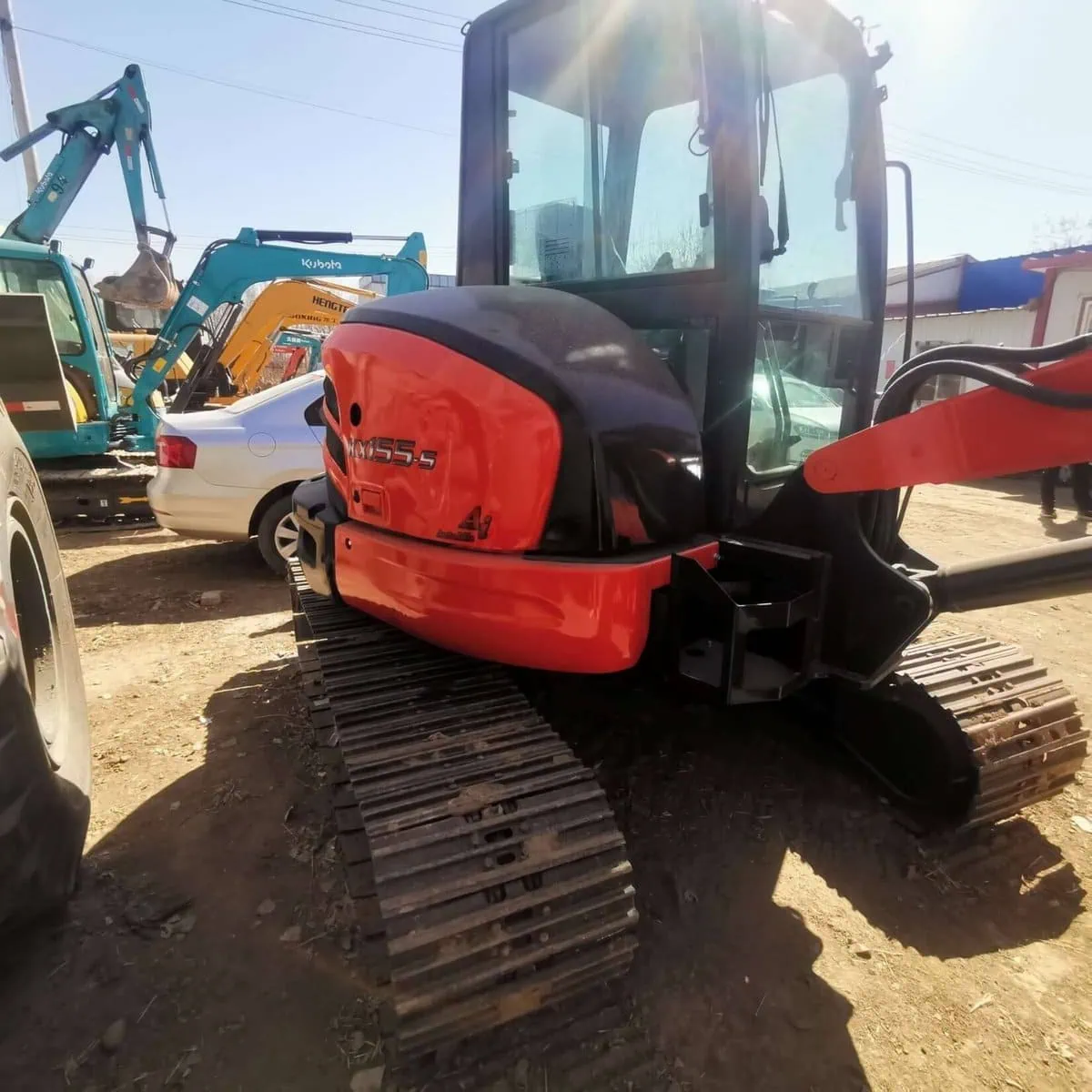

Zero Tail Swing
The KX155-5 features a zero-tail swing structure, with the rear of the upper body protruding only 80mm when rotating, allowing it to operate freely even in narrow spaces.
Automatic Idle Speed for Fuel Efficiency
After the control lever has been idle for 4 seconds, the engine automatically switches to idle operation. When the control lever is operated again, the engine immediately returns to its original speed. This feature helps reduce fuel consumption and overall noise levels, allowing for safe operation even in urban areas and at night.
Eco Mode
Equipped with the latest Eco mode, simply press the Eco button, and the engine speed will be automatically set to the economical speed. Operating in Eco mode can significantly save fuel costs compared to operating at maximum speed.
Large Fuel Tank
Responding to the practical needs of Chinese customers, the KX155-5 mini excavator is specially equipped with a 100-liter large-capacity fuel tank. This large fuel tank reduces the frequency of refueling on-site, making it convenient for owners and improving work efficiency.
Centralized Greasing
The KX155-5 mini excavator consolidates the grease filling points around the front working device on the right side, reducing the operator’s workload and preventing the inadvertent omission of grease filling points.
TOPS/FOPS Cab
Adopts a TOPS/FOPS cab (with safety belt) that complies with national standards, enhancing the safety of operators.
Accumulator
Ensures that the working device can be lowered to the ground even in abnormal shutdown situations, greatly protecting the safety of operators and inspectors.
Front Instrument Panel
The instrument panel is adjusted from the original right position to the front, tilted upwards, simple and clear, and easy to observe.
Simple and Easy Maintenance
The KX155-5 mini excavator adopts a fully open engine hood, with maintenance positions concentrated on the rear and right side. Maintenance positions related to the engine are all concentrated on the rear side.
Key Features
- Powerful Engine: Kubota V2403-CR-TE5 engine provides high performance and fuel efficiency.
- Advanced Hydraulics: Delivers smooth and precise operations for various applications.
- Operator Comfort: Spacious, ergonomically designed cab for enhanced comfort and visibility.
- Compact Design: Ideal for tight spaces and urban construction projects.
- Easy Maintenance: Simplified maintenance processes to minimize downtime.
Detailed Specifications
| Category | Specification | Details |
|---|---|---|
| Engine | Model | Kubota V2403-CR-TE5 |
| Type | 4-cylinder, water-cooled, turbocharged | |
| Rated Power | 36.5 kW (49 HP) @ 2,200 rpm | |
| Displacement | 2.4 liters | |
| Operating Weight | 5,630 kg | |
| Hydraulic System | Main Pumps | 2 variable displacement axial piston pumps |
| Max Flow | 2 x 60 liters/min | |
| Relief Valve Settings – Implement | 24.5 MPa | |
| Relief Valve Settings – Travel | 24.5 MPa | |
| Relief Valve Settings – Swing | 19.6 MPa | |
| Swing System | Swing Speed | 9.4 rpm |
| Swing Torque | 16.0 kNm | |
| Travel System | Travel Speed (High) | 4.8 km/h |
| Travel Speed (Low) | 2.6 km/h | |
| Drawbar Pull | 50.0 kN | |
| Gradeability | 70% (35°) | |
| Dimensions | Overall Length | 5.70 m |
| Overall Width | 1.98 m | |
| Overall Height | 2.54 m | |
| Tail Swing Radius | 1.20 m | |
| Ground Clearance | 0.36 m | |
| Track Length on Ground | 2.20 m | |
| Working Range | Max Digging Depth | 3.80 m |
| Max Reach at Ground Level | 6.00 m | |
| Max Dumping Height | 4.00 m | |
| Min Swing Radius | 2.50 m | |
| Capacities | Fuel Tank | 90 liters |
| Hydraulic System | 60 liters | |
| Engine Oil | 12 liters | |
| Swing Drive | 1.3 liters | |
| Travel Device | 2 x 2.3 liters |
Advantages of Buying a Used Excavator
Cost-Effective and Reliable
- Significant Savings: Cost-effective compared to new equipment, with no compromise on quality.
- Value Retention: Slower depreciation for better long-term value.
- Immediate Availability: Quick acquisition without the wait times of new machinery.
- Proven Performance: Dependable performance from a well-maintained machine.
- Eco-Friendly: Extending the lifecycle of equipment supports environmental sustainability.
Additional Information
Inspection and Maintenance
Our used machines, including the used Kubota KX155-5 mini excavator, come with comprehensive inspection and maintenance records to ensure excellent working condition and readiness for your toughest projects.
Financing and Shipping
We offer flexible financing options to fit various budgets. Our efficient global shipping network ensures safe and prompt delivery of your equipment, no matter where you are.
Contact Us
Ready to Invest in a Quality Used Kubota KX155-5 Excavator?
Reach out to us today to learn more about this exceptional machine and how it can benefit your projects. Fill out the inquiry form , and one of our representatives will get back to you promptly.
