Description

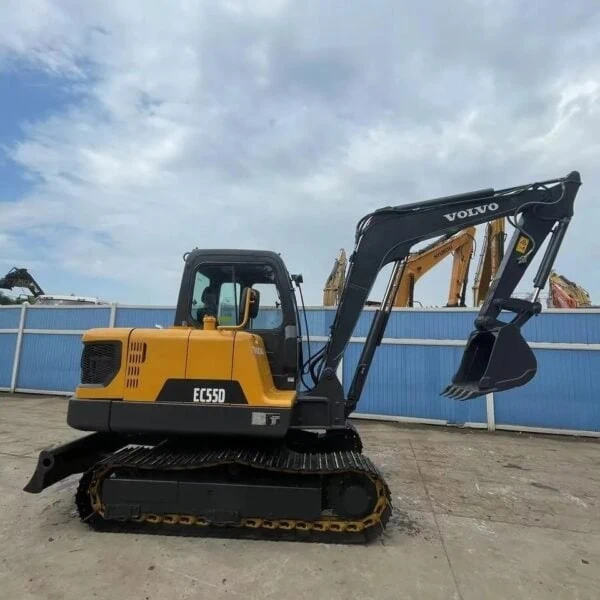

Used Volvo EC55D second-hand excavator is a compact excavator known for its versatility and efficiency in various construction and excavation tasks. Here are the general specifications for the Used Volvo EC55D:
General Information
- Model: EC55D
- Type: Compact Excavator
Engine
- Engine Make: Yanmar
- Engine Model: 4TNV94L
- Gross Power: 50.7 hp (37.8 kW)
- Net Power: 49.9 hp (37.2 kW)
- Displacement: 2.2 liters
Operational
- Operating Weight: 11,698 lbs (5305 kg)
- Fuel Capacity: 21.9 gallons (83 liters)
- Hydraulic System Fluid Capacity: 27.9 gallons (106 liters)
Performance
- Travel Speed – High: 2.8 mph (4.5 km/h)
- Travel Speed – Low: 1.6 mph (2.6 km/h)
- Drawbar Pull: 11,240 lbs (50 kN)
- Arm Breakout Force: 5,210 lbs (23.2 kN)
- Bucket Breakout Force: 9,320 lbs (41.5 kN)
Dimensions
- Overall Length: 18.4 ft (5.6 m)
- Overall Width: 6.6 ft (2 m)
- Overall Height: 8.3 ft (2.53 m)
- Tail Swing Radius: 5.1 ft (1.55 m)
- Ground Clearance: 1.1 ft (0.34 m)
Digging Depth and Reach
- Max Digging Depth: 12.5 ft (3.8 m)
- Max Reach at Ground Level: 20.3 ft (6.2 m)
- Max Dumping Height: 13.5 ft (4.1 m)
Blade
- Blade Width: 6.6 ft (2 m)
- Blade Height: 1.4 ft (0.41 m)
These specifications make the EC55D a reliable choice for various medium-duty excavation tasks, offering a good balance between power, efficiency, and maneuverability.
| Category | Specification |
|---|---|
| General Information | |
| Model | EC55D |
| Type | Compact Excavator |
| Engine | |
| Engine Make | Yanmar |
| Engine Model | 4TNV94L |
| Gross Power | 50.7 hp (37.8 kW) |
| Net Power | 49.9 hp (37.2 kW) |
| Displacement | 2.2 liters |
| Operational | |
| Operating Weight | 11,698 lbs (5305 kg) |
| Fuel Capacity | 21.9 gallons (83 liters) |
| Hydraulic System Fluid Capacity | 27.9 gallons (106 liters) |
| Performance | |
| Travel Speed – High | 2.8 mph (4.5 km/h) |
| Travel Speed – Low | 1.6 mph (2.6 km/h) |
| Drawbar Pull | 11,240 lbs (50 kN) |
| Arm Breakout Force | 5,210 lbs (23.2 kN) |
| Bucket Breakout Force | 9,320 lbs (41.5 kN) |
| Dimensions | |
| Overall Length | 18.4 ft (5.6 m) |
| Overall Width | 6.6 ft (2 m) |
| Overall Height | 8.3 ft (2.53 m) |
| Tail Swing Radius | 5.1 ft (1.55 m) |
| Ground Clearance | 1.1 ft (0.34 m) |
| Digging Depth and Reach | |
| Max Digging Depth | 12.5 ft (3.8 m) |
| Max Reach at Ground Level | 20.3 ft (6.2 m) |
| Max Dumping Height | 13.5 ft (4.1 m) |
| Blade | |
| Blade Width | 6.6 ft (2 m) |
| Blade Height | 1.4 ft (0.41 m) |
Here are the main reasons for buying an used excavator:
- Cost savings: Used excavators are typically much more affordable compared to brand new models, allowing significant savings on the initial investment.
- Bettervalue: Well-maintained used excavators have already proven their performance and functionality, offering better value for the money compared to brand new machines.
- Temporary needs: Some users only require an excavator for a short-term project. Buying a used model can meet this temporary need without the waste of a brand new machine.
- Lower depreciation costs: The depreciation on a used excavator is much lower, helping to control the overall lifetime ownership costs.
- Equipment upgrades: Some users prefer to regularly upgrade their equipment. Buying used allows them to do so without the full financial burden of a brand new machine.
- Lower maintenance costs: Repair and maintenance costs are generally lower for used excavators, making them more economical to operate in the long run.
In summary, purchasing a used excavator can help users achieve a better balance in terms of costs, performance, and usage needs. It is a practical and economical choice, but requires careful evaluation of the machine’s condition and sourcing from reliable suppliers.
Please contact us to talk further about the current available used excavator EC55D.
